JX3-SS 3,000 lb Side Mount Drill Jack

$399.00; $399.00
Unit price: per

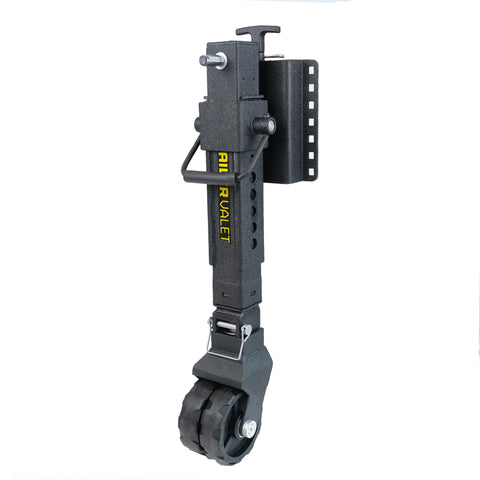

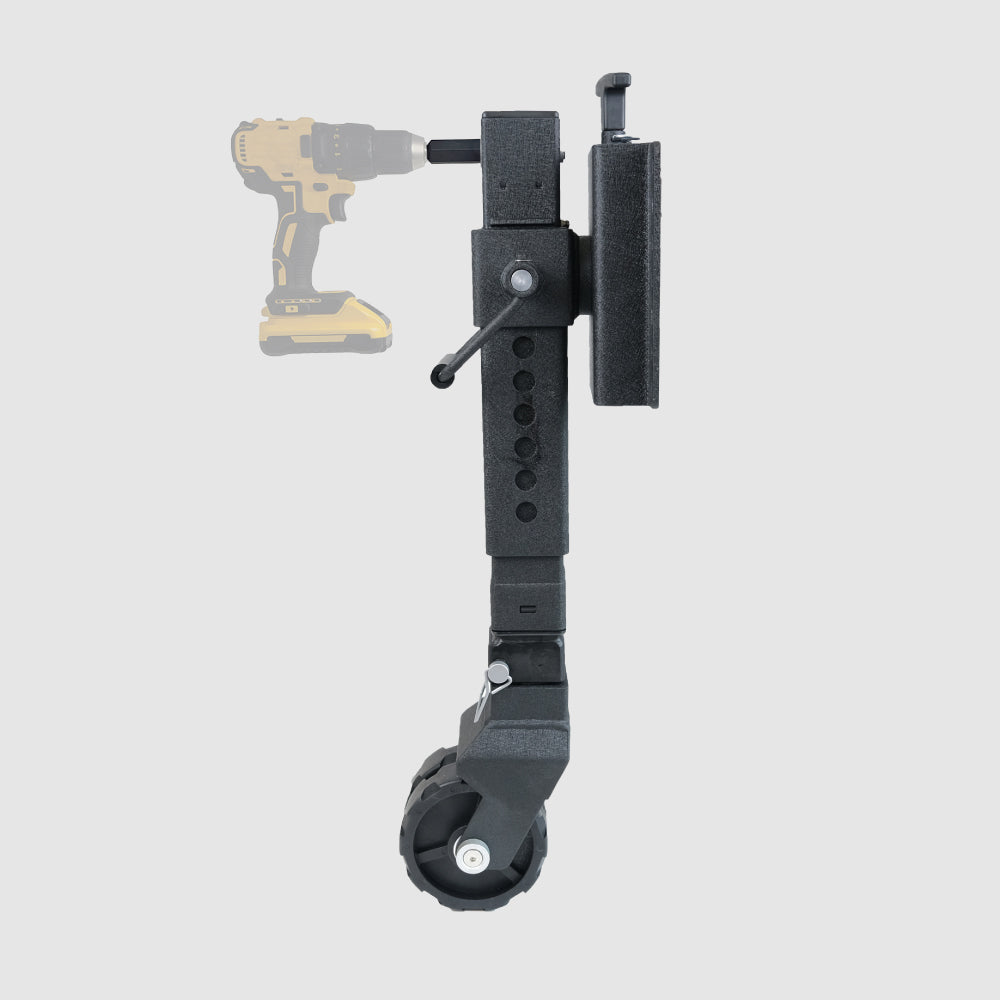

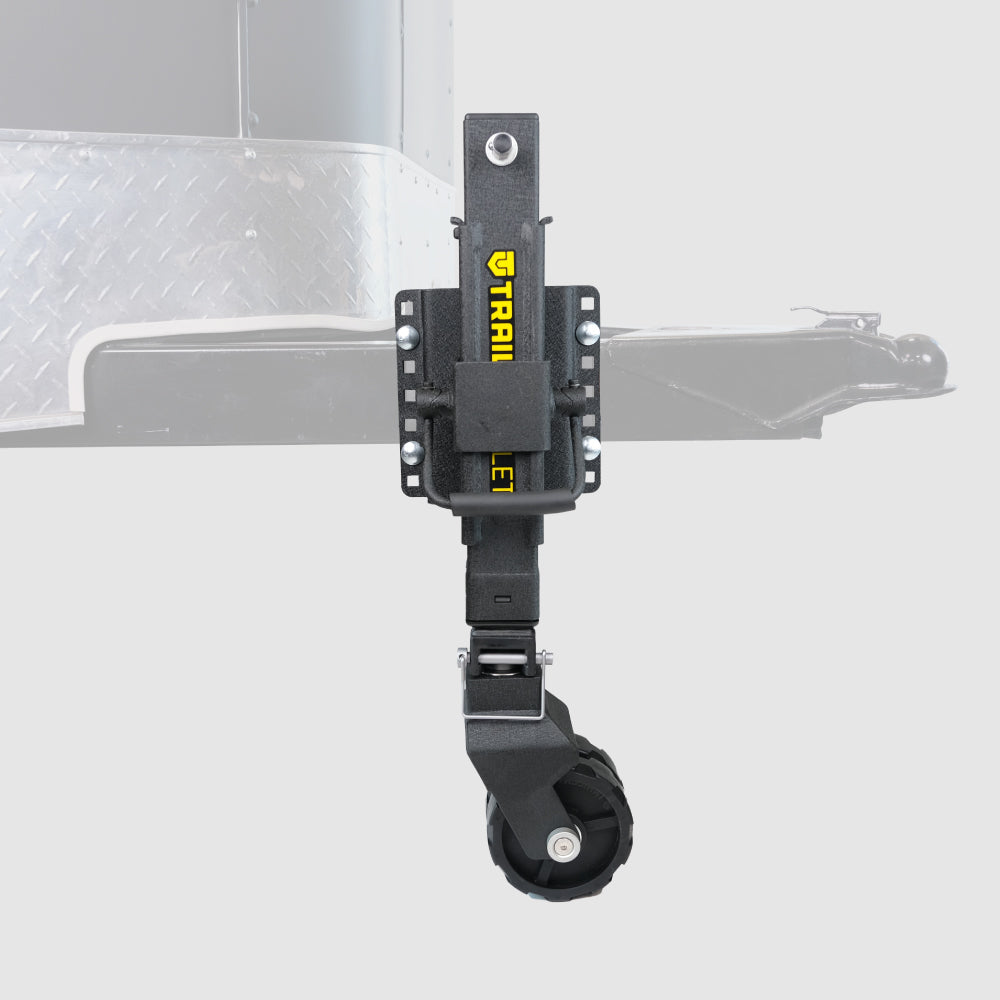

The Trailer Valet JX 3-Squared Drill Jack is the ultimate heavy-duty jack, engineered for marine and overland enthusiasts. Featuring a unique dual-pin handle, quick drop functionality, a custom independent dual-wheel design, and drill-powered operation, it redefines versatility and ease of movement. Built to endure, with a sleek, rugged look, this jack is your go-to for towing, launching, and beyond.

Free Delivery

Buy Now, Pay Later

3-Year Warranty

Top Features

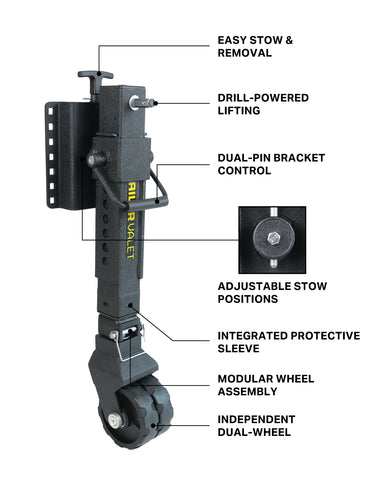

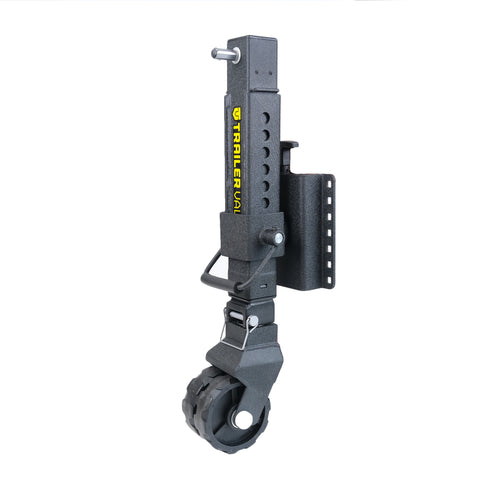

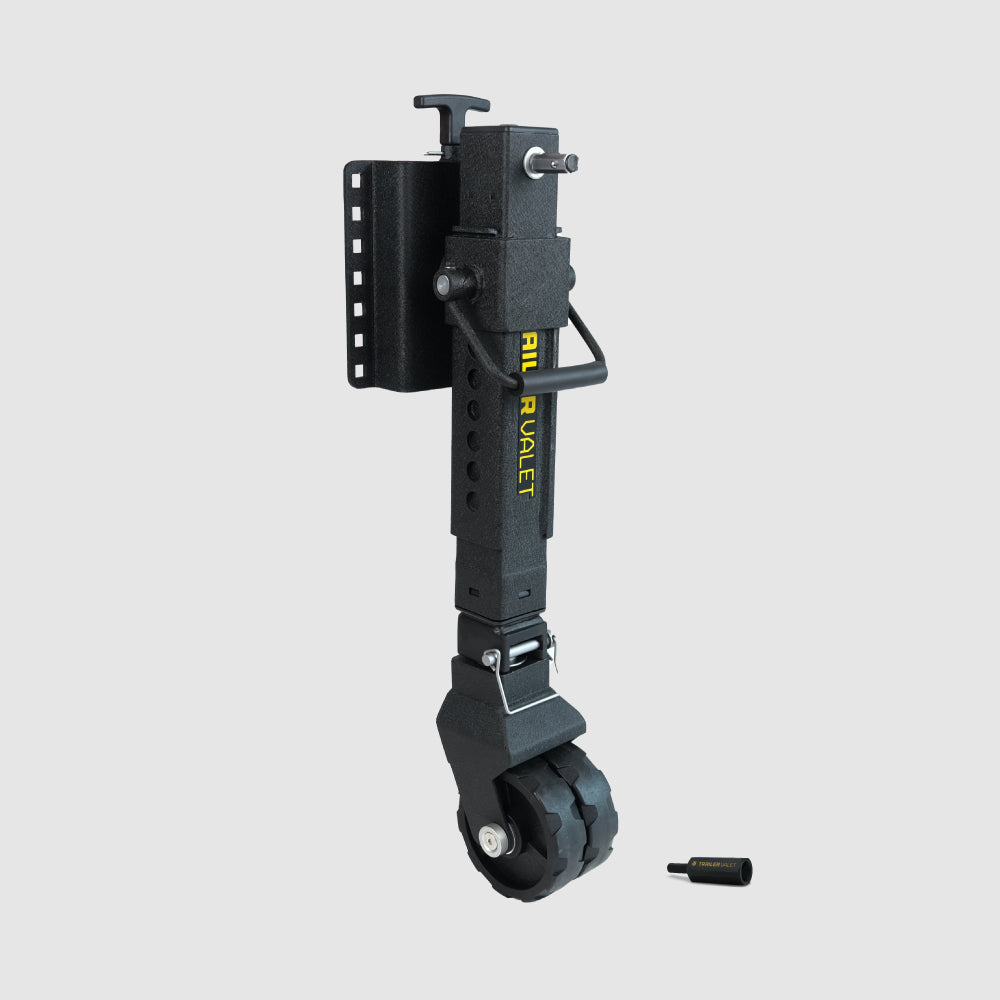

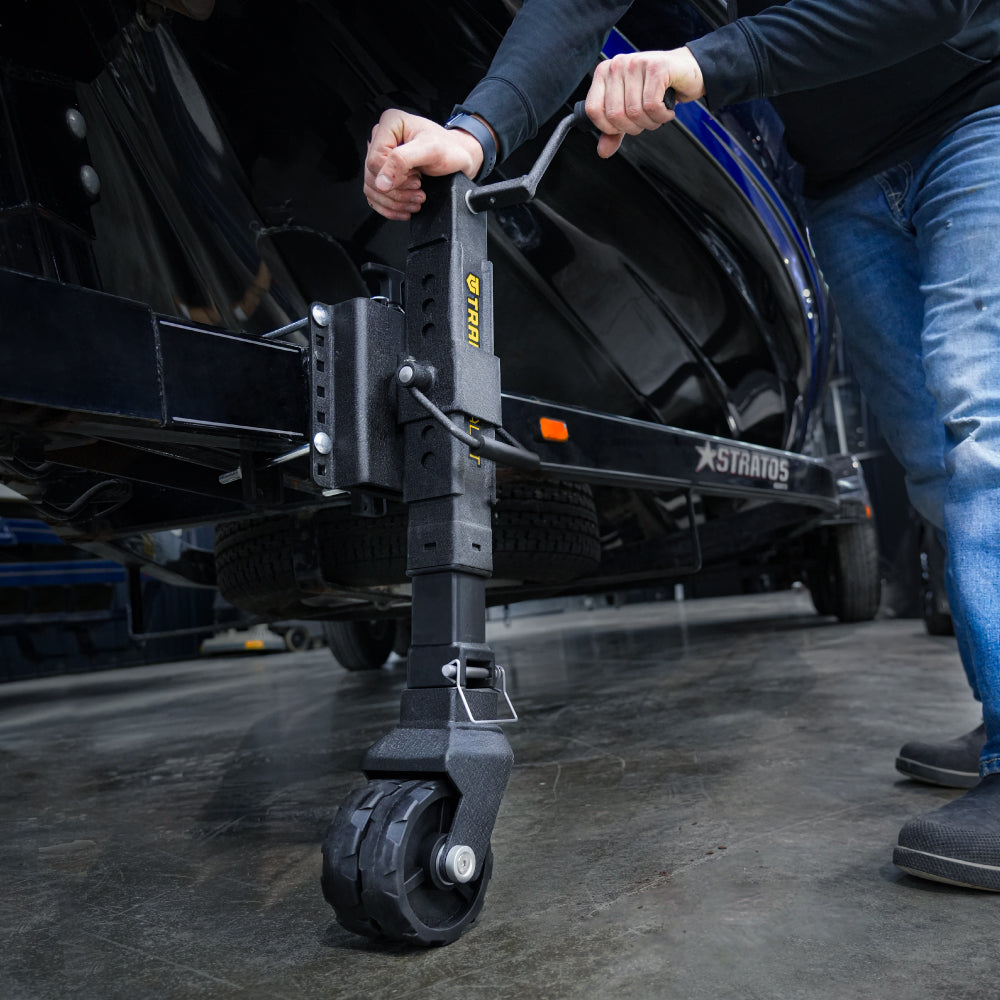

Featuring a dual-pin handle, quick-drop lift, and independent dual wheels, the JX 3-Squared jack offers smooth movement, easy adjustment, and versatile stow options for any terrain.

Built for strength, this jack supports up to 3,000 lbs, features a durable 6:7 gear ratio, corrosion-resistant coating, drill-powered operation, and future MV Series compatibility.

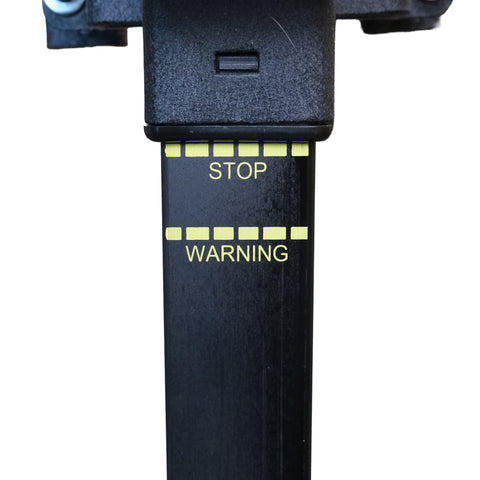

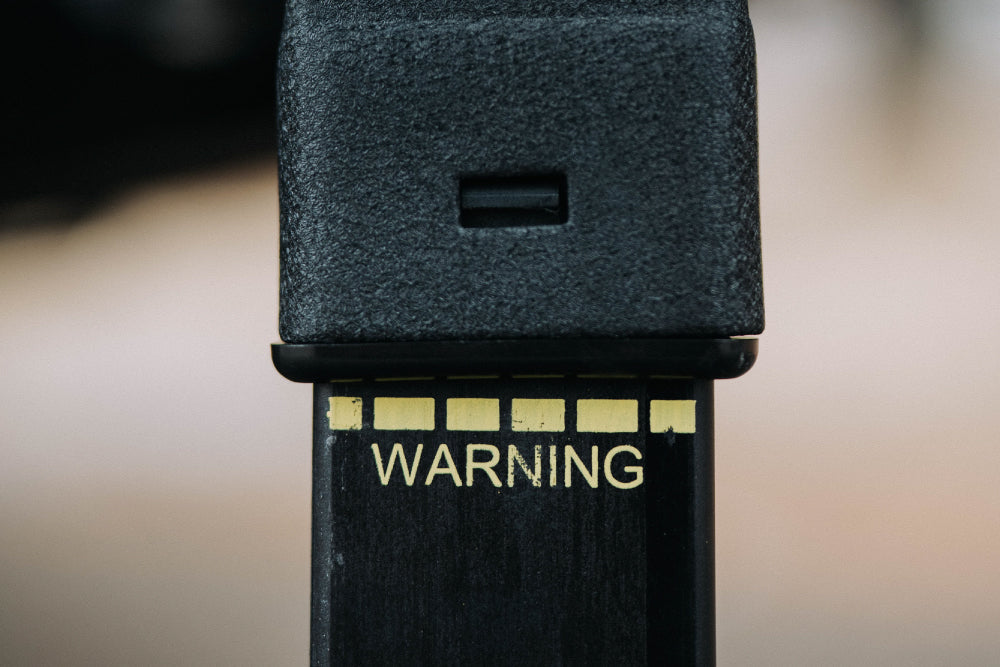

The JX Series features built-in Warning and Stop indicators on the inner tube to prevent over-extension, helping protect your equipment and extend the jack’s lifespan.

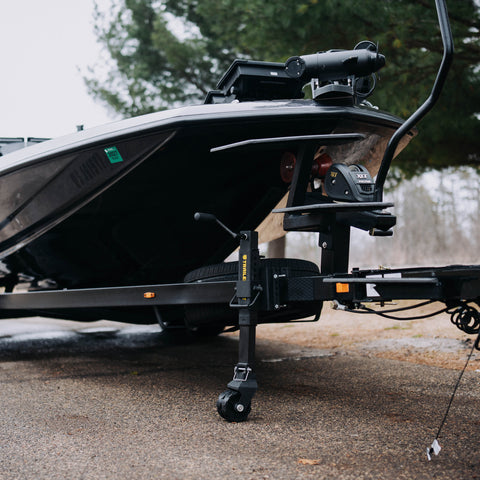

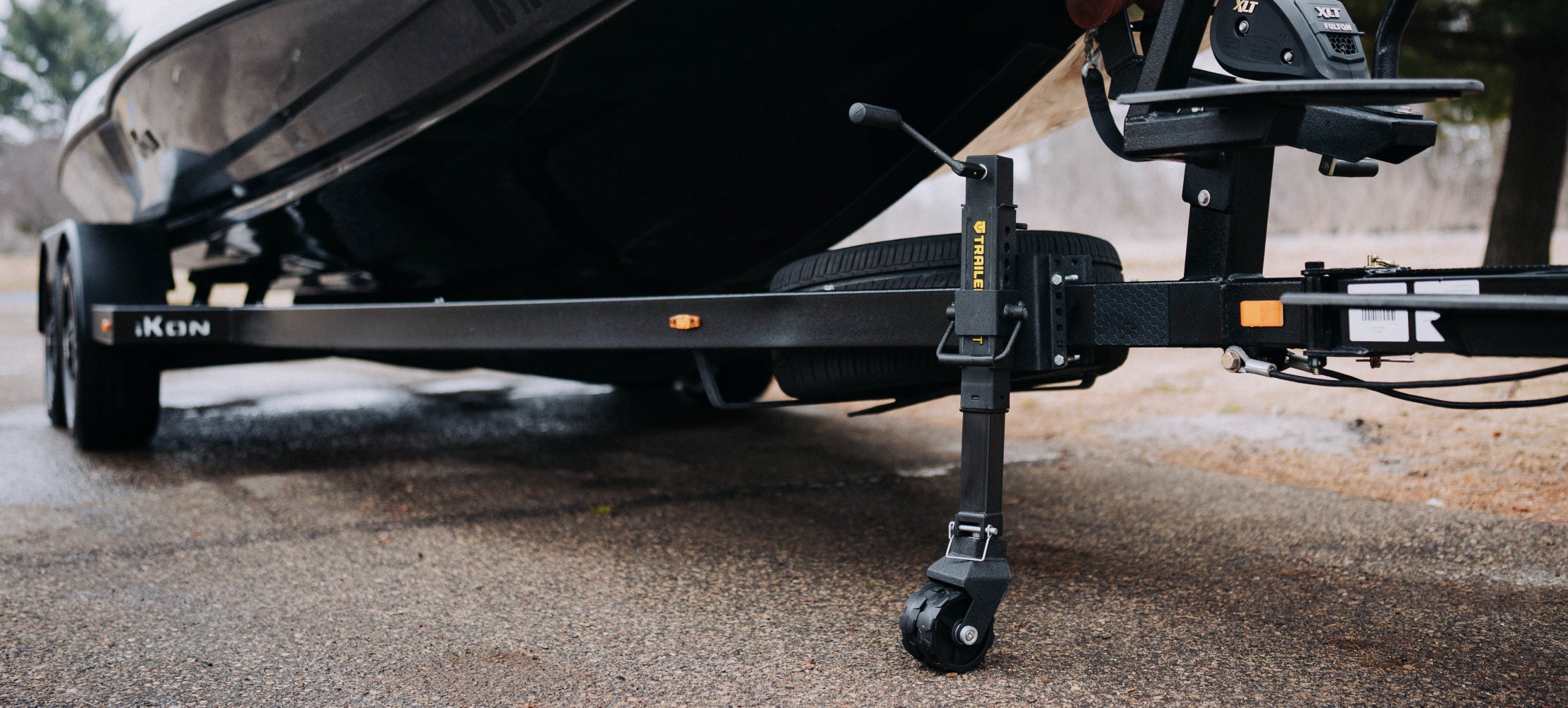

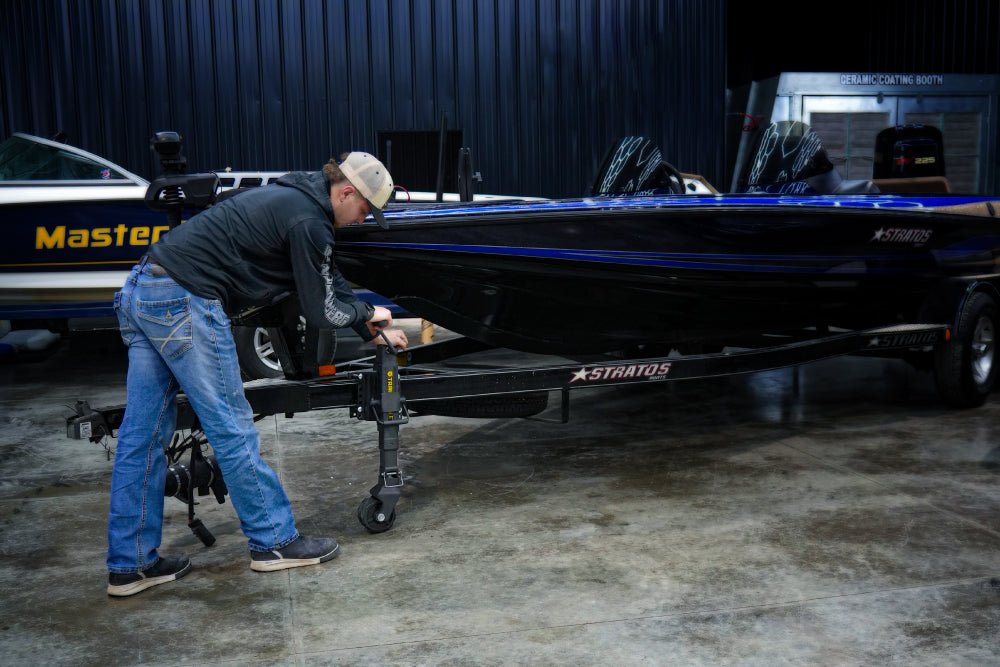

Built for marine, overland, and adventure, the JX 3-Squared delivers premium features, rugged style, and confident performance on any terrain.

Shop JX3-SS

TECH SPECS

Specifications
Dynamic Lift Capacity with hand crank Lbs: 1500

Dynamic Lift Capacity with Drill attachment and Drill Lbs: 750

Static Tongue Weight lbs: 3000

Mounting Type: Side

Item Net Weight lbs: 28

Warranty: 1 Year Manufacturers Limited Warranty

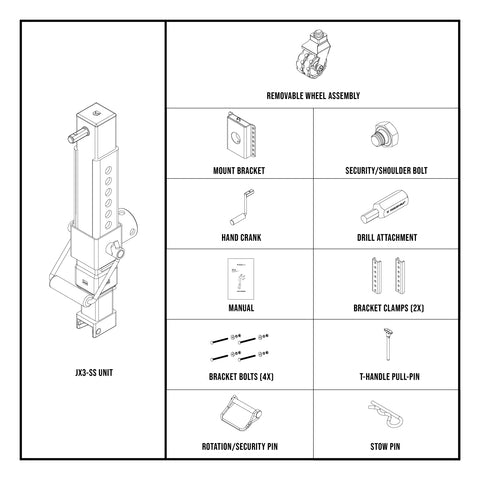

Includes: Jack with Drop Handle, Crank Handle, Bracket and Hardware, Wheel Assembly, Trailer Valet Drill Attachment, Rotation Pin, and Cotter Pin

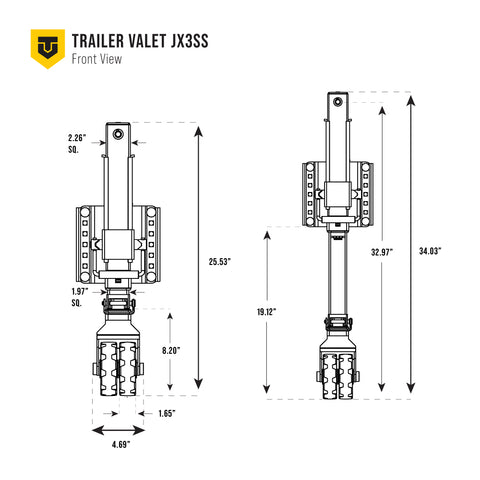

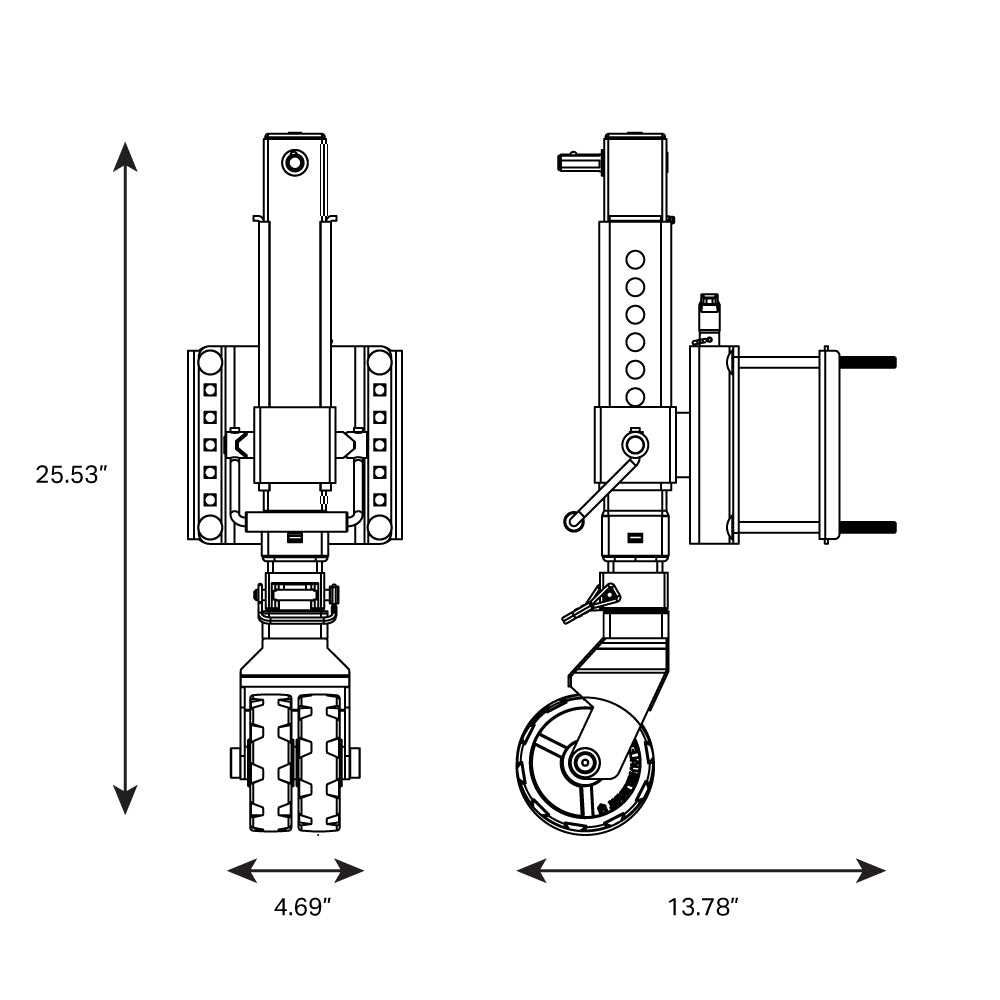

Dimensions

Item Height: 25.3 inches

Item Width: 7 inches

Item Depth: 8 inches

Downloads
JX3 - SS Manual

JX3 - SS Quickstart Guide

FAQ

HAVE A QUESTION?

You know how they say there's no such thing as a dumb question? Well, they were wrong, but here are some common not-so-dumb ones. Still flummoxed? Contact our customer support.

What is the weight capacity of the JX 3-Squared Drill Jack?

The JX 3-Squared supports 3,000 lbs static capacity and 1,500 lbs dynamic lifting capacity, making it ideal for heavy-duty use.

What type of trailers is the JX 3-Squared compatible with?

It’s ideal for boats, campers, utility trailers, and cargo trailers that require stable lifting and positioning.

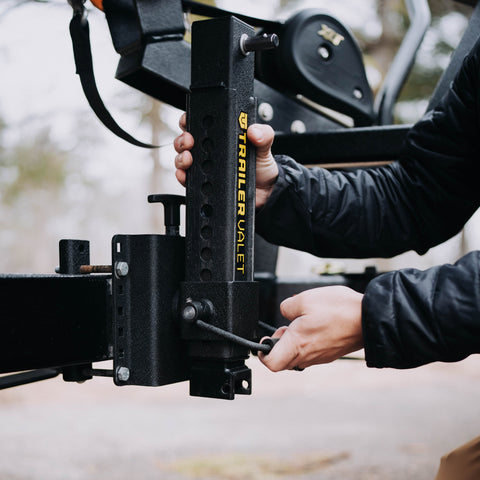

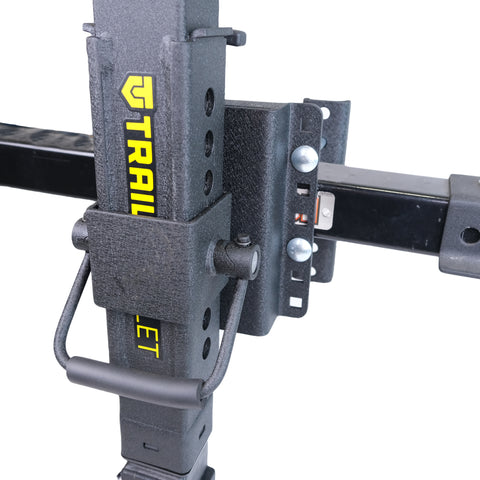

How does the JX 3-Squared attach to the trailer?

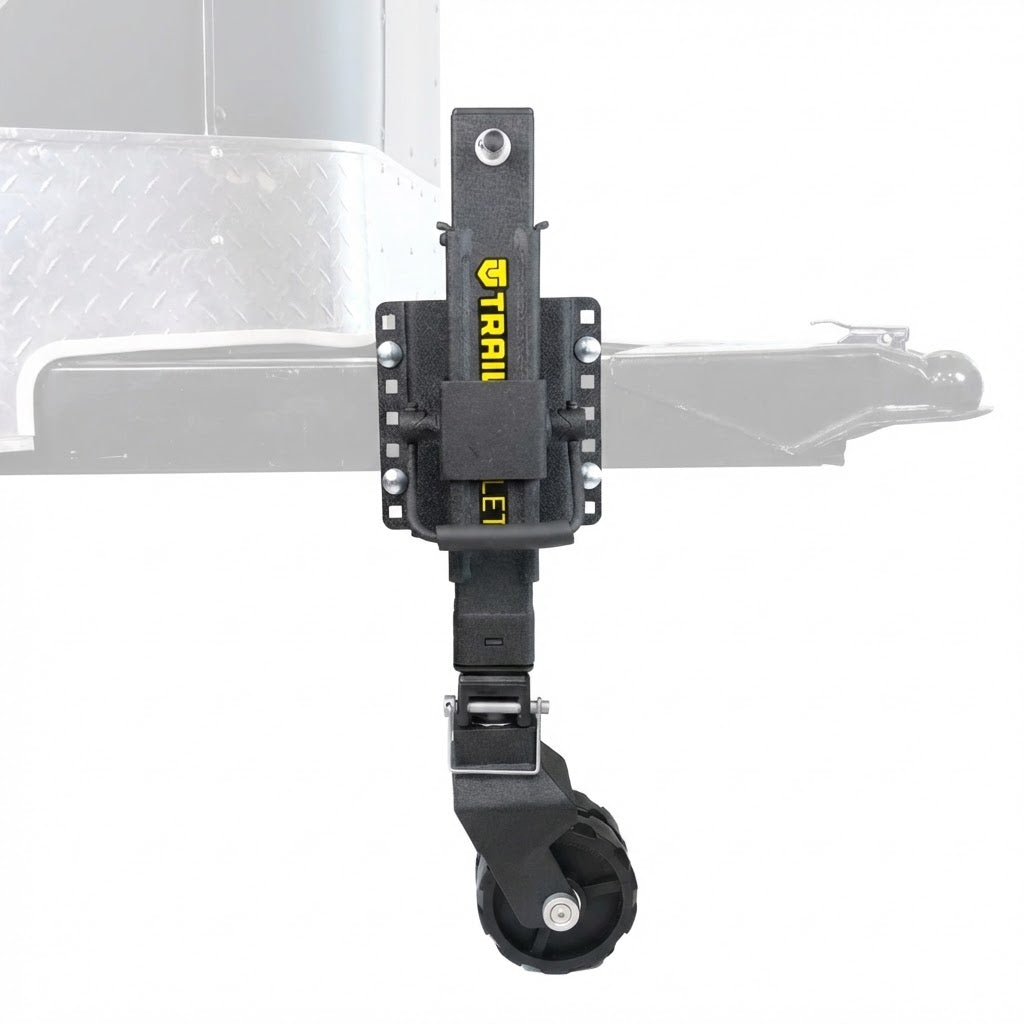

The jack uses a side-mount bolt-on installation, providing a secure and stable connection to your trailer frame.

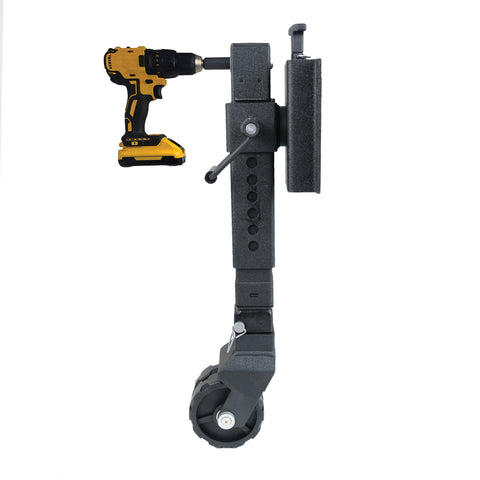

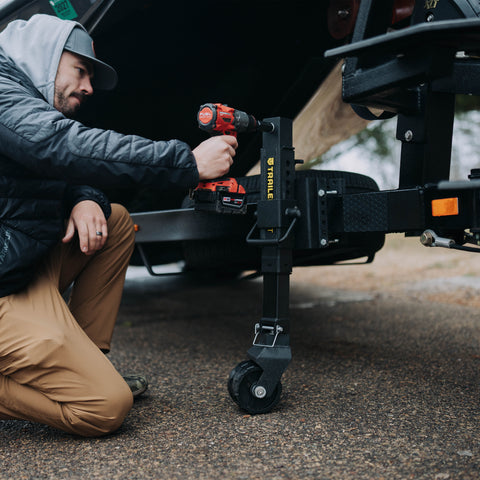

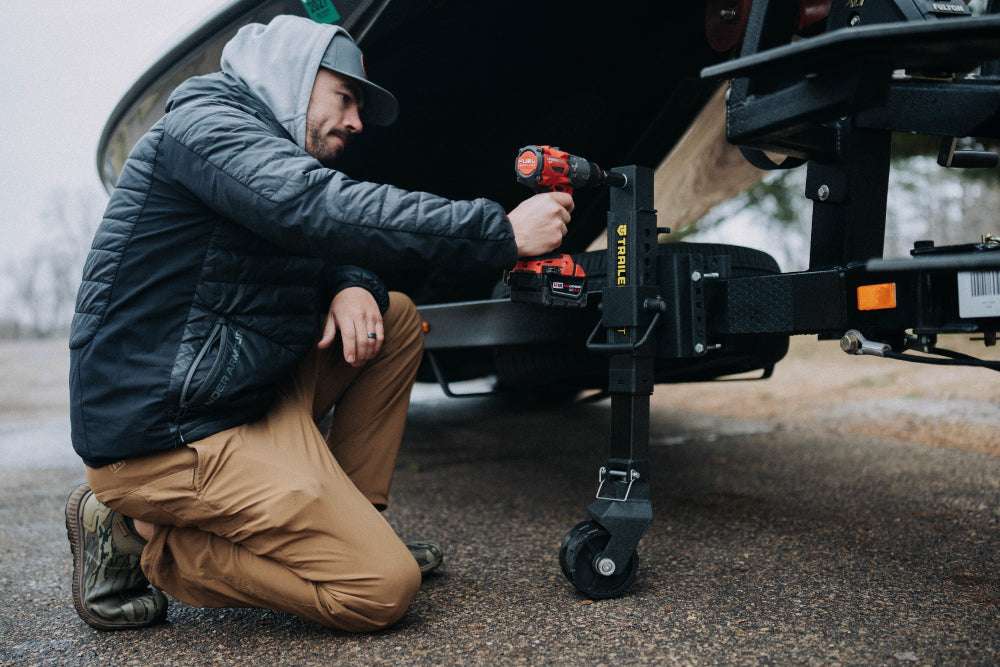

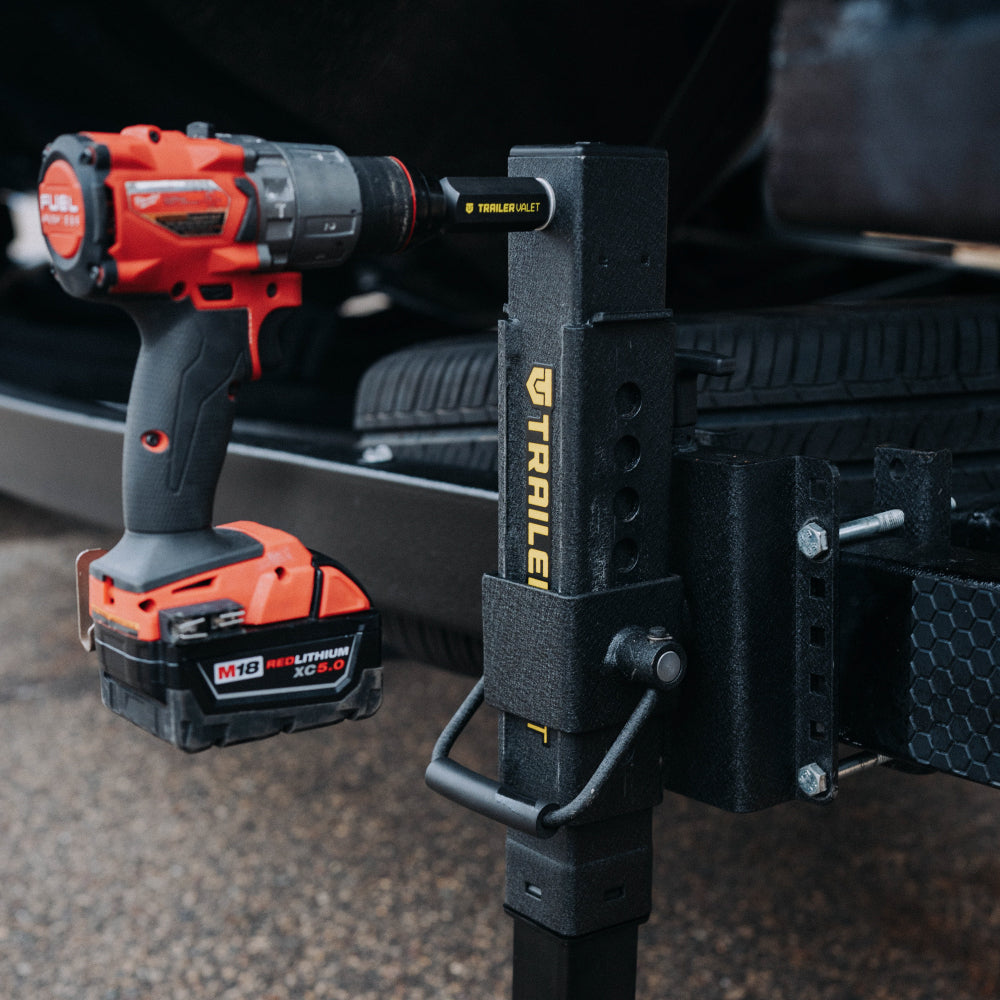

Can the JX 3-Squared be powered by a drill?

Yes. It includes a Trailer Valet Drill Attachment and is compatible with most 20V–24V drills for fast and easy lifting.

What features improve ease of use and performance?

The JX 3-Squared includes a 6:7 gear ratio for smooth operation, a quick-drop feature for faster positioning, and a dual-wheel design for better traction on uneven surfaces.

What are the stow and adjustment options?

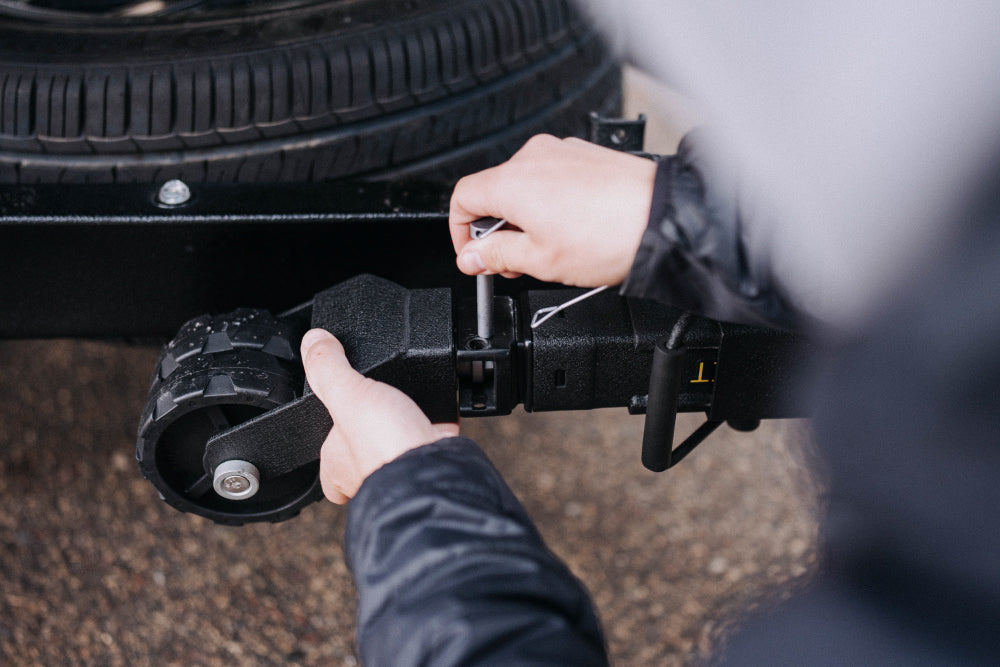

The jack can be stowed in Left, Right, Up, or Down positions, giving you flexibility based on your trailer setup.

What are the height specifications?

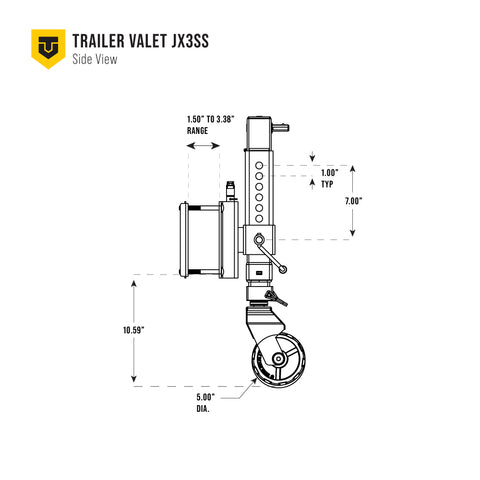

Retracted height: 10.6" to 17.6" Extended height: 19.1" to 26.1" Total extension includes 8.5" lift and 7.0" drop leg for flexible adjustment.

What protective and durability features does it include?

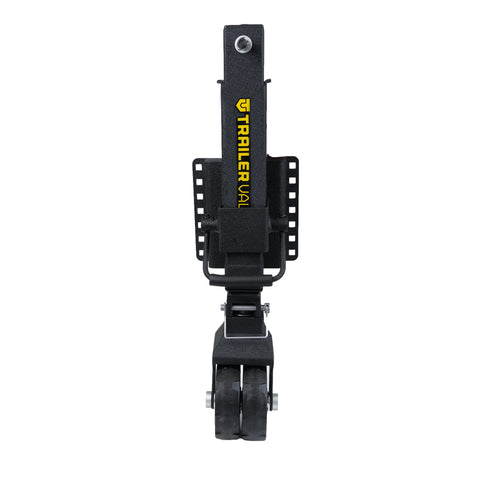

It features a protective sleeve between tubes and a wrinkle black powder coating with 700-hour corrosion resistance for long-lasting durability.

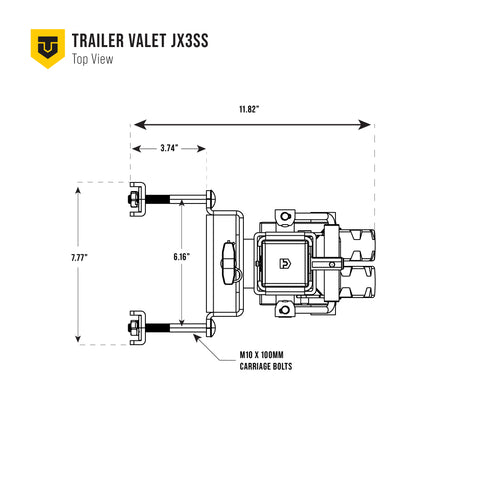

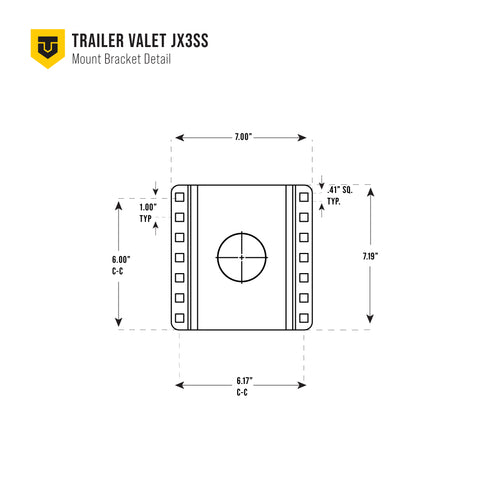

What is the maximum frame size and weight of the unit?

Fits frames up to 5.75" wide and 5.5" tall. The unit weighs 28 lbs, offering durability without being difficult to handle.

Does the JX 3-Squared include hardware and a warranty?

Yes. It includes all necessary hardware, wheel assembly, drill attachment, and handles. It’s also backed by a 1-year manufacturer’s limited warranty.
