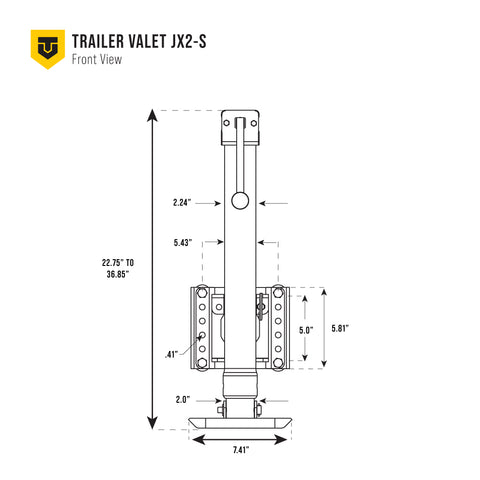

JX2-S-Dimensional-Drawings-Front_1000x1000

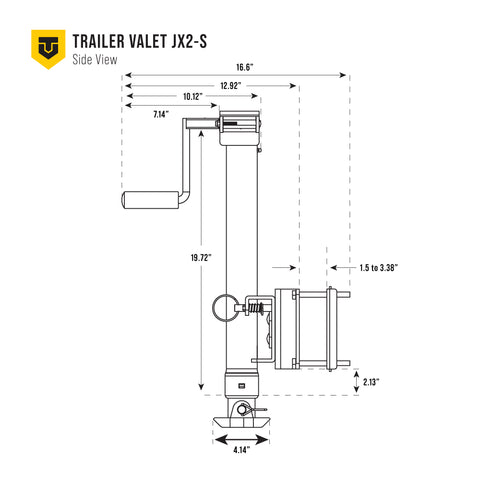

JX2-S-Dimensional-Drawings-Side_1000x1000

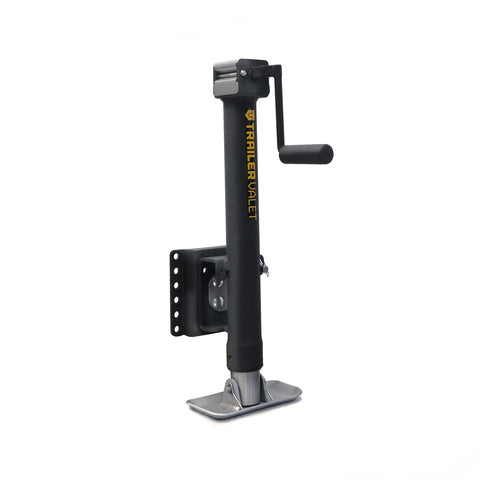

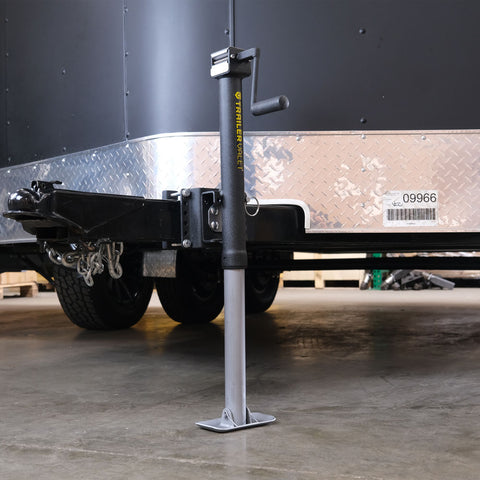

Trailer Valet JX 2K Side

$149.00; $149.00
Unit price: per

The Trailer Valet JX 2K Side is a versatile manual jack with a 2,000 lbs static capacity and lift capabilities of 1,200 lbs by hand or 600 lbs with a 20-24V drill using the included Drill Attachment. Designed for marine use, it features a pull-pin swivel bracket, a protective sleeve for smooth operation, and a weather-resistant shield with a durable black powder coating. Upgrade your trailer jack for faster, easier adjustments. JX Wheel attachment sold separately.

Product variants

The Trailer Valet JX 2K Side is a manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment

It has a static capacity of 2,000 lbs and a lift capacity of 1,200 lbs with the hand crank and 600 lbs lift capacity with the drill. its patented gear material composition delivers maximum efficiency while reducing heat retention. We've built in a sleeve fitting to offer the ultimate protection while ensuring a smooth glide every time. The JX 2K Side comes with a pull pin swivel bracket, weather resistant shield protection, and is topped with our signature wrinkle black powder coating so that you can go further, longer.

It’s time to MOVE FORWARD and replace the standard jack on your trailer! Power it up and save time, effort, and hassle and get to what you love most. This product was created with the marine consumer in mind, to make hitching and adjusting quick and convenient. As most electric jacks are not suitable for marine settings and standard and manual swivel jacks can take extensive time and effort to use, the Trailer Valet JX2 offers a reliable, versatile solution between the 2. The unit has a Static capacity of 2,000 lbs. (900 kg), ideal for most boat trailers. Comes standard with foot plate and Trailer Valet Drill Attachment. JX Wheel attachment sold separately.

If you have any inquiries about if this product will work for your specific trailer or environment, please reach out to our Support Team at support@trailervalet.com

Features

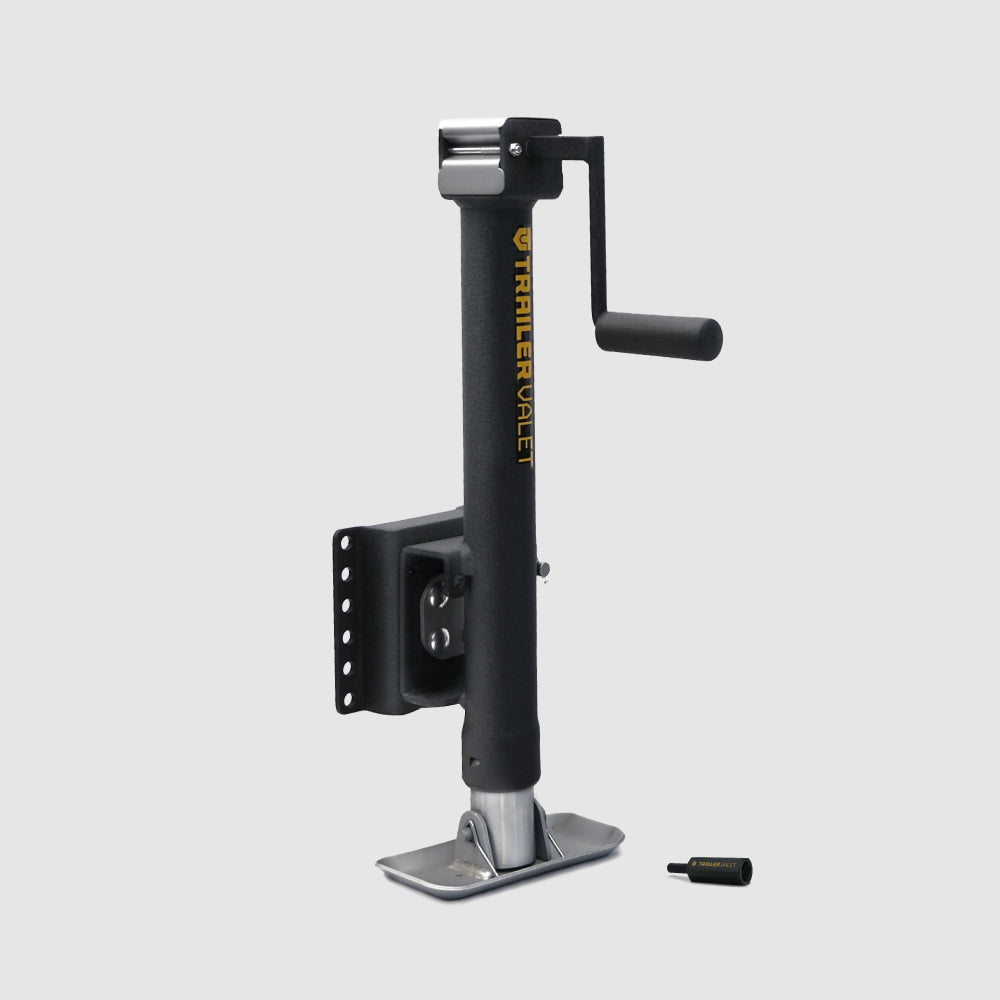

Includes Trailer Valet Drill Attachment (TVDA), footplate, and hand crank

Zinc-rich coating, nickel plating, and finished with our signature wrinkle black powder coating

Patented Trailer Valet Gear System (12:16 Ratio)

Patented gear material composition delivers maximum efficiency while reducing heat retention

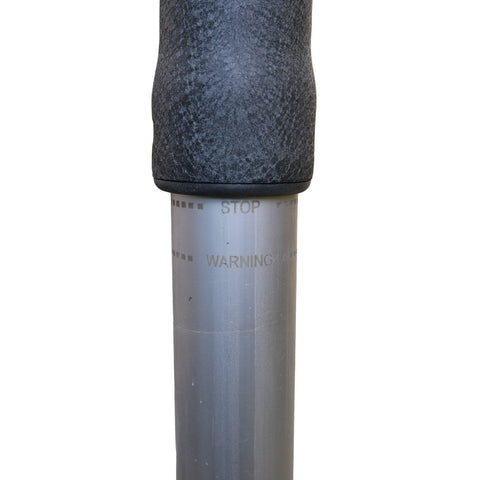

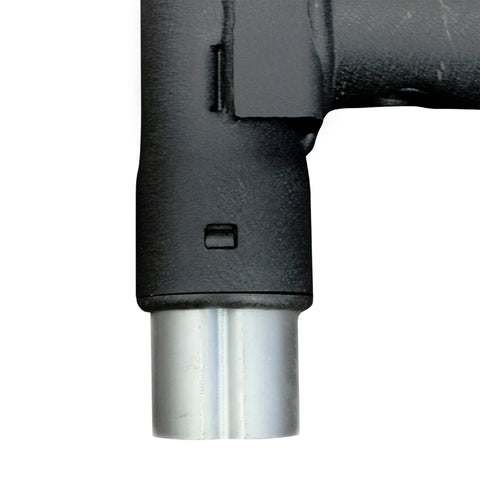

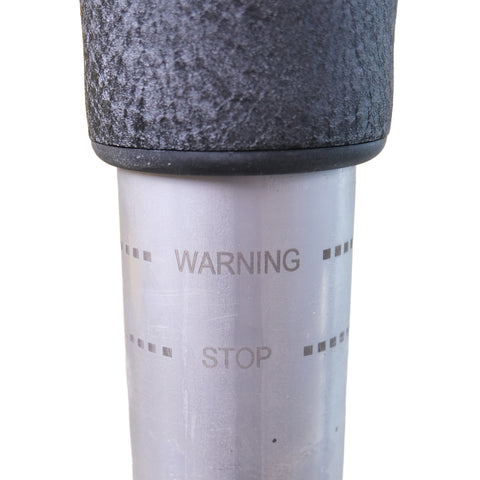

Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time

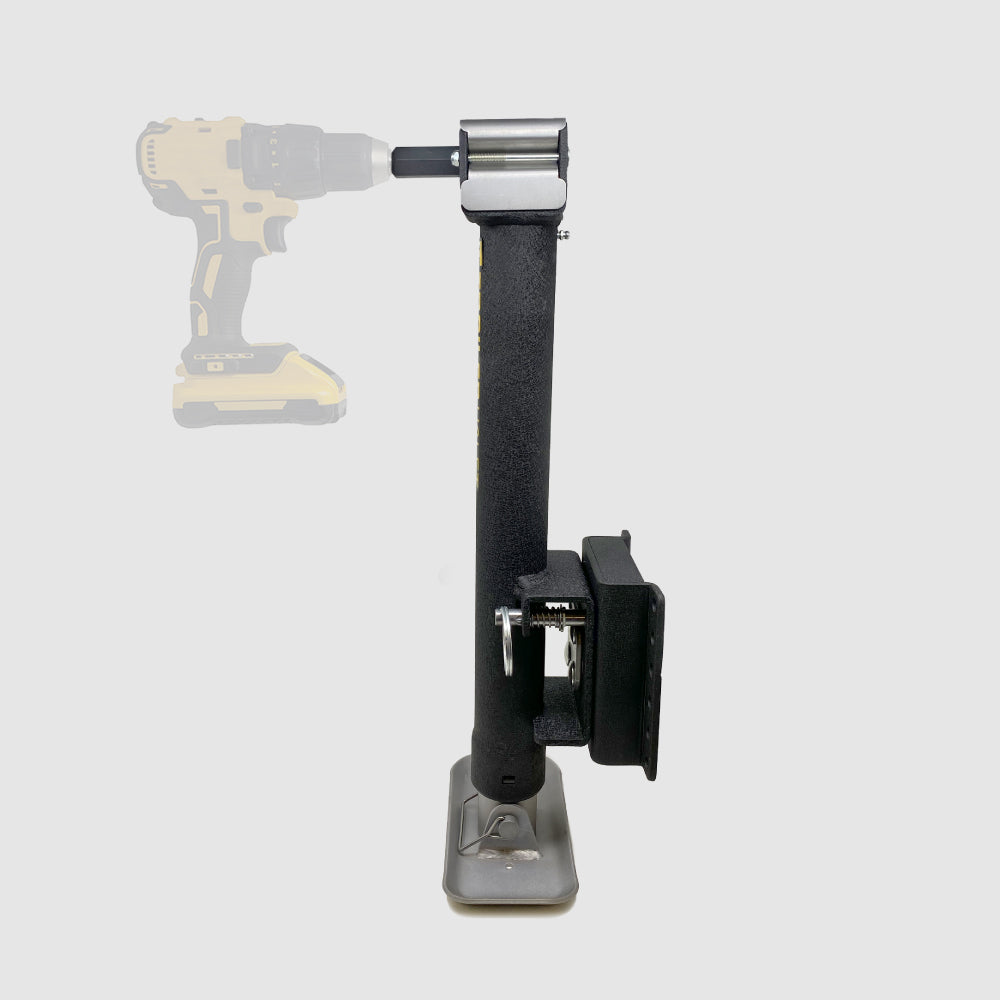

Manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment

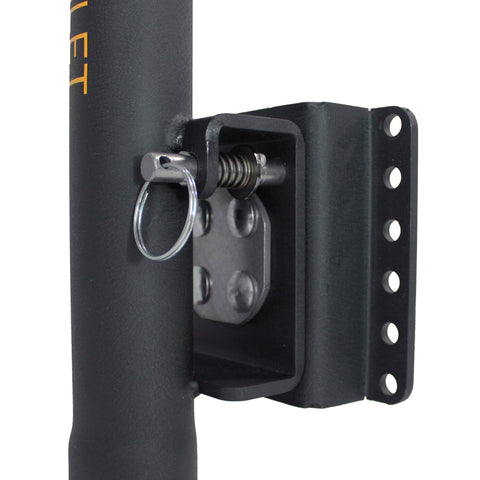

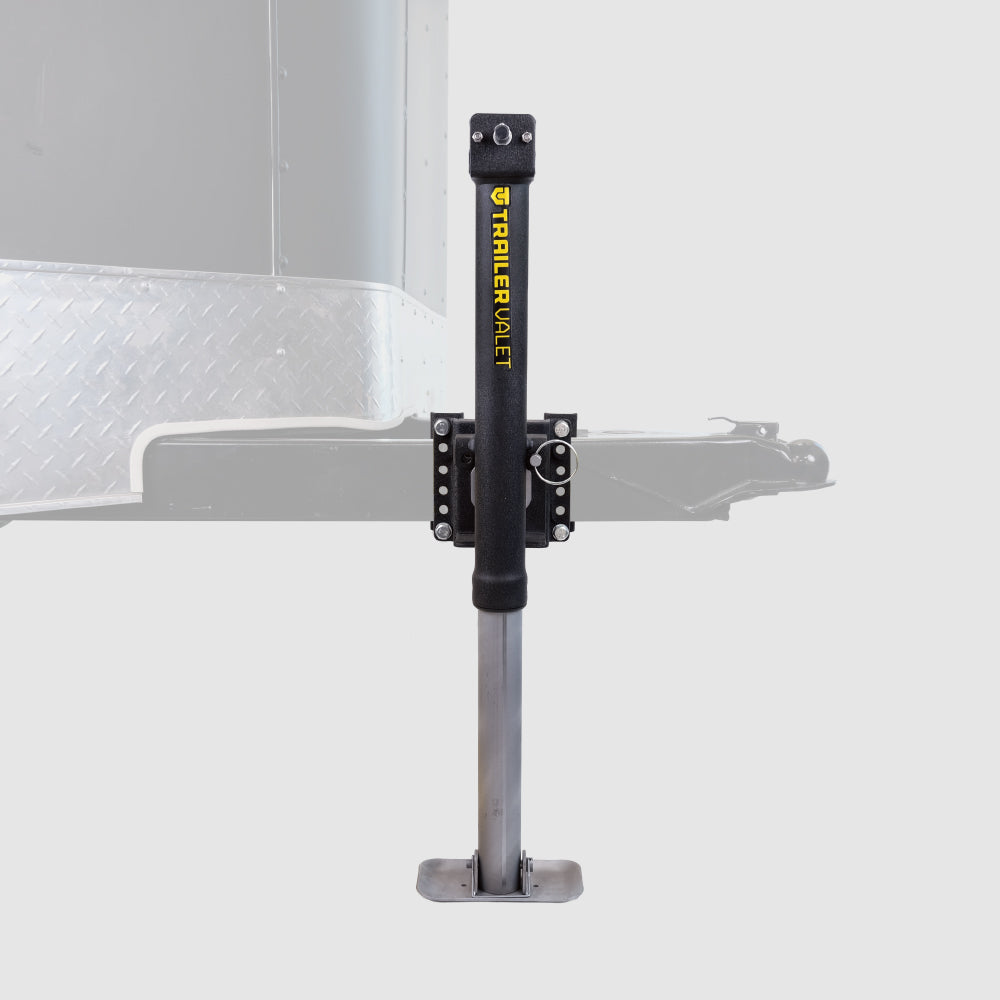

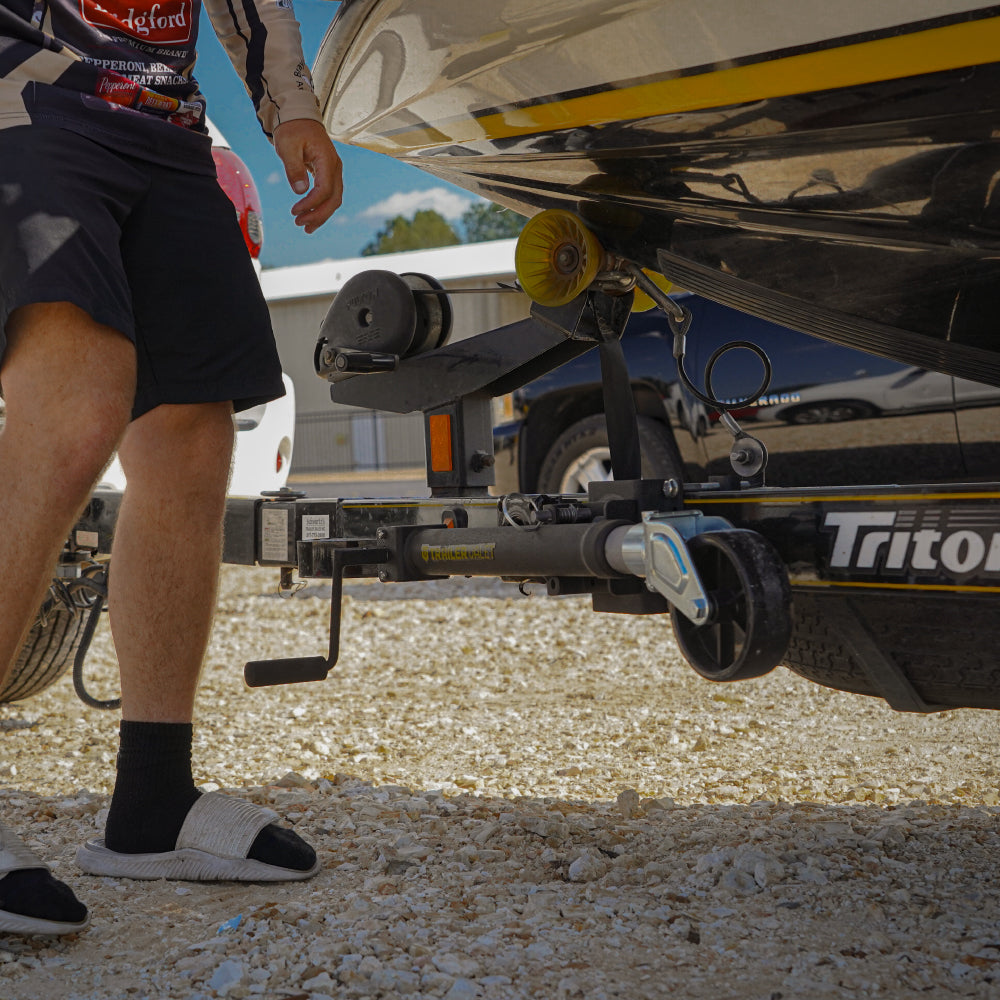

Pull-pin swivel mount for easy stow

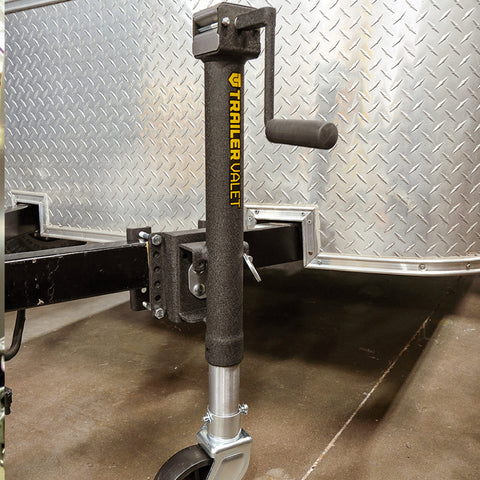

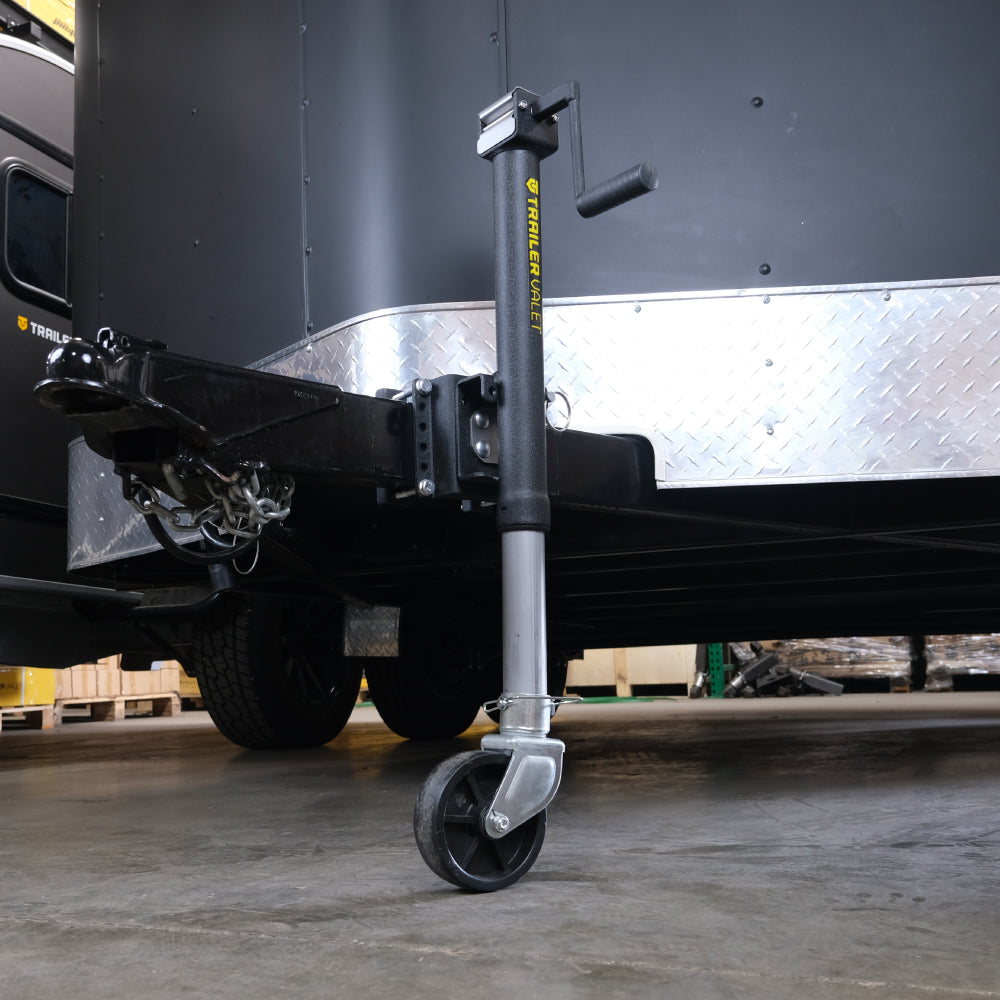

Compatible with JX Jack Wheel Attachment (TVJXMW), sold separately

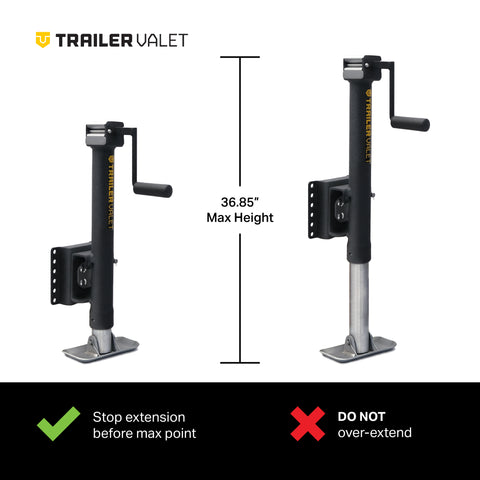

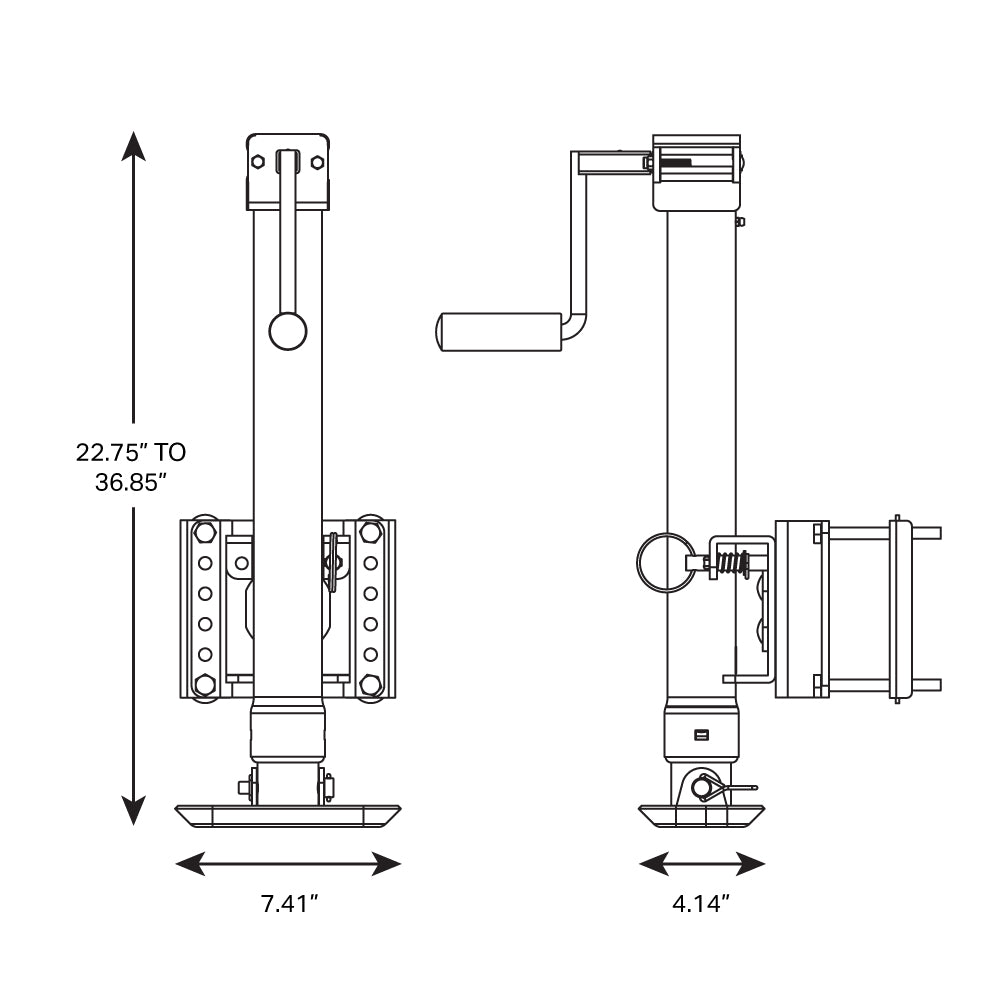

Retracted height: 23in, Extended height: 37in, Total travel: 14in

Static Capacity (with footplate): 2,000 lbs Static Capacity (with wheel): 1,200 lbs Lift Capacity: 1,200 lbs Lift Capacity w/ Drill: 600 lbs

Outer tube diameter: 57mm, Inner tube diameter: 51mm

Clearance (from bottom of bracket to top of jack): Approximately 14in, center of mount point to top of jack is 11.5in

Total Trailer Lift: 7.5in to 21.5in

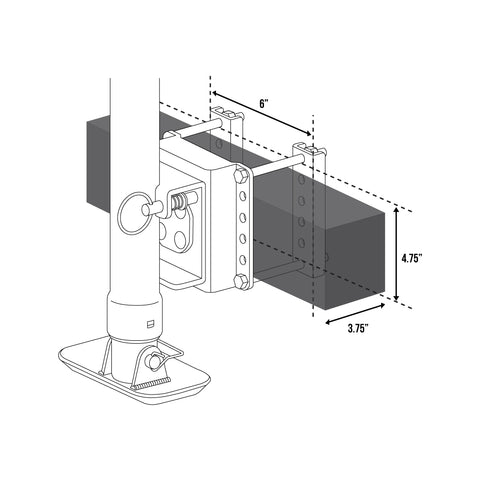

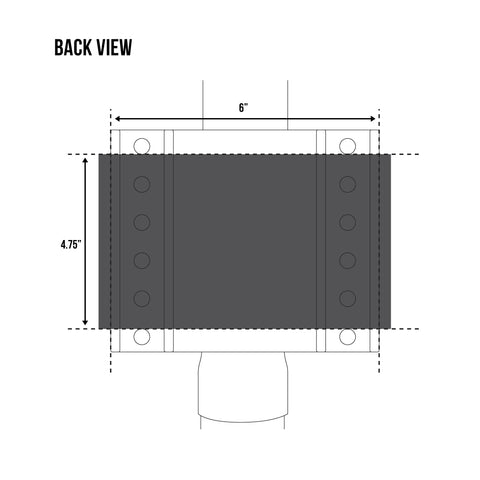

Max Frame Size Fit: 4.75 in high, 3.75 in deep

Use your own bolt for deeper frames - Uses M10 1.5

Installation: Requires 6 in of clearance

Specifications

Dynamic Lift Capacity Lbs: 1200

Static Tongue Weight lbs: 2000

Static Weight Capacity with Footplate Lbs: 2000

Mounting Type: Side

Item Height Inches: 23

Item Width Inches: 6.5

Item Depth Inches: 7.5

Item Net Weight lbs: 23

Warranty: 1 Year Manufacturers Limited Warranty

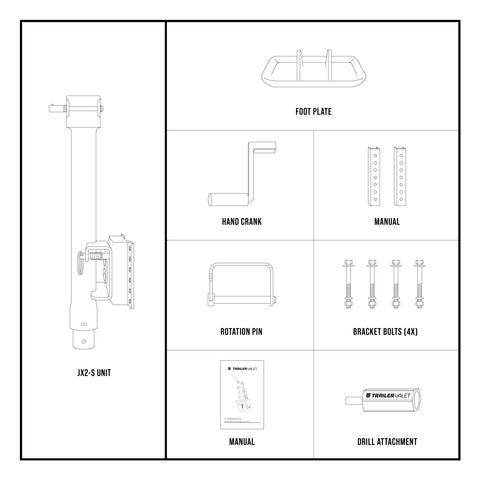

Includes: Includes Jack, Drill attachment, footplate, and hand crank

FAQ

How do you recommend propping up the trailer for installation?

A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16-18” of height to properly install the JX.

Can the center jack (JXC) be welded rather than bolted?

Yes, at your discretion. But note it will void any warranty and return.

Do I need to grease the gears before use?

No, the JX will come already lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual.

What is the load capacity of the JX?

JX2-C & JX2-S: 1,200 lb standard lift, 600 lb lift with power drill, and 2,000 lb static capacity. JX5-C & JX5-S: 1,600 lb standard lift, 800 lb lift with power drill, and 5,000 lb static capacity.

What is the recommended drill torque setting?

We recommend keeping the torque setting as low as possible while still lifting the trailer. A heavier load will require a higher torque setting.

Does the JX come with a caster wheel?

Each JX comes standard with a foot plate. Jack Wheels are available as an option (TVJXMW)

Does the JX Center Mount come with bolts for installation?

Yes. All JX Center jacks come with three bolts and lock washers for installation to your trailer frame.

What type of Mount Bracket comes with the JX2-S and JX5-S?

The JX2-S comes with a spring loaded pull pin swivel bracket for a Max Frame Size Fit: 4.75 in high, 3.75 in deep . The JX5-S comes with a same size pipe mount swivel bracket and stow pin. (Only the JX5-S can also use the TVJLMB (Sold Seperately) for frames from 4.75 inches to 5.75 inches) Note: both jacks need at least 8” of clearance to install.
