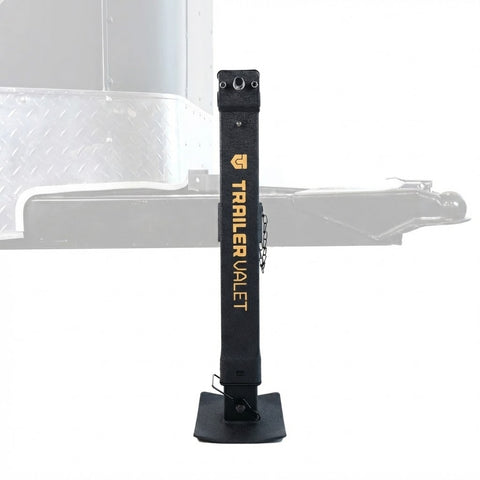

Trailer Valet JX 7000 lb Welded Pipe Mount Jack

Trailer Valet JX 7000 lb Welded Pipe Mount Jack

$199.00; $199.00
Unit price: per

The TVJX7-P is a rugged trailer jack with 7,000 lb static capacity. It offers 28 inches of height adjustment, a removable pipe-mount design, and drill-powered or manual lift options. Ideal for dump trailers, equipment haulers, or any heavy-duty setup.

The Trailer Valet TVJX7-P is built for users who need uncompromising strength, fast operation, and dependable results. It features a weld-on pipe bracket (male mount) with a removable female jack, allowing you to stow or detach it when needed. From dump trailers to weekend haulers, the JX7-P makes trailer setups more efficient and safer.

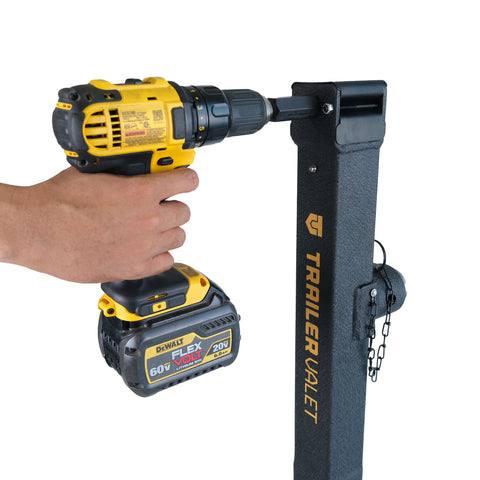

This jack includes both a hand crank and the Trailer Valet drill attachment, enabling lift via any standard 20–24V cordless drill. Eliminate the hassle of slow electric models or labor-intensive manual cranking. It lifts up to 1,800 lbs manually or 900 lbs with a drill, with 13.6 inches of drop leg extension and 14.5 inches of lift travel—providing a full 28 inches of height adjustment to handle any load or terrain.

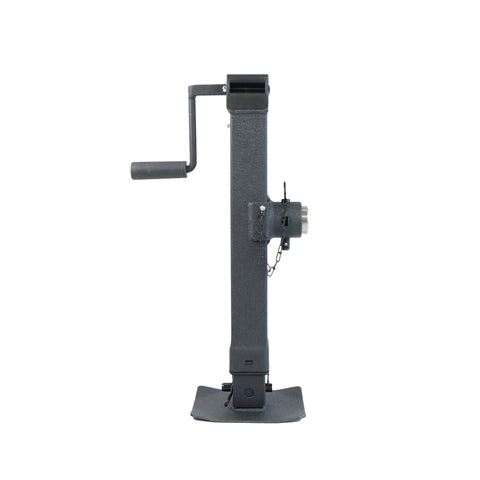

Engineered for durability, the JX7-P is constructed from a one-piece welded 65 mm square outer tube with a 57 mm inner tube and 50 mm drop leg. Its wrinkle black powder coat protects against corrosion and wear. Inside, the 3:4 gear ratio minimizes strain while a protective weather sleeve reduces friction and keeps internal components clean and dry.

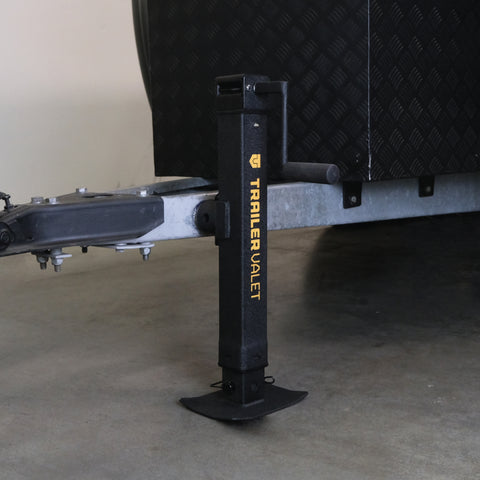

Additional features ensure maximum usability. With a retracted height of 23.25 inches and a footprint of 8 x 8 inches, the JX7-P fits compactly yet delivers powerful performance. The integrated footplate ensures stability, and the removable design lets you protect your investment in transit. If you're looking for speed, power, and flexibility in your trailer gear, this jack has it all.

If you have any inquiries about if this product will work for your specific trailer or environment, please reach out to our Support Team at support@trailervalet.com

Features

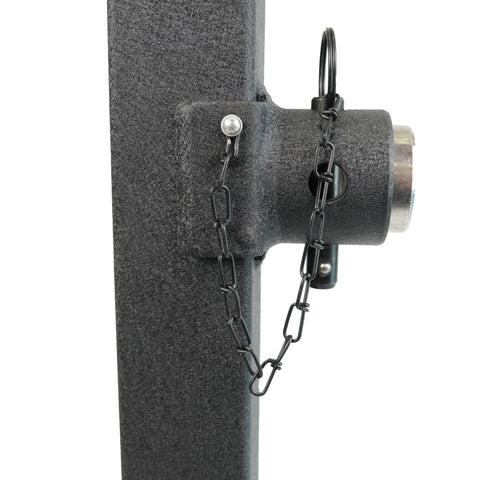

Weld-On Pipe Mount Bracket: Secure male pipe bracket welds directly to trailer; jack slides on/off for convenient stowage or security.

Drill or Manual Operation: Includes Trailer Valet Drill Attachment for use with any 20–24V cordless drill, plus hand crank.

Massive Capacity: 7,000 lb static load; 1,800 lb manual lift, 900 lb drill-powered lift.

28 inches of Total Travel: 14.5 inches internal lift plus 13.6 inches drop leg extension for flexible height adjustment.

Protective Weather Sleeve: Reduces friction and shields internal parts from the elements.

Heavy-Duty Build: One-piece welded square tube and corrosion-resistant wrinkle black powder coat.

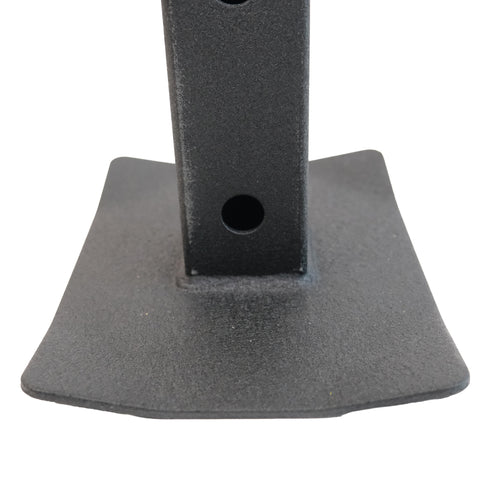

Stable Footing: Integrated welded footplate ensures a solid base during loading/unloading.

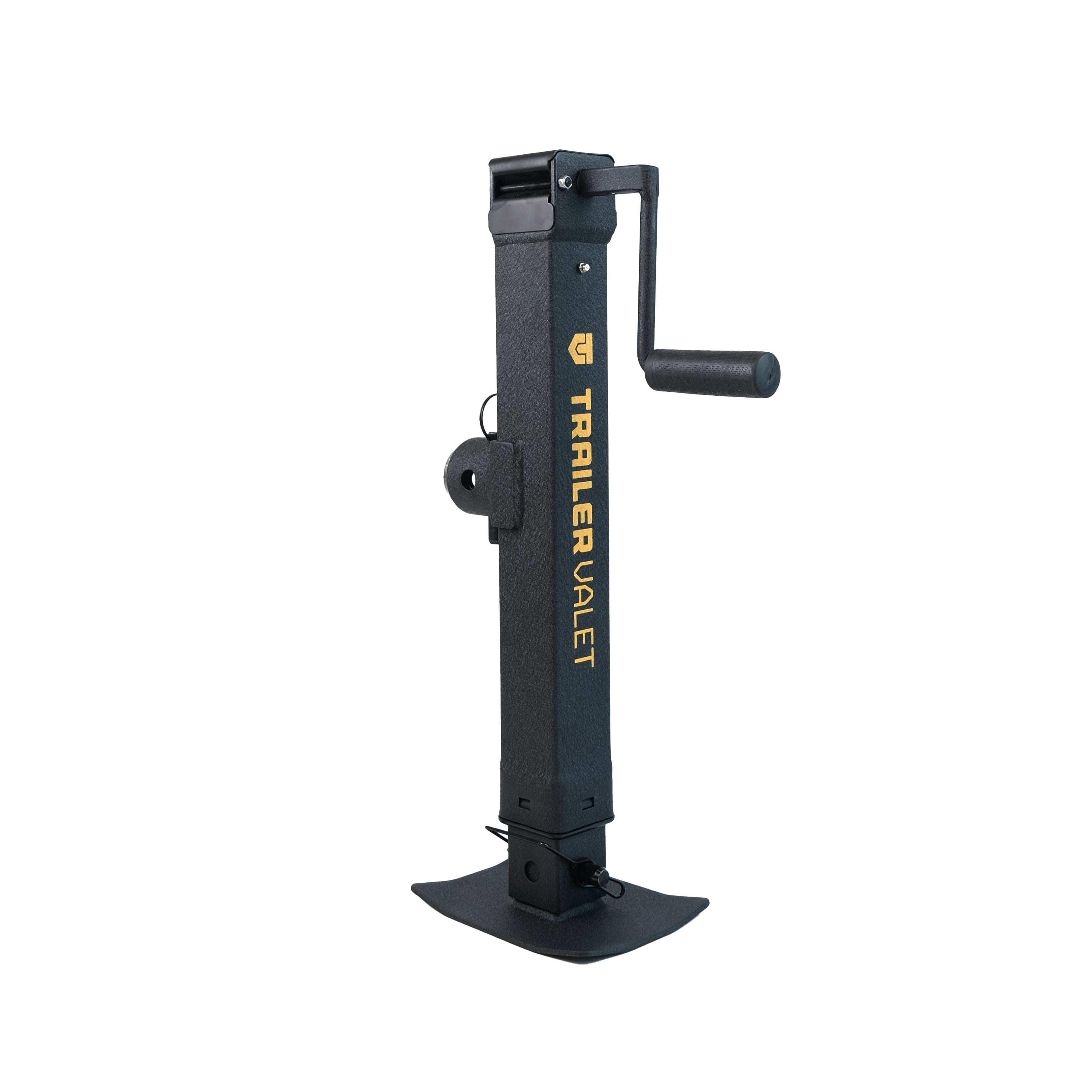

Smooth Crank System: 3:4 gear ratio provides easy lifting while minimizing gear strain.

Static Load Capacity: 7,000 lbs

Lift Capacity (Manual) : 1,800 lbs

Lift Capacity (Drill): 900 lbs

Lift Travel: 14.5 in

Drop Leg Extension: 13.6 in

Total Height Adjustment: 28.1 in

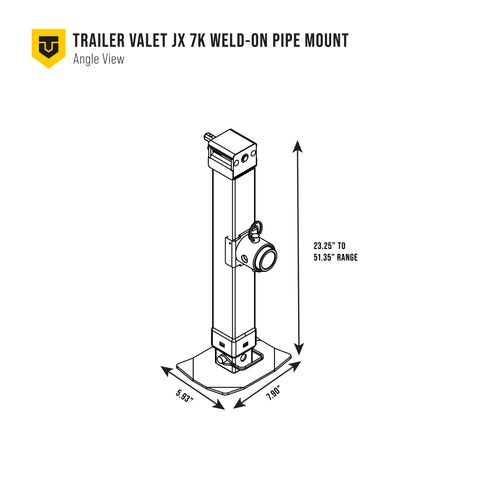

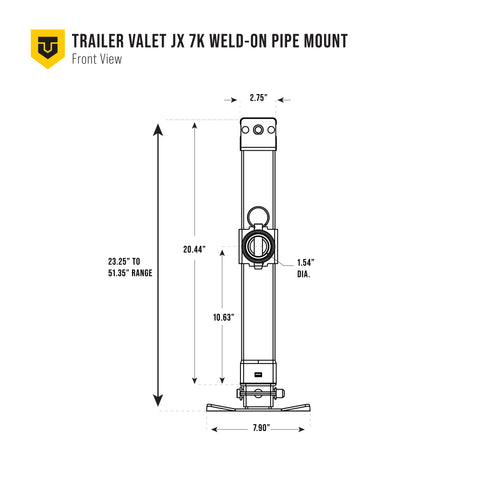

Total Retracted Height: 23.25 in

Total Extended Height: 51.35 in

Total Extension: 14.5 inches

Specifications

Dynamic Lift Capacity Lbs: 1800

Static Tongue Weight lbs: 7000

Static Weight Capacity with Footplate Lbs: 7000

Mounting Type: Pipe

Item Height Inches: 23

Item Width Inches: 6

Item Depth Inches: 8

Item Net Weight lbs: 23.7

Warranty: 1 Year Manufacturers Limited Warranty

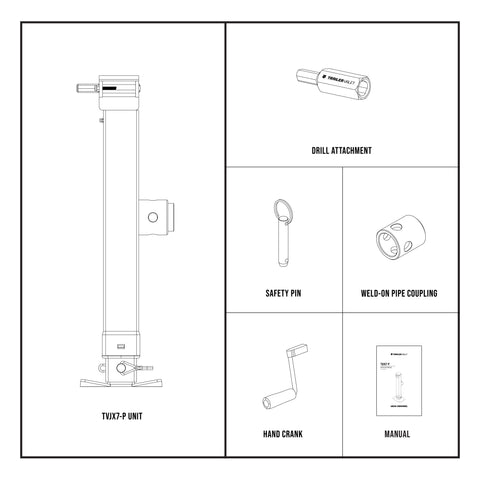

Includes: Includes Jack, Drill attachment, footplate, and hand crank

FAQ

What is the total lifting capacity of the Trailer Valet JX7-P jack?

The JX7-P supports a maximum static load of 7,000 lbs. It can lift up to 1,800 lbs manually or 900 lbs when powered by a drill, making it ideal for heavy-duty trailers and commercial use.

Can the JX7-P be powered by a cordless drill and what voltage is recommended?

Yes, the JX7-P includes a Trailer Valet drill attachment and is compatible with standard 20–24V cordless drills, allowing for quick and effortless lifting.

Is the jack compatible with standard weld-on pipe mounts?

The JX7-P is designed with a male weld-on pipe bracket and a removable female jack. This setup provides a secure yet detachable connection, ideal for stowing or removing the jack during transport.

How does the drop leg function improve height adjustment?

The drop leg provides an additional 13.6 inches of vertical extension, working alongside the 14.5 inches of internal lift for a total of 28 inches of height adjustability to accommodate varying trailer setups.

What is the difference between static and dynamic load capacities for this jack?

The static load capacity refers to the jack’s ability to support weight when stationary, rated at 7,000 lbs. The dynamic (lifting) capacity is 1,800 lbs manually or 900 lbs with a drill during active operation.

Does the JX7-P include a hand crank for manual operation?

Yes, each JX7-P unit includes a hand crank for manual lifting, offering a backup option if a power drill is not available or preferred.

Can the jack be removed from the trailer after installation?

Absolutely. The JX7-P’s female jack is removable from the male pipe mount, allowing users to stow the jack for safety or when clearance is needed during travel.

What materials and coatings are used to prevent rust or corrosion?

The jack is made from one-piece welded steel tubing and coated in a wrinkle black powder finish. This provides long-lasting protection against rust, corrosion, and environmental wear.

Is the drill attachment included with the jack, or sold separately?

The Trailer Valet drill attachment is included in the package, enabling users to operate the jack with a compatible cordless drill right out of the box.

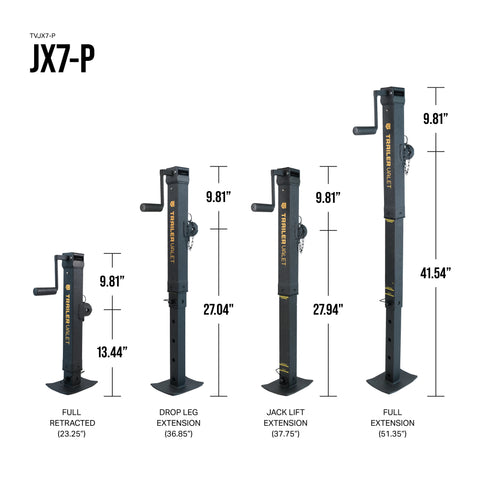

What is the minimum and maximum height range of the jack?

The jack offers a minimum height of 23.25 inches from ground to top and can extend up to 51.35 inches when fully deployed with the drop leg and internal lift combined.

What type of trailers is the JX7-P best suited for?

The JX7-P is ideal for commercial dump trailers, equipment trailers, enclosed trailers, and utility trailers requiring rugged lifting power and vertical adjustability.

Is there a warranty included with the purchase of the JX7-P?

Yes, the JX7-P is backed by a 1-year Manufacturer’s Limited Warranty and Trailer Valet’s dedicated US-based customer support team for installation or troubleshooting assistance.
