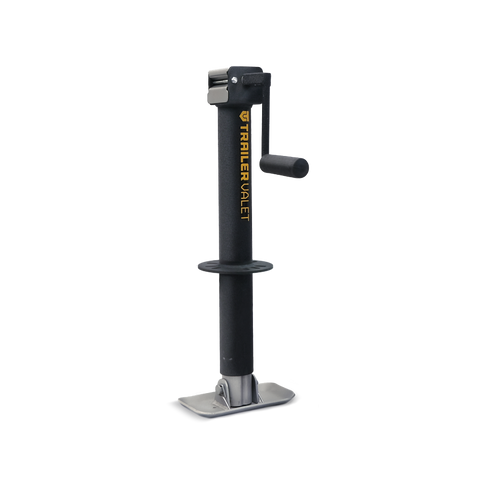

JX 5,000 lb Center Mount Drill Jack

$149.00; $149.00
Unit price: per

The Trailer Valet JX 5K Center is a powerful, dual-operation jack designed for maximum efficiency. With a 5,000 lb static capacity and lift capabilities of 1,600 lbs (manual) or 800 lbs (with a 20-24V drill and included Drill Attachment), it saves you time and effort. Its patented gear technology enhances performance while reducing heat, and the weather-resistant shield with black powder coating ensures durability. Upgrade your trailer jack—move forward with ease and power!

Free Delivery

Buy Now, Pay Later

3-Year Warranty

Top Features

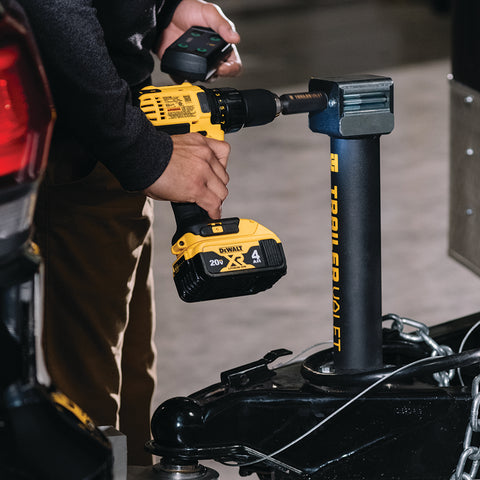

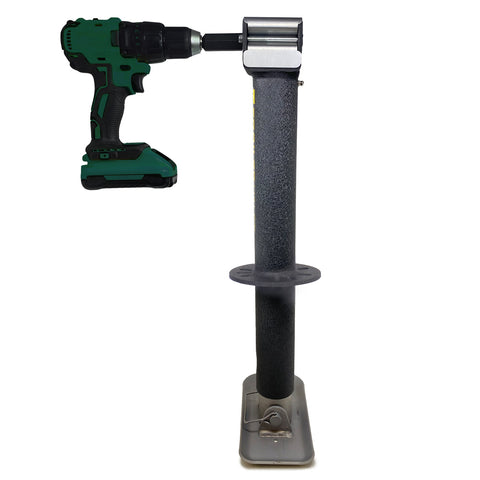

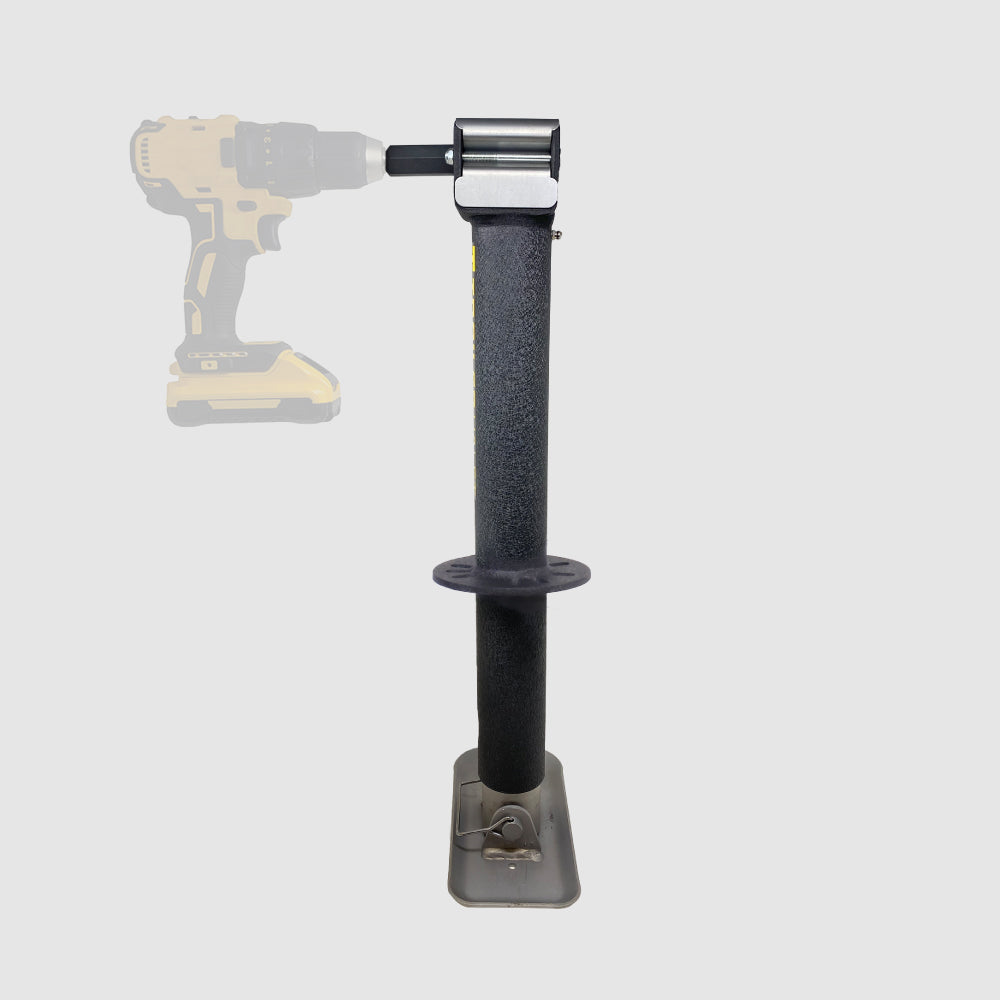

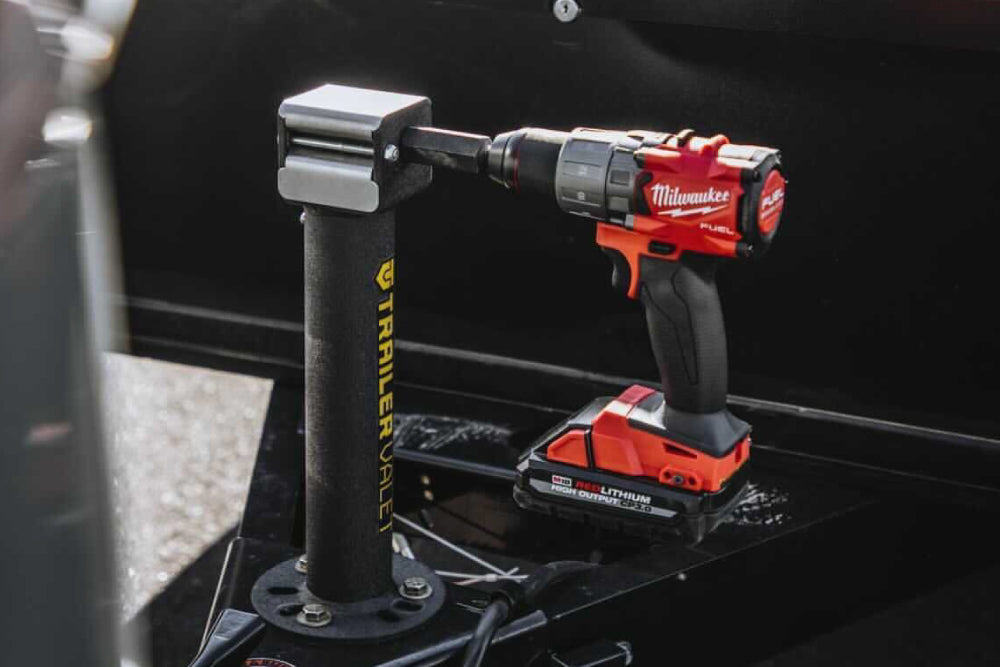

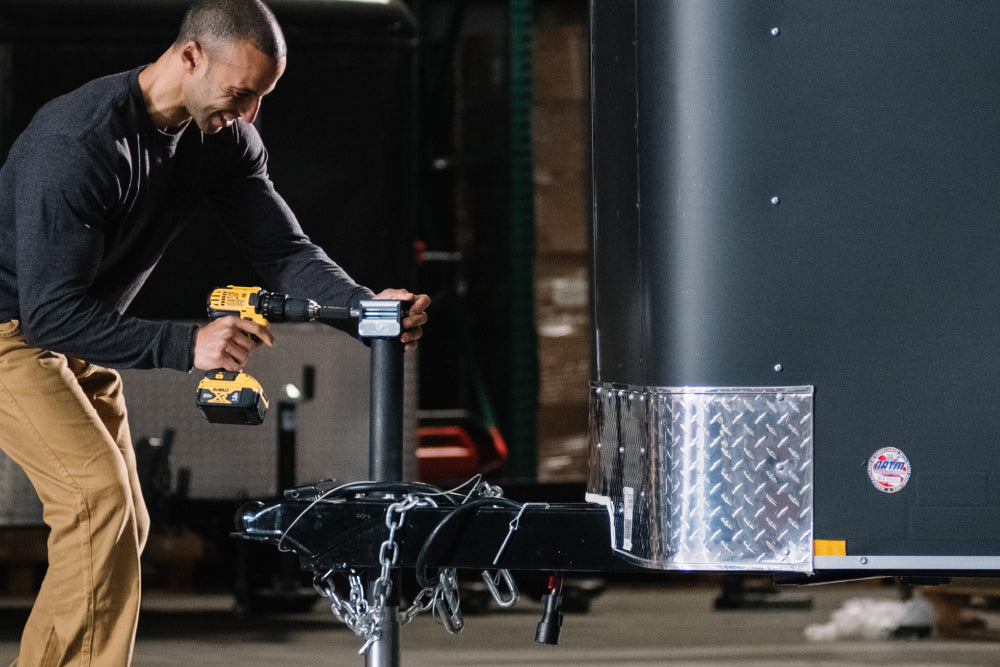

The Trailer Valet JX 5K Center is a manual hand-crank jack that can also be powered by any 20–24V compact drill using the Trailer Valet Drill Attachment.

It offers a 5,000 lb static capacity, lifts 1,600 lbs by hand or 800 lbs by drill, and uses patented gears for efficient operation with reduced heat buildup.

The JX 5K Center comes with weather-resistant shield protection, and is topped with our signature wrinkle black powder coating so that you can go further, longer.

The JX series includes Warning and Stop indicators to prevent over-extension, plus a foot plate and drill attachment. JX Wheel attachment sold separately.

Shop JX5-C

TECH SPECS

Specifications
SKU: TVJX5-C

Static Tongue Weight: 5,000 lbs

Dynamic Lift Capacity: 1,600 lbs

Lift Capacity w/ Drill: 800 lbs

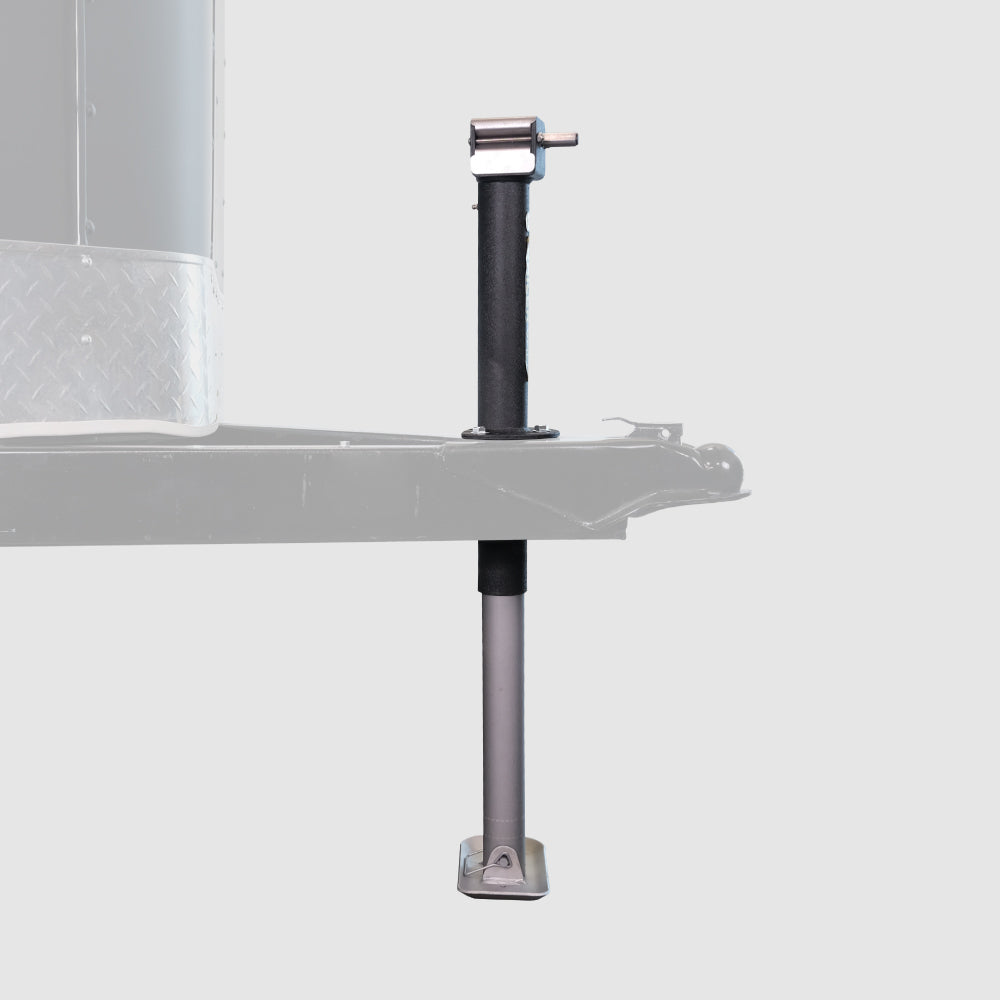

Mounting Type: Center

Item Net Weight: 15 lbs

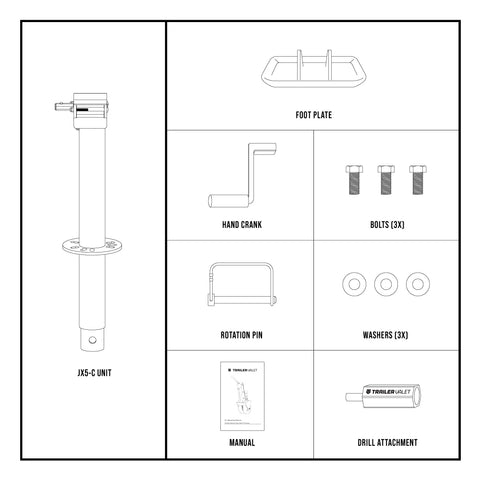

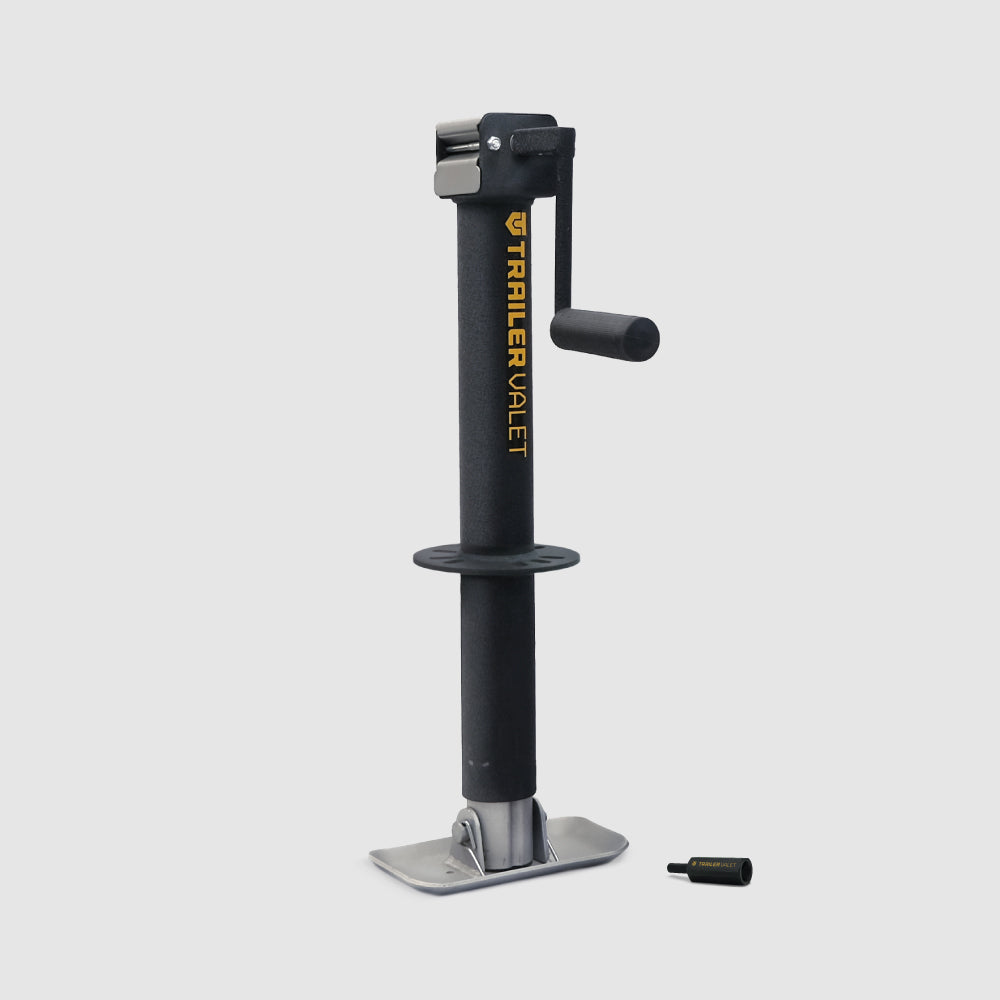

Includes: Jack, drill attachment, footplate, and hand crank.

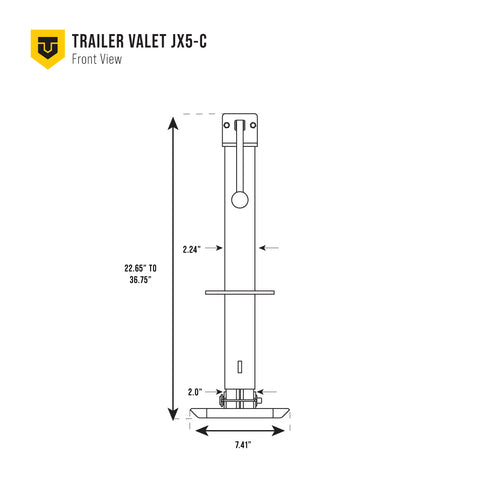

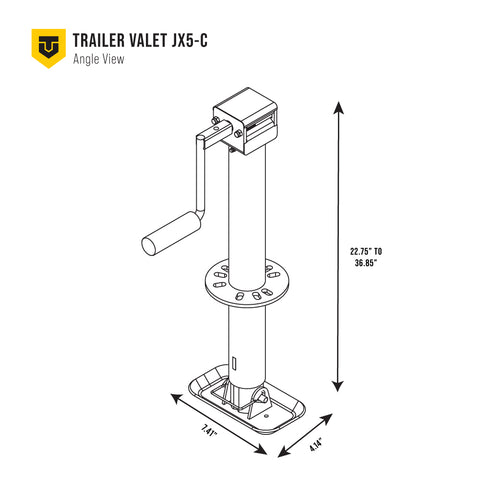

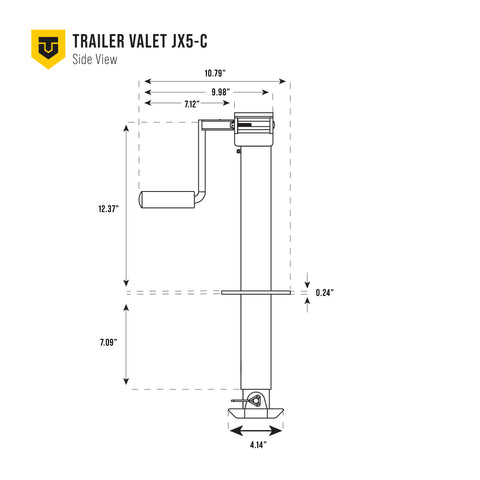

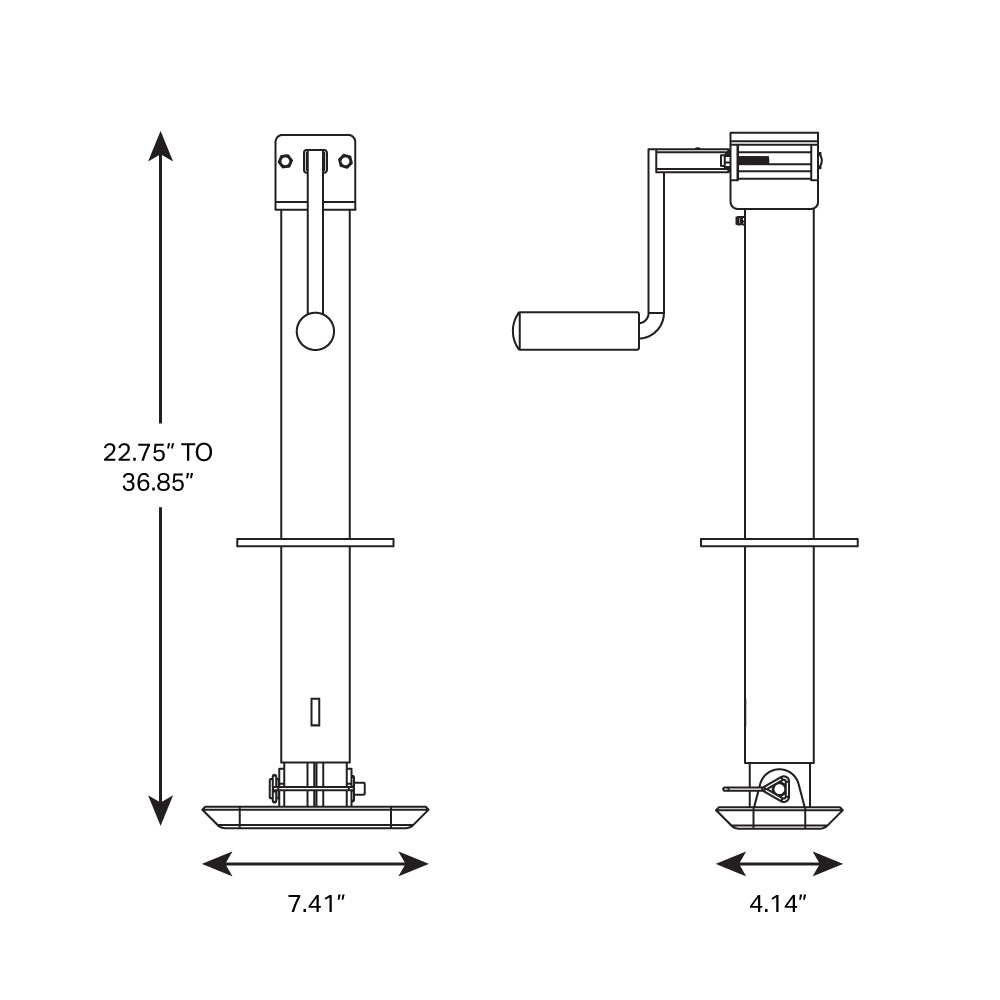

Dimensions

Item Height: 23 inches

Item Width: 7.4 inches

Item Depth: 6.5 inches

Downloads
JX5-C Manual
JX5-C Quickstart Guide

FAQ

HAVE A QUESTION?

You know how they say there's no such thing as a dumb question? Well, they were wrong, but here are some common not-so-dumb ones. Still flummoxed? Contact our customer support.

How do you recommend propping up the trailer for installation?

A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16-18” of height to properly install the JX.

Can the center jack (JXC) be welded rather than bolted?

Yes, at your discretion. But note it will void any warranty and return.

Do I need to grease the gears before use?

No, the JX will come already lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual.

What is the load capacity of the JX?

JX2-C & JX2-S: 1,200 lb standard lift, 600 lb lift with power drill, and 2,000 lb static capacity. JX5-C & JX5-S: 1,600 lb standard lift, 800 lb lift with power drill, and 5,000 lb static capacity.

Can I use a drill with the JX? What type is recommended?

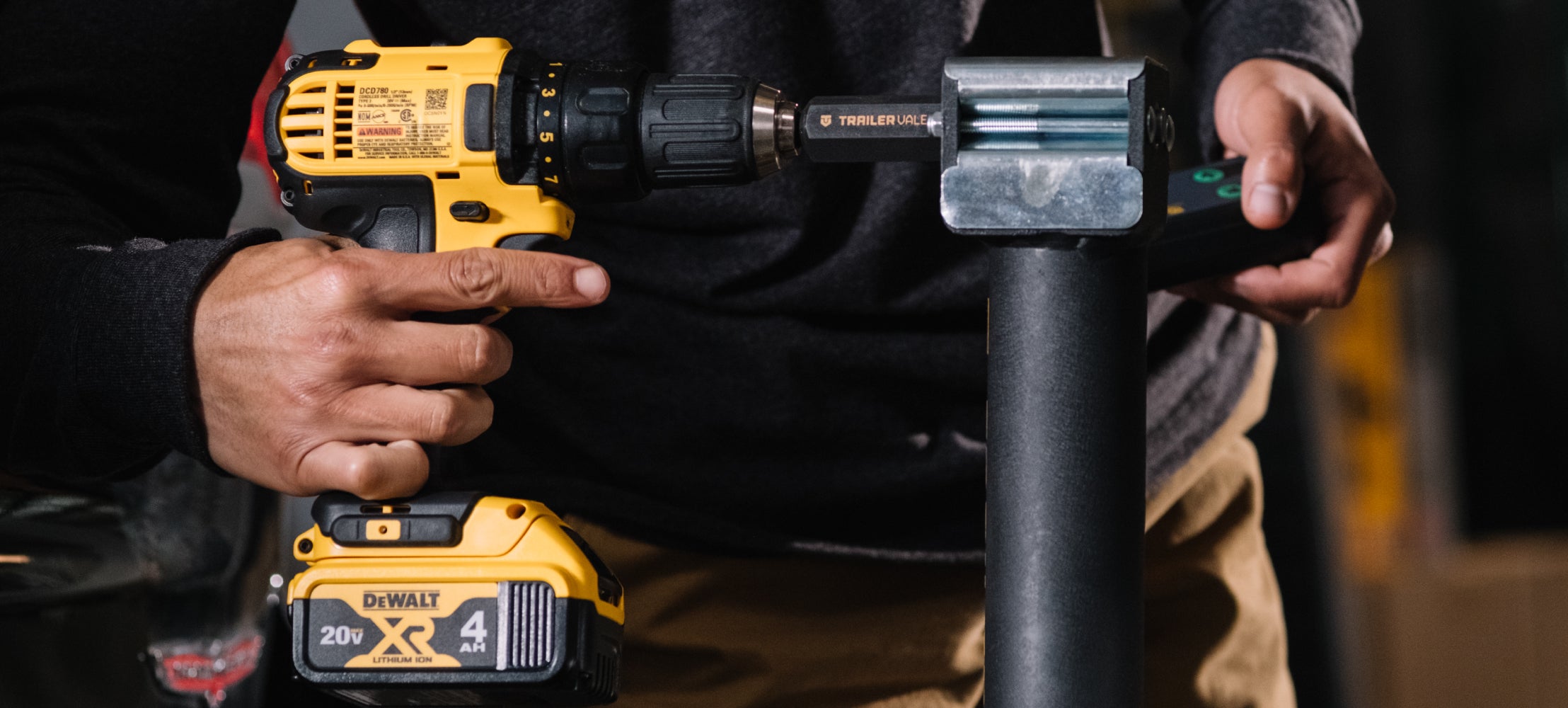

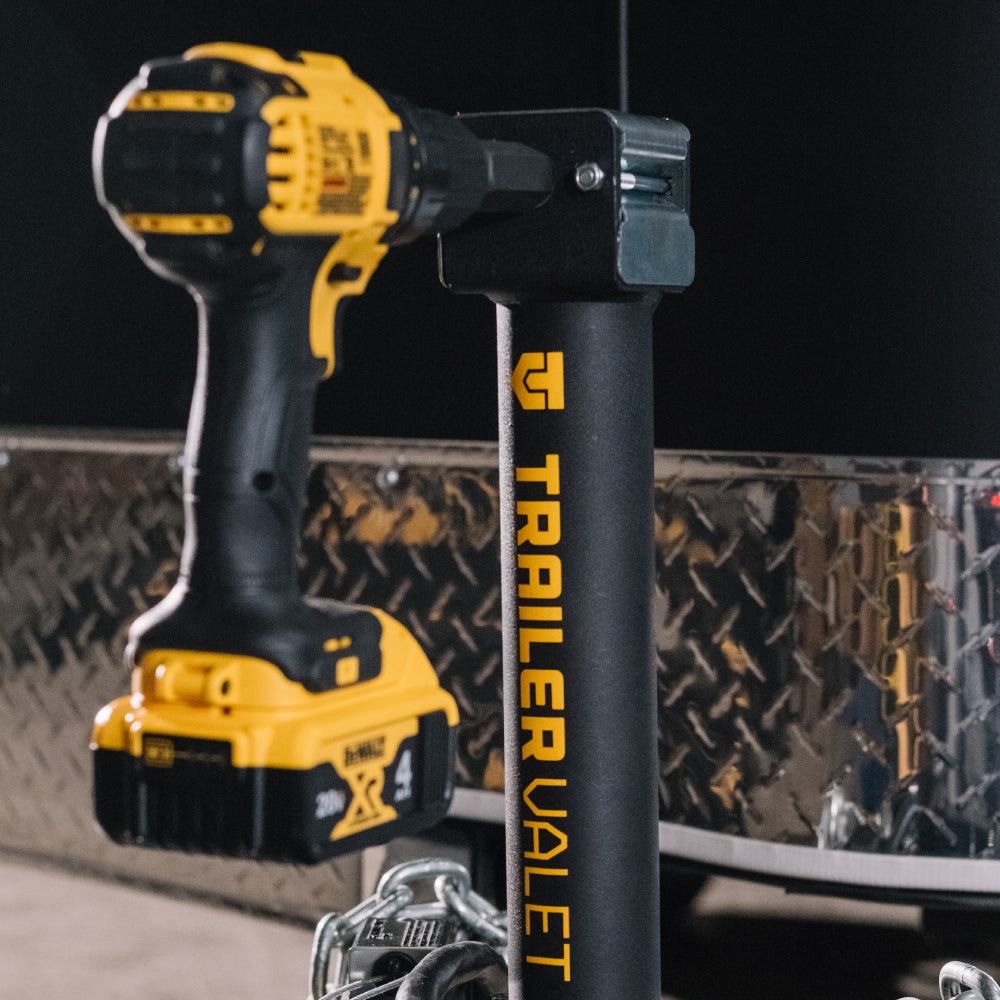

Yes. Any 20V–24V compact non-impact drill can be used with the Trailer Valet Drill Attachment. Keep the torque as low as possible while still lifting, heavier loads will require higher torque.

Does the JX come with installation hardware and mounting brackets?

Yes. All JX Center jacks include three bolts and lock washers for installation. The JX2-S includes a spring-loaded swivel bracket, while the JX5-S features a pipe mount swivel bracket with stow pin. Both require at least 8 inches of clearance for installation.

What is the best position for installing the JX5-S mount bracket?

The low position is recommended for optimal performance, but it can be flipped to a high position if needed.

Can the JX be stored outdoors or exposed to water?

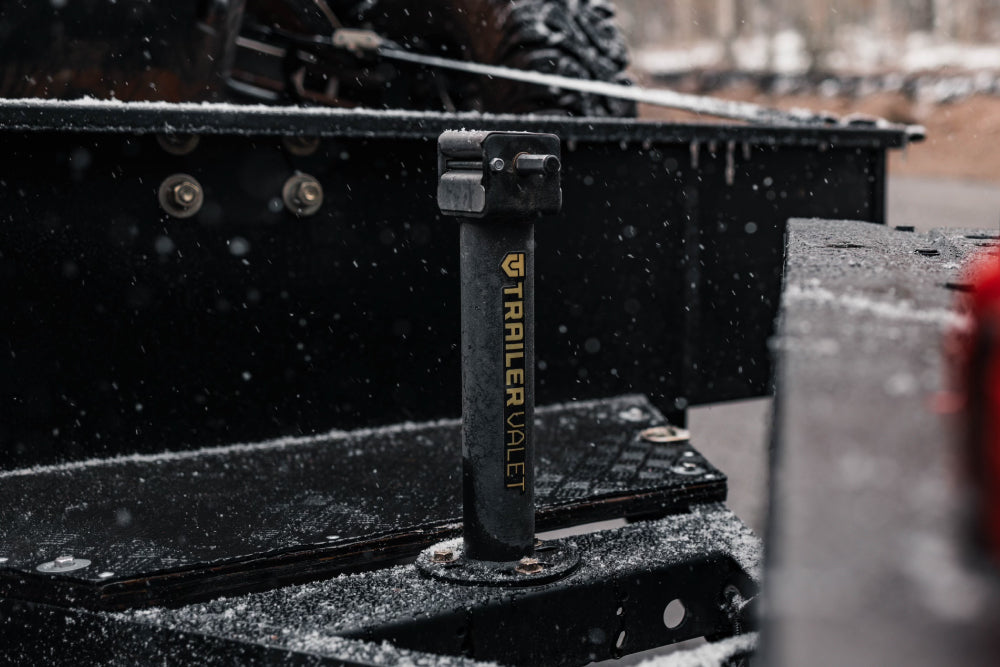

Yes. The JX features three layers of weather protection and can be stored outdoors. It can be submerged briefly, but we recommend rinsing it with fresh water after heavy saltwater exposure.

How do I know when the jack is fully extended or retracted?

The JX includes clearly marked warning and stop indicators on the inner tube to prevent over-extension and protect the internal gear system.

How much does the JX weigh?

JX2-S: 23 lbs JX5-S: 25 lbs JX2-C: 14 lbs JX5-C: 14 lbs

AI Generated Review Summary

Summary topics

Review topics: [installation, quality, customer service, price, improvement, jack, drill, trailer, idea, hand crank].

Review highlights

Reviews

Fabulous Jack

"I installed this center mount drill jack to help with shoulder and back pain and it’s been a game changer for me! I have a concession trailer with a 650lb tongue weight and this jack has zero issues raising and lowering it. Great price for the product. It’s well-made and very solid. Couldn’t be happier."

— Rachel P. (5/5)

Fantastic concept and works great!

"Fantastic concept and works great!"

— James B. (5/5)

I’ve had trailers for 30years…

"I’ve had trailers for 30years… why did it take me so long to buy this product???? From putting it in park to pulling away its less than 3 minutes!!!"

— William L. (5/5)

Love My Jacks. I have

"Love My Jacks. I have 3 so far! Plan on getting more. My shoulder appreciates them also. Haha. We have 23 trailers we rent out so Trailer Valet comes in clutch!"

— Michael A. (5/5)

Build quality is excellent. I

"Build quality is excellent. I love the fact I no longer have to stand in front of the tongue, or off to one side, and crank on jack to raise or lower anymore. I just keep an extra cordless drill in the back of the truck now, but like the fact that I am still able to use the jack with the provided hand crank if needed. Im glad I went with this option rather than full electric. Installation was a breeze and one if able to face the gearbox in any direction on the tongue."

— William C. (5/5)

The JX 5k was a

"The JX 5k was a replacement for the 2k. The 2k had no issues at all, but having no need I donated it to a decor company sharing our warehouse space. The performance of the 5k is a drastic improvement to the gear. Business partner upgraded his cargo trailer to a 5k as well. Thanks Trailer Valet."

— Charles F. (5/5)

Great service. Thanks.

"Great service. Thanks."

— Robert L. (5/5)

I need one for all of my trailers

"This jack is amazing. It’s such a time saver. The finish and build quality are exceptional. I need one of these on all of my trailers."

— Chris (5/5)

Excellent Replacement!

"It works quite well and looks great. I love the option for powering it with a drill. It makes use much quicker. Installation was a perfect fit. I highly recommend this product for a light utility trailer."

— Keegan C. (5/5)

Super easy to crank rather

"Super easy to crank rather than those cheap top cranks!! Simple install and great price!!"

— Chad K. (5/5)

Q&A

Can I order a JX 5K for delivery when back in stock?: Hello! Yes you most certainly can! We do apologize being out of stock, but we do have dealers that have the jack in stock. If you check out etrailer.com you can find our jack there to name one. Please feel free to reach out to support@trailervalet.com if you have any questions, thank you!
When will the Trailer Valet JX 5K Center be back in stock: Hello! Thank you for reaching out! We do apologize that our 5K Center jack is out of stock on our site right now. We do have it available via our dealers! You can check etrailer.com and you can find it there. Please feel free to reach out to support@trailervalet.com or our website at trailervalet.com to view all of our official dealers. Thank you!
It mentions lubricating every 90 days and references the manual for more information. I wasn't able to find information in the manual of how, where, what for lubricating. Can you please share the preferred type, method, etc? Thanks: Hello! Thank you for reaching out to Trailer Valet, we are sorry to hear that our manual did not make it clear where and how or even when to exactly grease your jack. Greasing the jack does really depend on the amount of times you are using the jack. If you are using the jack often we do suggest monitoring and checking the jack to be greased. I can also provide a link from our Youtube page that provides everything you would need to know about greasing the jack- https://www.youtube.com/watch?v=09ESQRs4mNs Please feel free to reach out to support@trailervalet.com or by phone at 8448469344 if you have any further questions. Thank you!

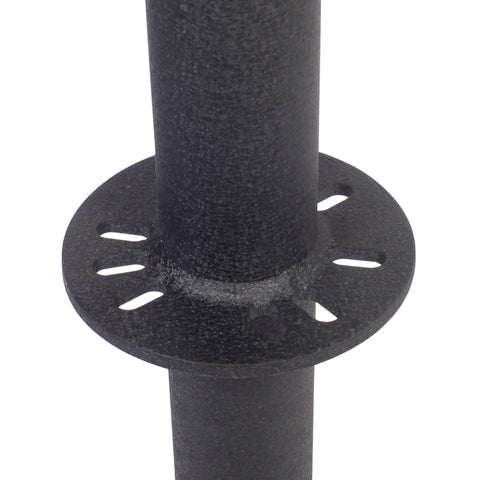

Are the bolt holes the same on the round mounting plates as the triangular ones?: Hello! Our center jack plate is now a circular style. We have upgraded to this version due to it being more versatile for our customers. Here is a link describing our new circular mount https://www.youtube.com/watch?v=389wTgzSX3s please feel free to reach out to support@trailervalet.com if you have any questions thank you!
Why can you not use an impact to raise and lower: Hello! We recommend not using a impact drill due to safety reason when using our drill powered products. A compact drill will allow you to have more control when on the job. Please feel free to reach out to support@trailervalet.com if you have any questions. Thank you!
I am thinking of mounting a center mount 5k on my car trailer but would like to know the retracted length from the mounting plate to the bottom of the foot. It is a 20 ft beaver tail and not very tall. I am hoping it is in the 9 1/2 inch range. Thank you.: Hello! Thank you for reaching out to Trailer Valet, we can certainly assist you. The retracted height on our JX5-C is about 23". If you have any questions please feel free to reach out to support@trailervalet.com thank you!
Just was curious if the JX series Jacks were produced in the USA? I cannot seem to find much information on where the products are made.: Hello, Thank you for your question. The JX is made in China.
Your second picture looks like a JX mounted on an RVR, is that possible?: Hello! Thank you for reaching out to Trailer Valet. Unfortunately we are still working on an official attachment for this. We do appreciate your inquiry and if this part does become available, we will list it on our website trailervalet.com please let us know if you have any other questions at support@trailervalet.com thank you! - CS Rep Aaron
Would this work with the Jack-E-Up?: Hello! Thank you for reaching out today! Our JX 5K will work well with any trailer, you would just want to make sure you are not over 5,000 lbs of trailer weight. This is the max weight the JX can handle. Please feel free to reach out to support@trailervalet.com if you have any questions, thank you!
