Cric à montage sur tube soudé JX 7 000 lb

$199.00; $199.00
Unit price: per

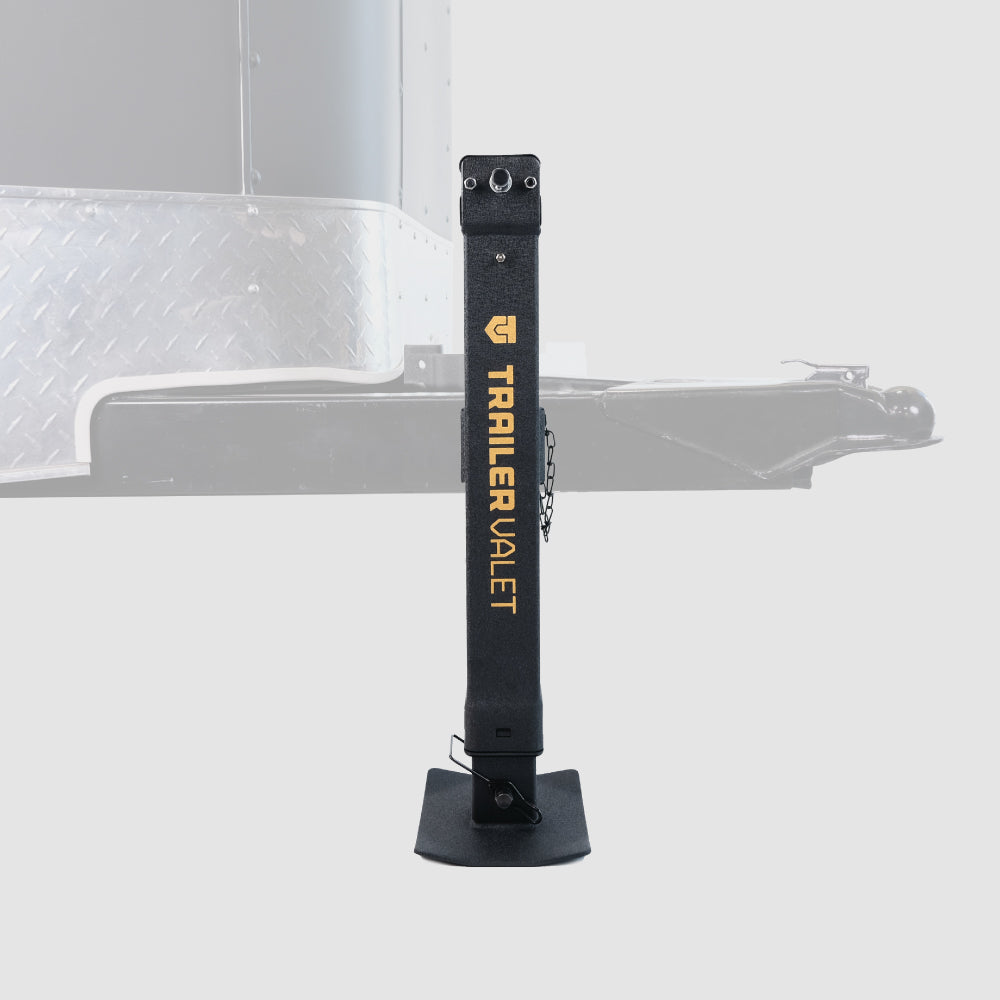

Le TVJX7-P est un cric de remorque robuste d'une capacité statique de 3 180 kg. Il offre un réglage en hauteur de 71 cm, un support de tuyau amovible et des options de levage manuel ou par perceuse. Idéal pour les remorques à benne basculante, les transporteurs d'équipement ou tout autre équipement lourd.

Free Delivery

Buy Now, Pay Later

3-Year Warranty

Top Features

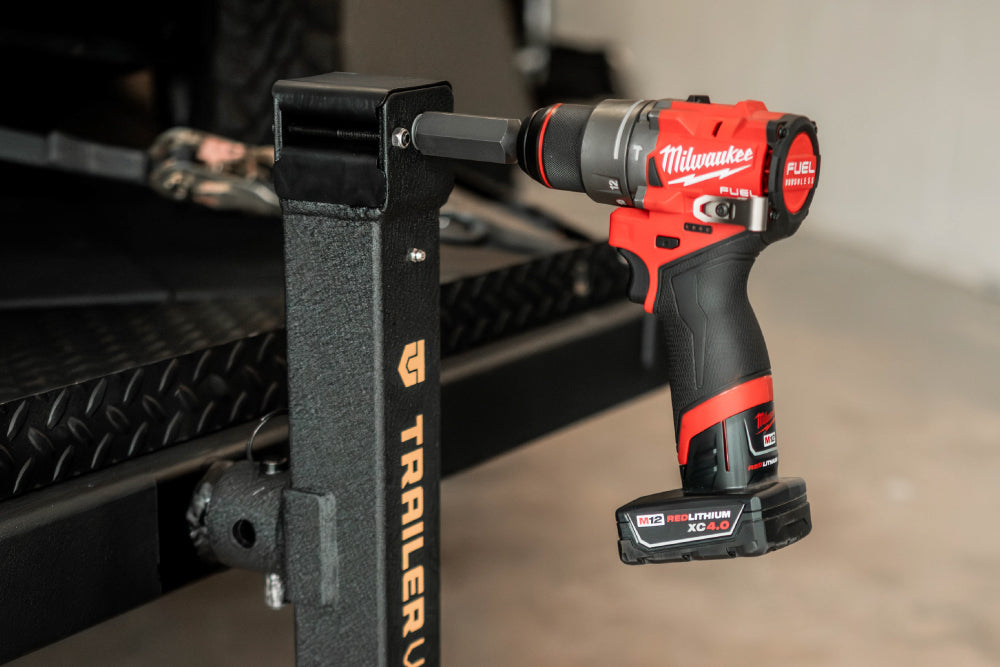

This jack includes a hand crank and drill attachment for 20–24V drills. Lifting up to 1,800 lbs manually or 900 lbs by drill, with 28 inches of total height adjustment.

The JX7-P features a one-piece welded steel tube design with corrosion-resistant powder coating, a smooth 3:4 gear ratio, and a weather sleeve to protect internal components.

With a compact 23.25-inch retracted height and 8 x 8-inch footprint, the JX7-P offers strong performance, a stable footplate, and a removable design for easy transport.

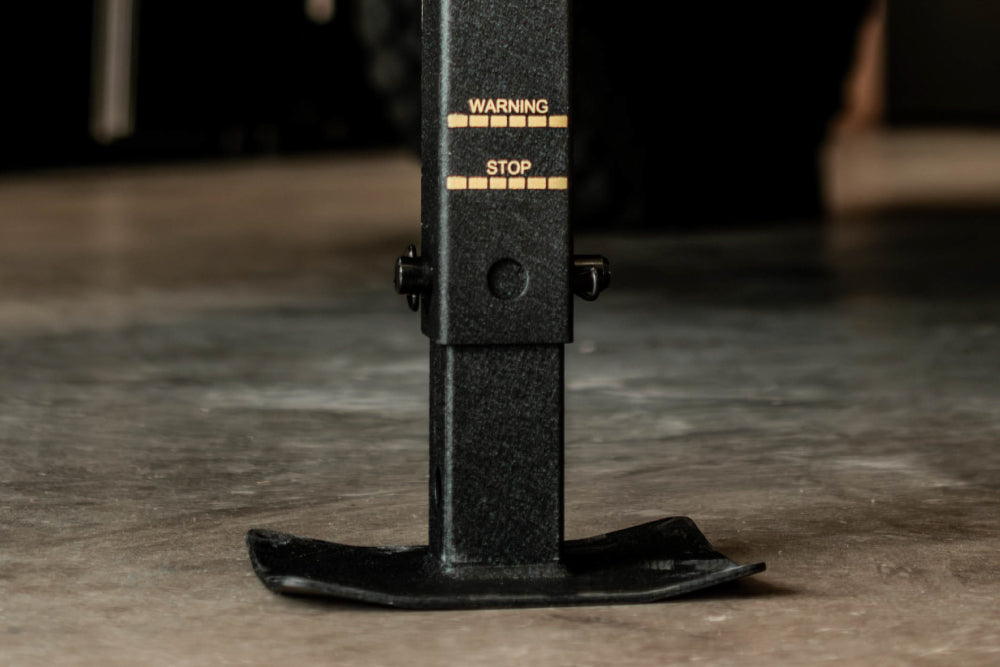

The JX series has Warning and Stop indicators on the inner tube to prevent over-extension, protect gear travel, and keep equipment safe while extending jack life.

Shop JX7-P

TECH SPECS

Specifications
SKU: TVJX7-P

Static Tongue Weight: 7,000 lbs

Dynamic Lift Capacity: 1,800 lbs

Lift Capacity w/ Drill: 900 lbs

Mounting Type: Side

Item Net Weight: 27.5 lbs

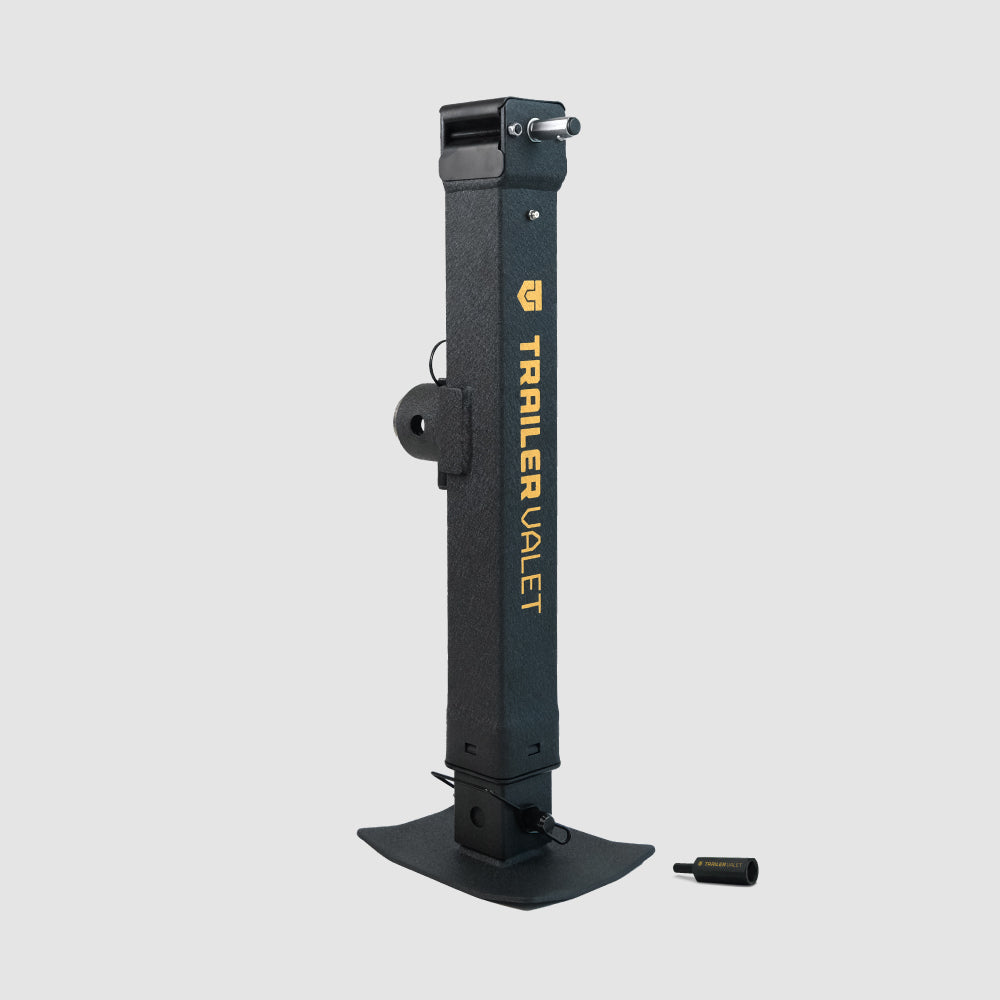

Includes: Jack, drill attachment, hand crank, and weld-on pipe coupling.

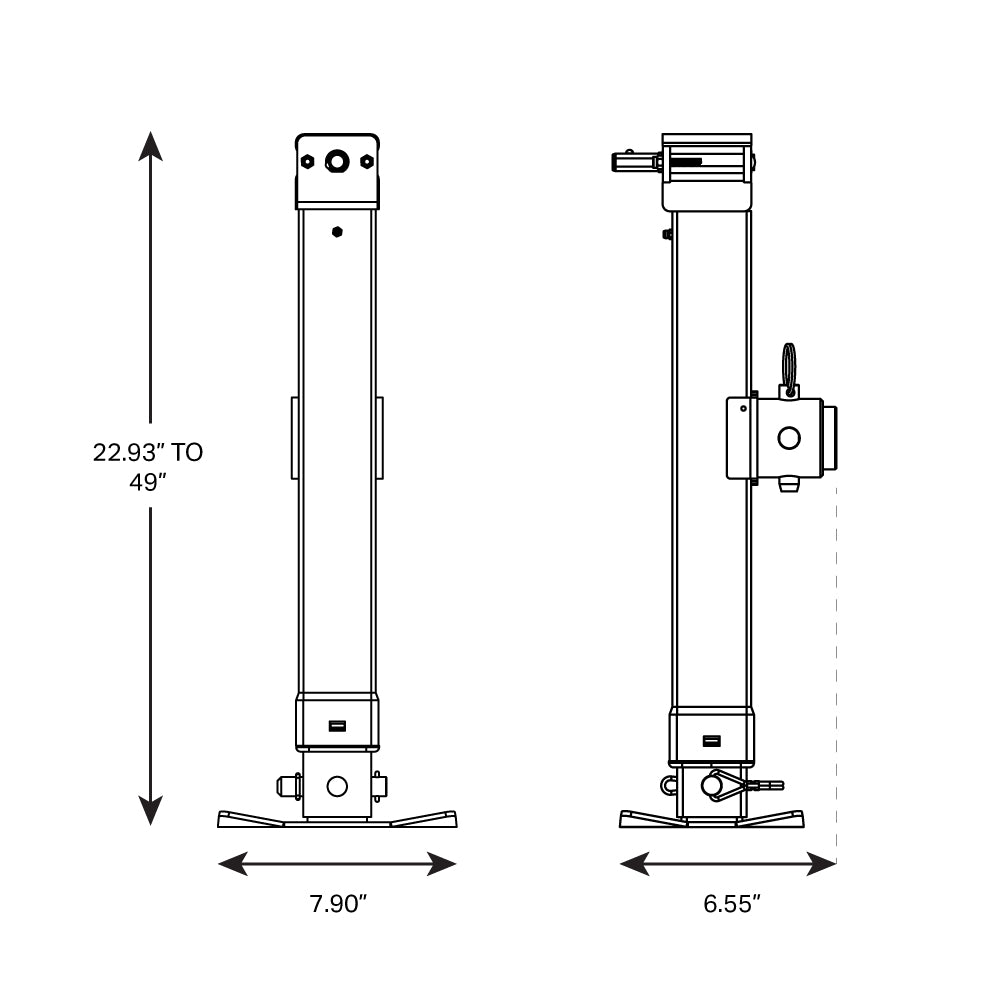

Dimensions

Item Height: 23 inches

Item Width: 8 inches

Item Depth: 8 inches

Downloads
JX7-P Manual
JX7-P Quickstart Guide

FAQ

HAVE A QUESTION?

You know how they say there's no such thing as a dumb question? Well, they were wrong, but here are some common not-so-dumb ones. Still flummoxed? Contact our customer support.

Contact Us

What is the total lifting capacity of the JX7-P?

The JX7-P supports a maximum 7,000 lbs static load, with 1,800 lbs lift capacity (manual crank) and 900 lbs (with power drill)—ideal for heavy-duty and commercial trailers.

Can the JX7-P be powered by a cordless drill? What voltage is recommended?

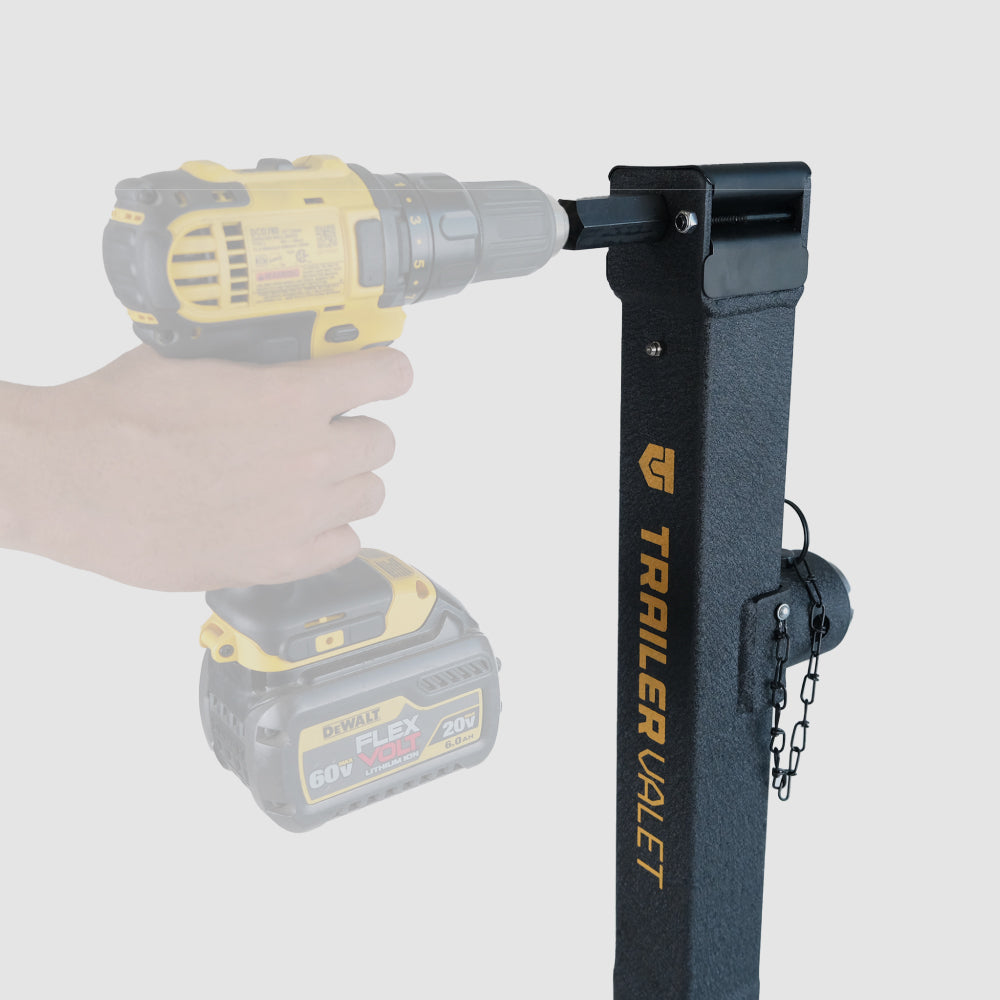

Yes. The JX7-P includes a Trailer Valet drill attachment and works with standard 20–24V cordless drills for fast and effortless lifting.

What is the difference between static and lifting capacity?

Static capacity (7,000 lbs) refers to the weight the jack can support while stationary. Lifting capacity refers to active lifting: 1,800 lbs manually or 900 lbs with a drill.

How does the drop leg improve height adjustment?

The drop leg adds 13.6 inches of extension, working with 14.5 inches of internal lift for a total of 28 inches of adjustability, making it easier to adapt to different trailer heights.

What is the minimum and maximum height range?

The jack measures 23.25 inches (minimum height) and extends up to 51.35 inches when fully deployed.

Is the jack compatible with weld-on pipe mounts?

Yes. The JX7-P features a male weld-on pipe mount with a removable female jack, providing a secure connection while allowing easy removal when needed.

Can the jack be removed after installation?

Absolutely. The removable design allows you to detach and stow the jack for added safety or improved clearance during transport.

Does the JX7-P include a hand crank and drill attachment?

Yes. Each unit includes both a manual hand crank and a Trailer Valet drill attachment, giving you flexible operation options right out of the box.

What materials and coatings are used for durability?

The JX7-P is built from one-piece welded steel tubing and finished with a wrinkle black powder coating for strong resistance against rust, corrosion, and environmental wear.

How do I know when the jack is fully extended or retracted?

The JX includes clearly marked warning and stop indicators on the inner tube to prevent over-extension and protect the internal gear system.
