5X - Déménageur de 5 000 lb

$469.00; $469.00
Unit price: per

Le Trailer Valet 5X est, à kilos près, le meilleur de sa catégorie pour sa capacité de remorquage et sa conception compacte. Il offre une polyvalence exceptionnelle grâce à son cric intégré. Au lieu de conduire votre véhicule jusqu'à votre remorque, utilisez ce cric robuste pour la conduire jusqu'à votre véhicule d'attelage. Le 5X facilite également le stationnement ou le déplacement de votre remorque dans les espaces restreints ou les allées, ainsi que son stationnement dans un garage. Il vous permet de négocier les virages et d'effectuer de légers ajustements de direction pendant que la remorque est en mouvement. Sa capacité de remorquage atteint 2 267 kg (5 000 lb) de poids de remorque et 226 kg (500 lb) de poids à la flèche.

Free Delivery

Buy Now, Pay Later

3-Year Warranty

IT DOES THE HEAVY LIFTING

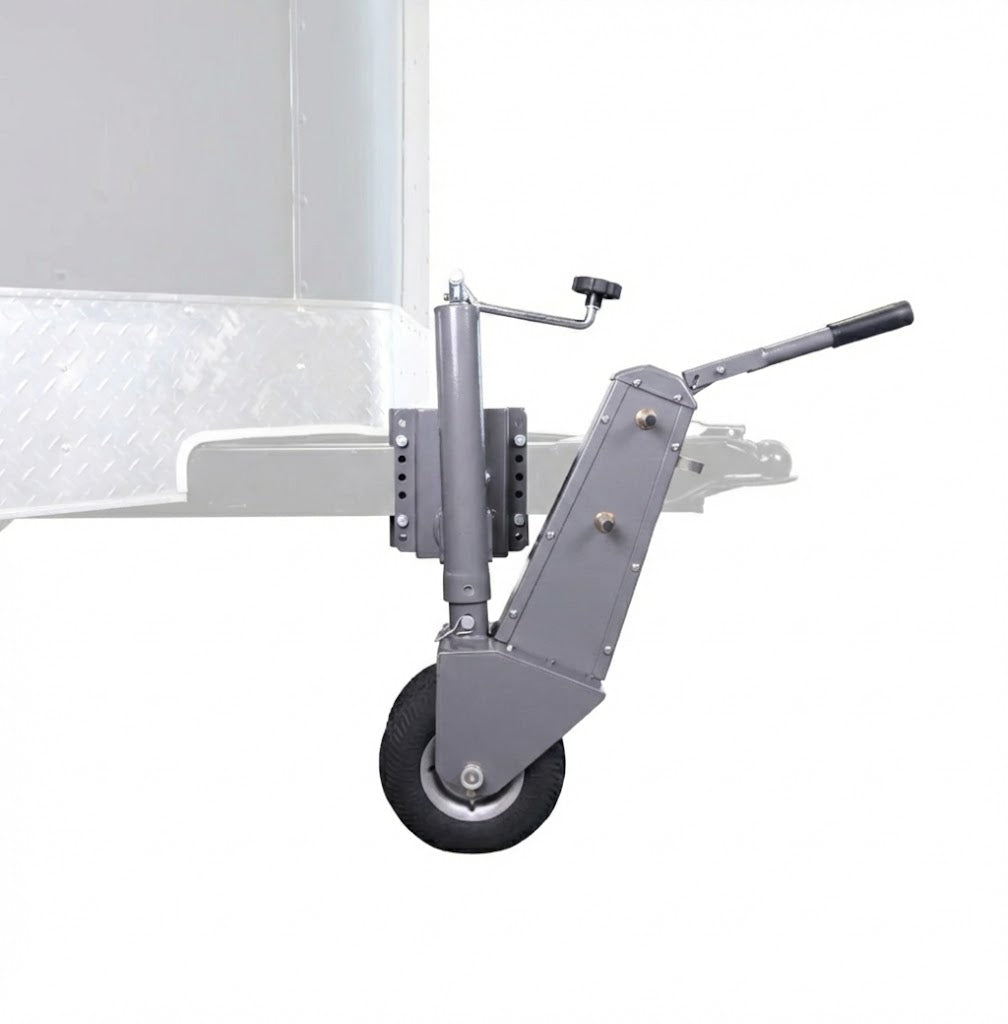

The Trailer Valet 5X is a trailer dolly with a built-in heavy-duty jack, making hitching and maneuvering easy, with a 5,000 lb towing capacity on flat surfaces.

HIGH TECH

Built for long-term use, the Trailer Valet 5X detaches to avoid water exposure and moves trailers up to 5,000 lbs, with drill-powered assistance using a 20–24V cordless drill.

HITCH EASILY

The 5X mounts to your trailer frame and swivels for easy stowage. Raise, unhitch, level, and position your trailer easily when you arrive at your destination.

SAFETY MEASURES

This mover features never-flat tires and an auto-brake for control. Offers traction on varied surfaces and can push trailers up a 5% grade on packed ground.

Shop 5X

TECH SPECS

Specifications
Hauling Capacity: 5,000 lbs
Static Tongue Weight lbs: 500 lbs
Tongue Weight: 250 - 500 lbs
Optimum Grade: The Mover can push or pull a trailer on a flat even surface. Never pull your unit up or down any kind of incline.
Wheel Size: 9 inches
Mounting Type: Bracket
Wheel Type: Solid Rubber
Item Net Weight lbs: 57 lbs
Warranty: 1 Year Manufacturers Limited Warranty

Includes: 5X unit, 5X hand crank, Drill Attachment (TVDA), 5X Mount Bracket Set and Hardware

Dimensions
Item Height: 34 inches
Item Width: 8 inches
Item Depth: 23 inches

Downloads
5X Manual
5X Quickstart Guide

FAQ

HAVE A QUESTION?

You know how they say there's no such thing as a dumb question? Well, they were wrong, but here are some common not-so-dumb ones. Still flummoxed? Contact our customer support.

What dimensions can the Trailer Valet handle? What is the gear ratio?

A Trailer Valet can handle any sized trailer provided it meets the weight limits of that particular model. We recommend inviting a second person to guide your trailer from the opposite end, especially in tight spaces, as turning requirements can vary widely according to the trailer’s dimensions. Each Trailer Valet model has a high and low gear train. The 5X has a low gear ratio of 12:1 and a high gear ratio of 4:1.

What vehicle types does the trailer valet support? Will the Trailer Valet work on my double-axle trailer?

Due to its design, the 5X is ideal for boats and cargo trailers. Yes, it will work on double-axle trailers if the total tongue weight does not exceed a limit of 500 lbs for the 5X.

What weight will the trailer valet support? Will the Trailer Valet work on inclines?

The 5X supports up to 5,000 lbs. Other Trailer Valet models are capable of supporting variable loads. Each Trailer Valet model can handle its own degree of slope depending on the weight of the trailer and tongue, surface type, and trailer weight distribution. We welcome you to send our support team a picture of the full surface (with clear surface type and angle of slope) including your trailer specs. We can help determine suitability for any of our products and make a recommendation. The MV supports recreational vehicles (RVs), boats, and other similarly sized towable vehicles.

My trailer uses a standard A-Frame hitch assembly loaded with a battery, winch and propane tank, all of which consume space on the hitch tongue. Would the XL work with this?

The 5X would require space on the hitch for the mounting bracket. If this space is not available, we would recommend considering one of our coupler/hitch mount options.

Can an electric drill be used to operate the trailer valet? Is there a standard socket that can be used as an electric drill attachment?

To move the 5X, you can use a drill and an optional adapter TVDA (TVDA included with the TV5XDA) using the drill attachment; however, this method should only be used when moving your trailer on level surfaces. To avoid injury, the user should have a firm grip and ensure brake disengagement. We recommend using a cordless, non-impact electric drill with a torque output of at least 200 lb-in. We do not recommend using electric drill attachments other than the one designed specifically for the Trailer Valet; our attachment employs a unique design to ensure a snug fit on the gear axles. The drill attachment can be purchased online or over the phone.

What is the proper tire inflation? Can the Trailer Valet remain attached to the trailer while towing?

80 psi. *Note: Pneumatic tires that require inflation are only found on older 5X units. New units are solid rubber Only the 5X is able to be put into a stow position. You must crank its wheels off the ground, pull the pin which holds it in a vertical position, rotate the unit horizontally and reinsert the pin. However, this is not possible with any other Trailer Valet unit: they must be removed from the coupler and properly stored before trailering.

Can the Trailer Valet remain attached to the trailer while towing? What happens if you lose control of the trailer?

Only the 5X is able to be put into a stow position. You must crank its wheels off the ground, pull the pin which holds it in a vertical position, rotate the unit horizontally and reinsert the pin. However, this is not possible with any other Trailer Valet unit: they must be removed from the coupler and properly stored before trailering. The Trailer Valet has an integrated brake which will automatically engage when the handle is released. However, the brake works most reliably on flat surfaces.

Is the brake progressive? Will the Trailer Valet work on dirt, gravel and grass surfaces?

Our brake acts as a dead man’s or emergency brake. The Trailer Valet brake hinders all horizontal movement, but cannot slow down during use. Speed is controlled only by the crank. The 5X can operate only on tightly packed grass with hard soil or tightly packed gravel. We do not recommend using any of our models on other soft or loose surfaces. The Trailer Valet will not move on sandy, muddy, rocky, or severely bumpy ground. If you are unsure whether or not your surface is tightly packed enough, send a clear picture of the surface including your trailer specs to our support email.

What happens if I'm having issues such as screws coming loose out of the tire axle, the chain is loose, or I can't turn my trailer?

Contact our customer support team immediately, they'll be more than happy to assist you. Email support@trailervalet.com

Is there a Maintenance Kit For my TV5X?

Yes, The TV5XMK Maintenance kit includes all you need. 7 x Gear Bushings 10 x Panel Screws 4 x C-Clips for Drive Shaft 1 x Grease Tube Axle Screw Assembly (2 axle bushings and brass spacers, 2 axle screws, 2 screw casings) 5X Axle Chain. No special tools are required. Basic hand tools should be sufficient for installing the parts included in the kit.
