Cric de forage latéral Trailer Valet JX 7 000 lb

$249.00; $249.00
Unit price: per

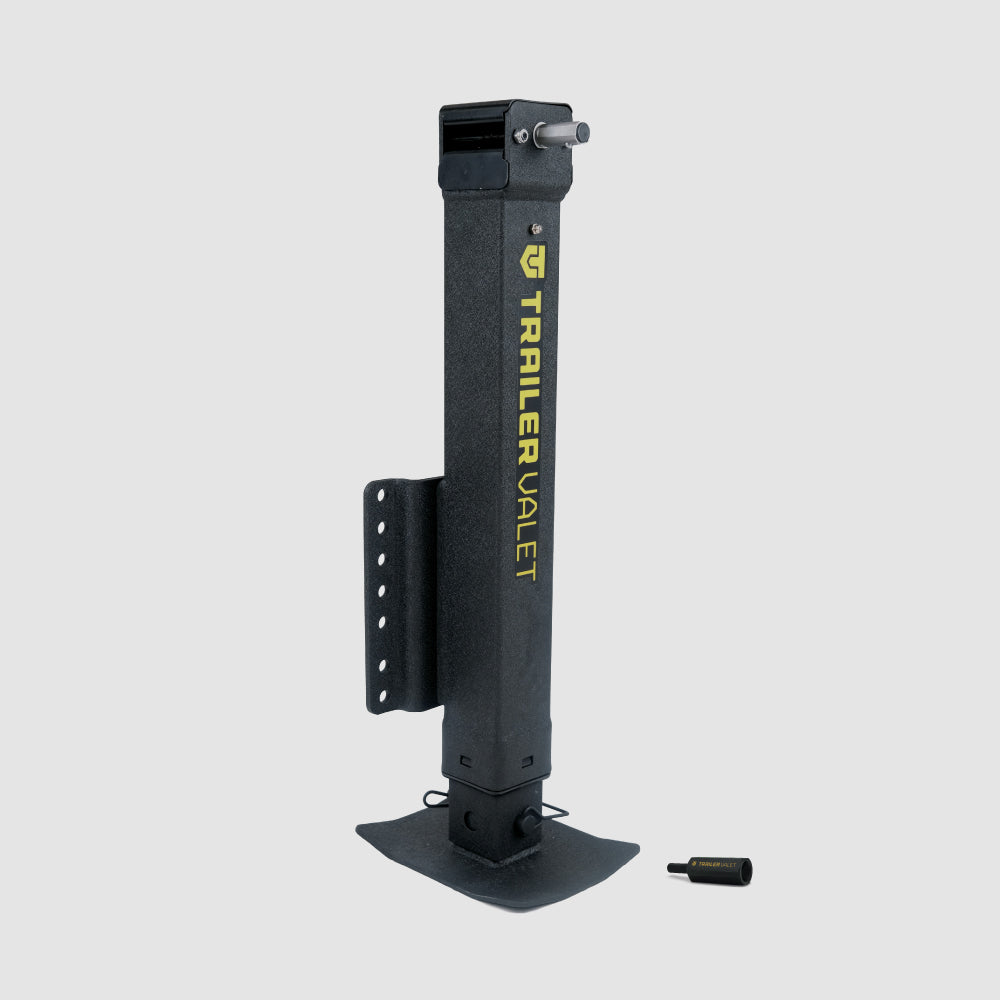

Le TVJX7-S est un cric de remorque robuste à manivelle latérale, conçu pour la vitesse, le confort et la durabilité. Avec une capacité statique de 3 180 kg, il peut soulever jusqu'à 820 kg manuellement ou 400 kg avec une perceuse sans fil 20-24 V grâce à l'accessoire fourni. Il offre un réglage en hauteur total de 69,9 cm, une plaque de base soudée pour plus de stabilité et un manchon de protection pour un fonctionnement fluide et une protection optimale. Sa construction robuste, composée d'un tube carré soudé et d'un revêtement thermolaqué noir résistant à la corrosion, assure une performance durable.

Free Delivery

Buy Now, Pay Later

3-Year Warranty

Top Features

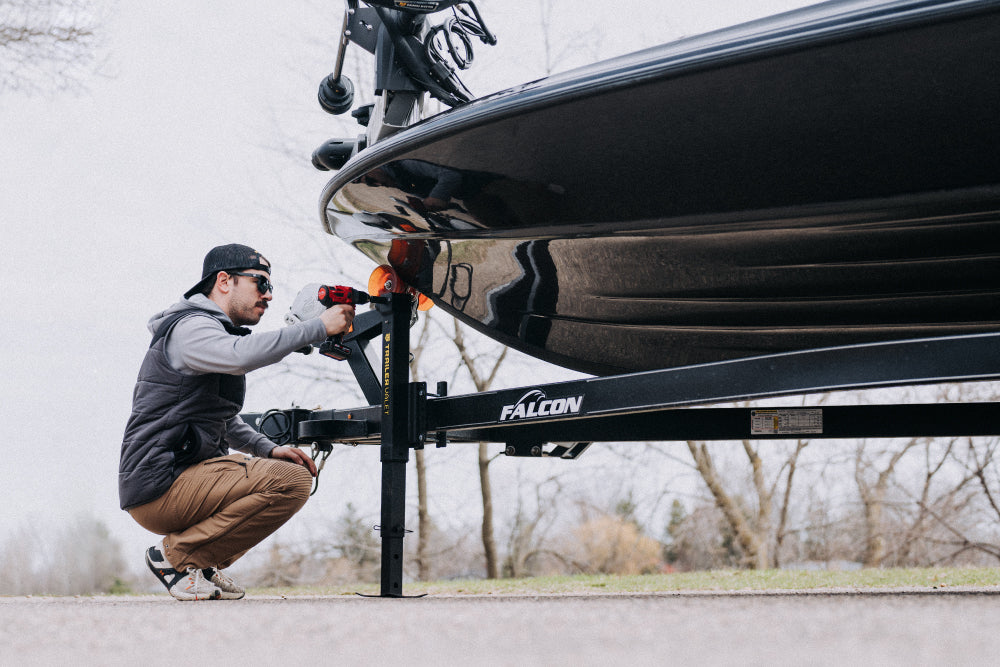

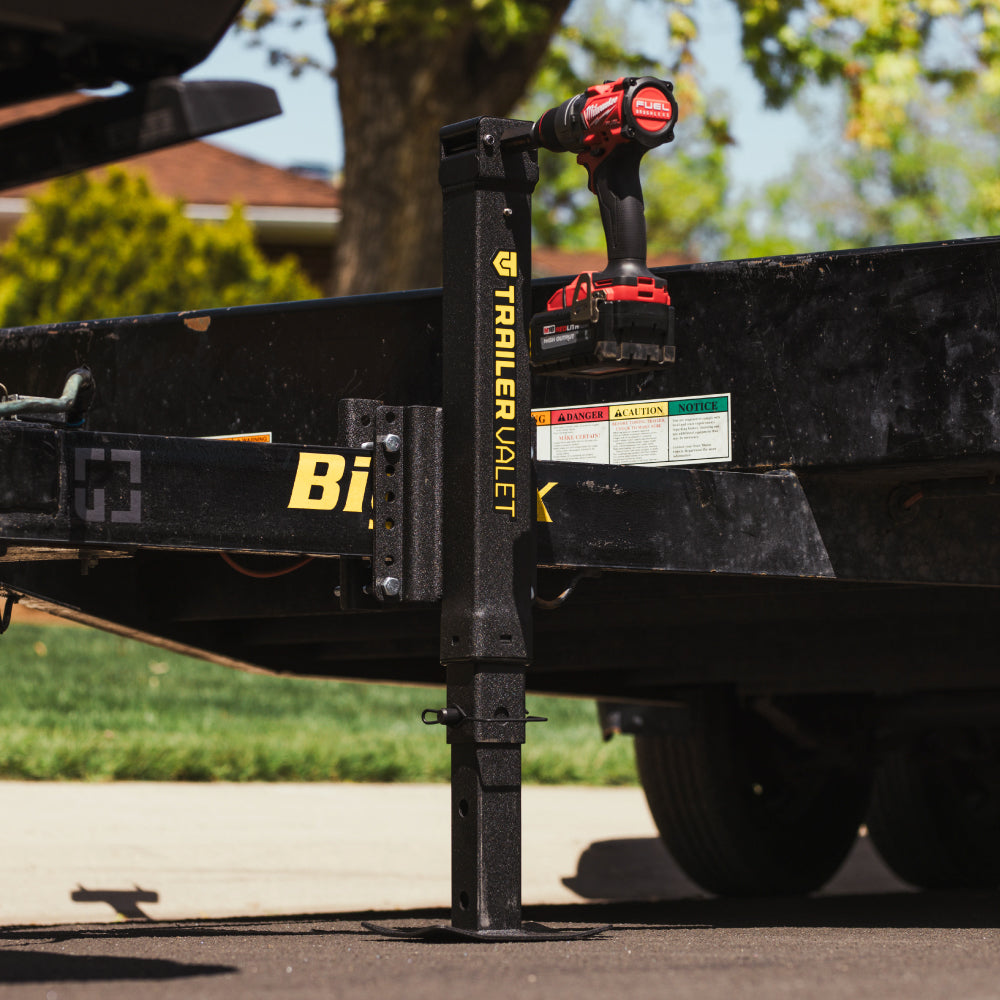

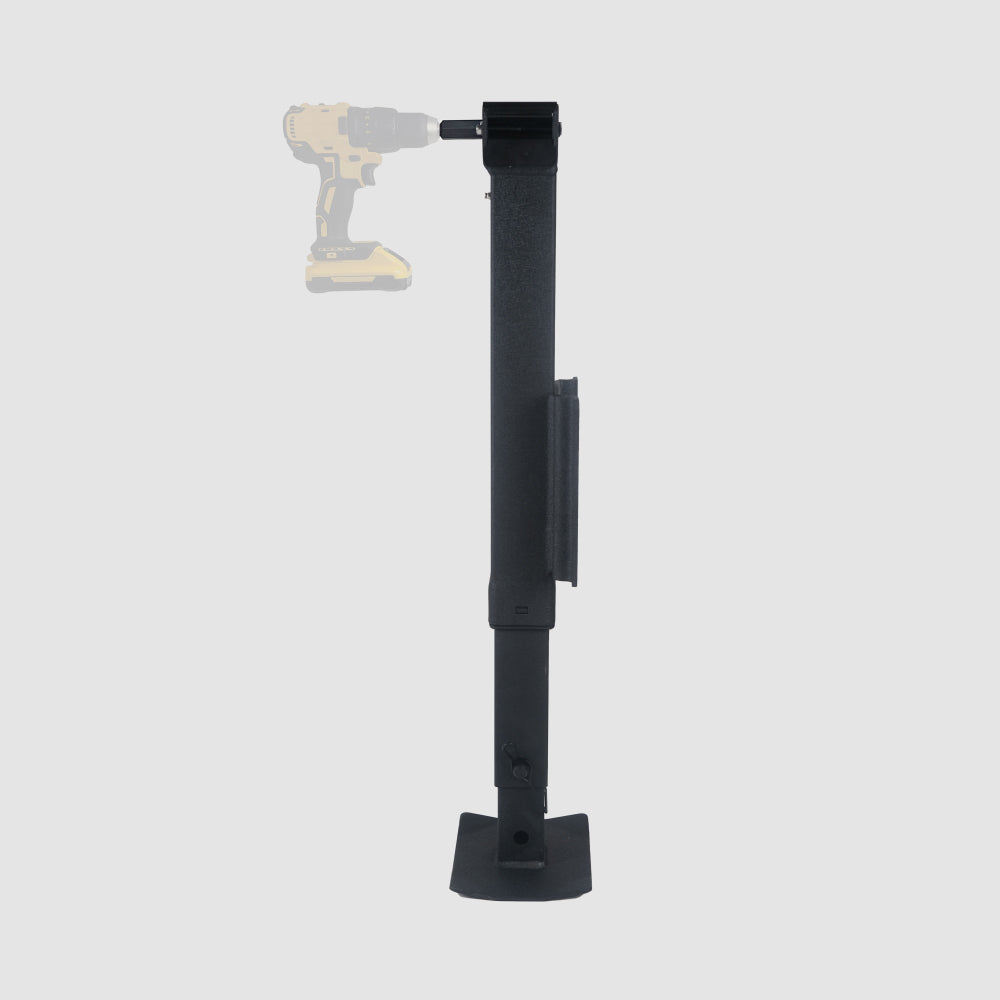

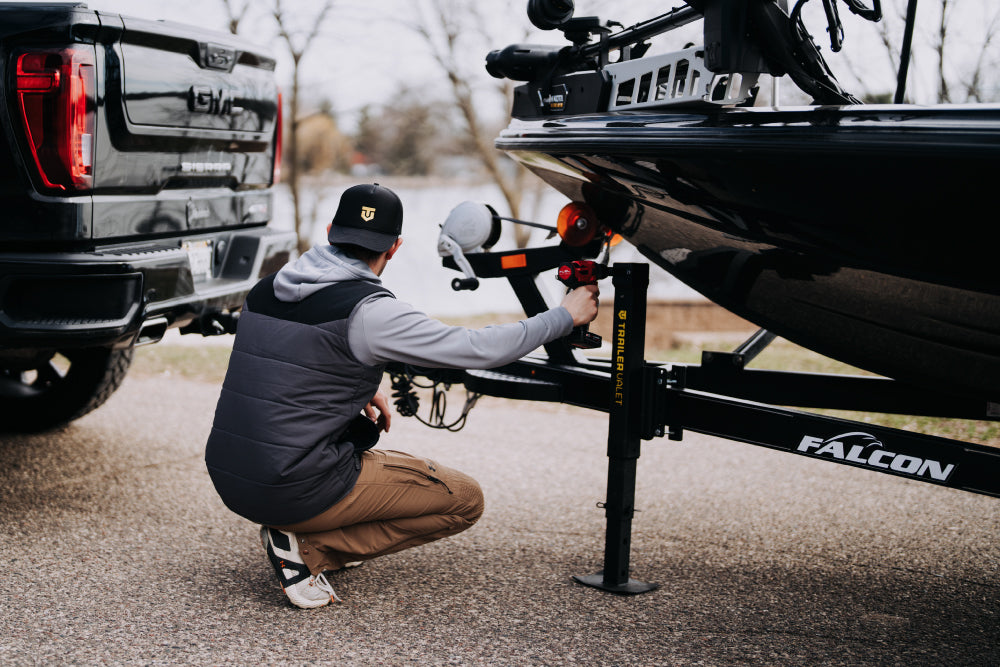

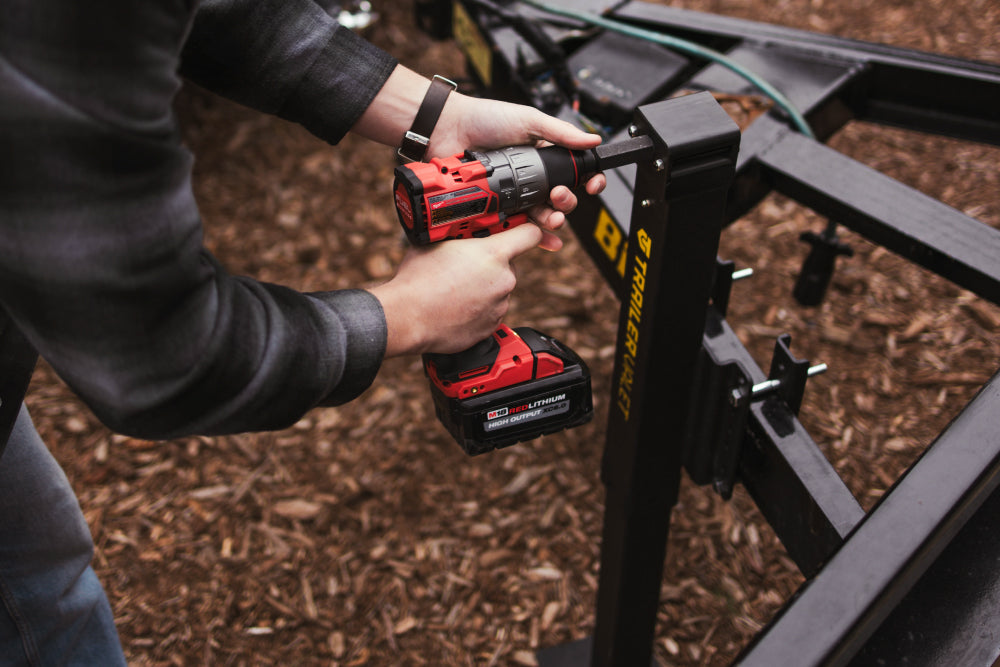

The JX7-S features a hand crank and 20–24V drill attachment, letting you raise or lower your trailer jack quickly without slow electric motors or manual strain.

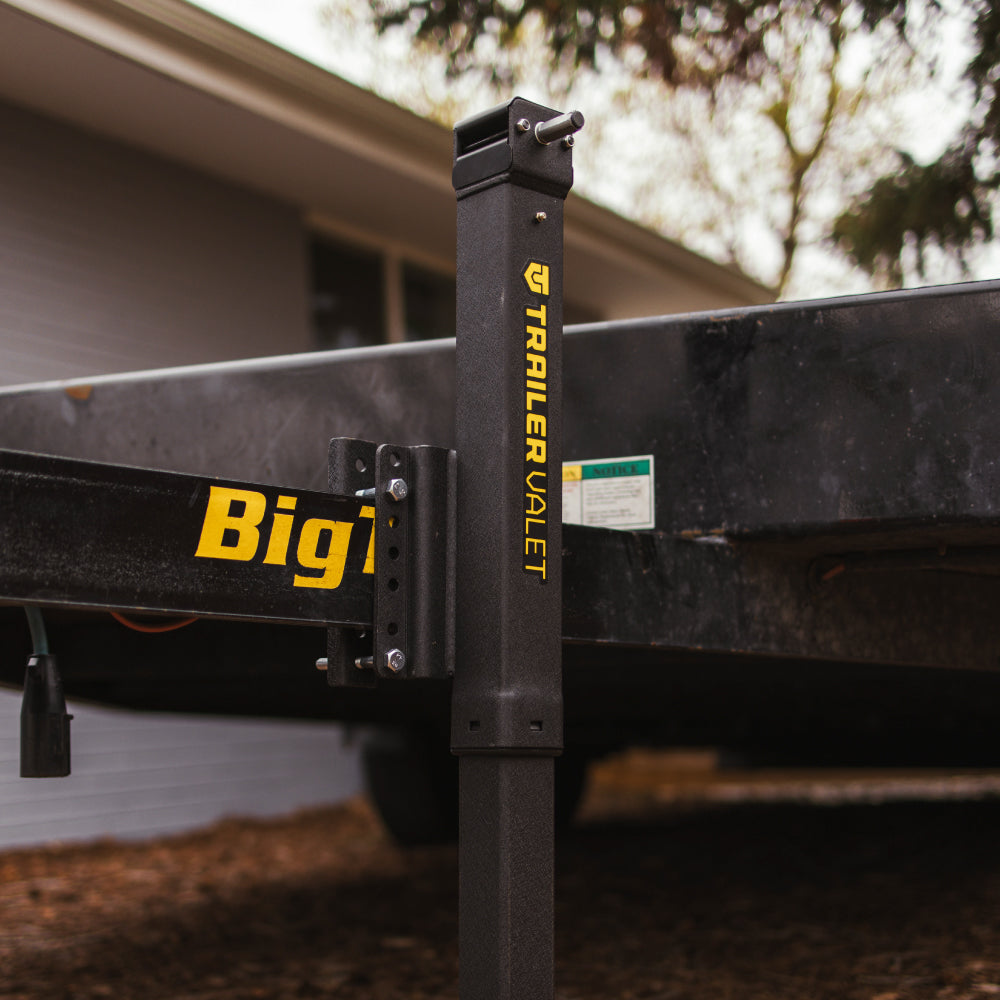

With a 7,000 lb static capacity, the JX7-S lifts 1,800 lbs by hand or 900 lbs by drill. It mounts easily with a fixed bracket for a perfect fit without welding.

The TVJX7-S offers 27.3" total height, a welded footplate, weather sleeve, smooth gear system, and durable powder coat for safe, long-lasting trailer leveling.

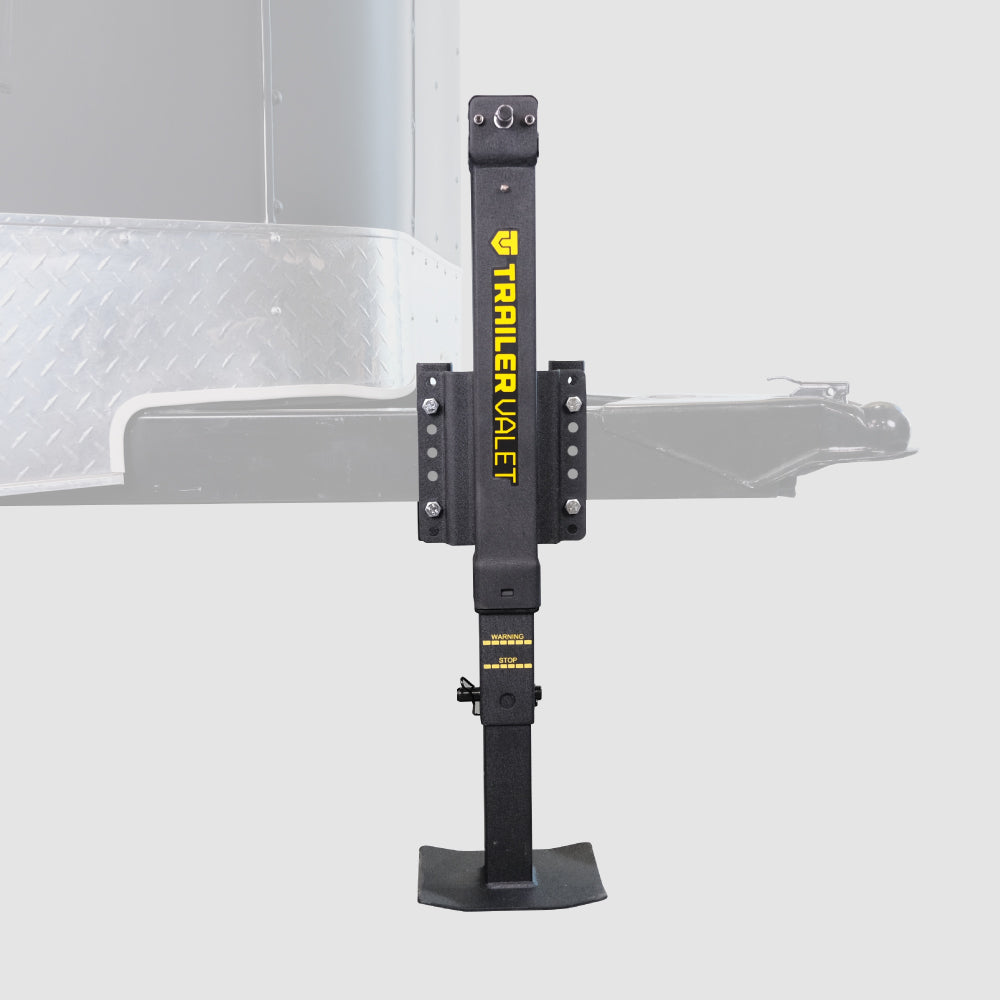

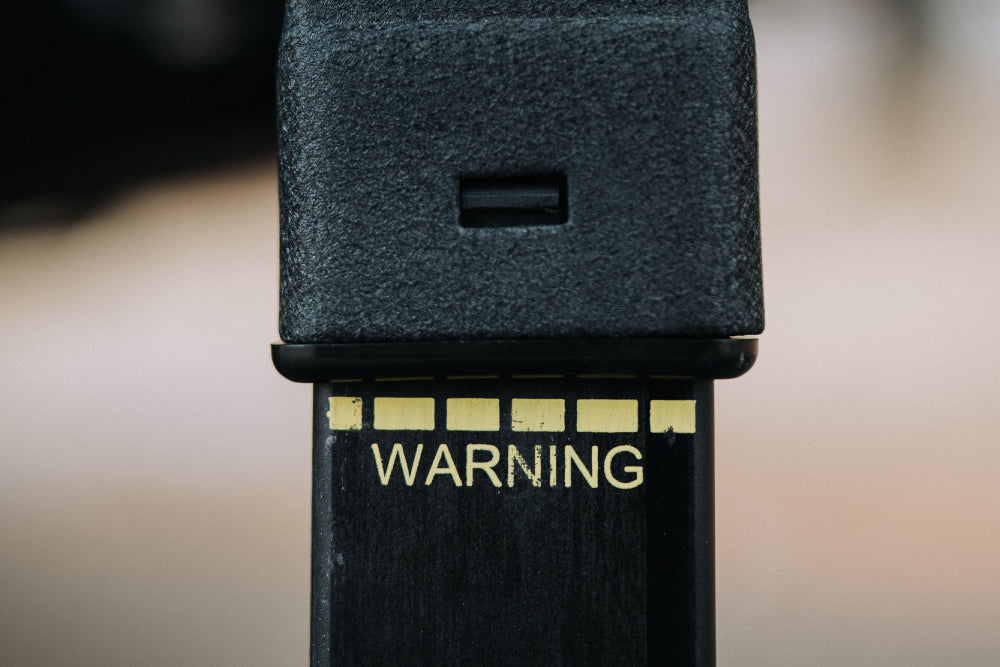

The JX series has Warning and Stop indicators on the inner tube to prevent over-extension, protect gear travel, and keep equipment safe while extending jack life.

Shop JX7-S

TECH SPECS

Specifications
SKU: TVJX7-S

Static Tongue Weight: 7,000 lbs

Dynamic Lift Capacity: 1,800 lbs

Lift Capacity w/ Drill: 900 lbs

Mounting Type: Side

Item Net Weight: 27.5 lbs

Includes: Jack, drill attachment, hand crank, and mounting hardware.

Dimensions

Item Height: 23 inches

Item Width: 8 inches

Item Depth: 8 inches

Downloads
JX7-S Manual
JX7-S Quickstart Guide

FAQ

HAVE A QUESTION?

You know how they say there's no such thing as a dumb question? Well, they were wrong, but here are some common not-so-dumb ones. Still flummoxed? Contact our customer support.

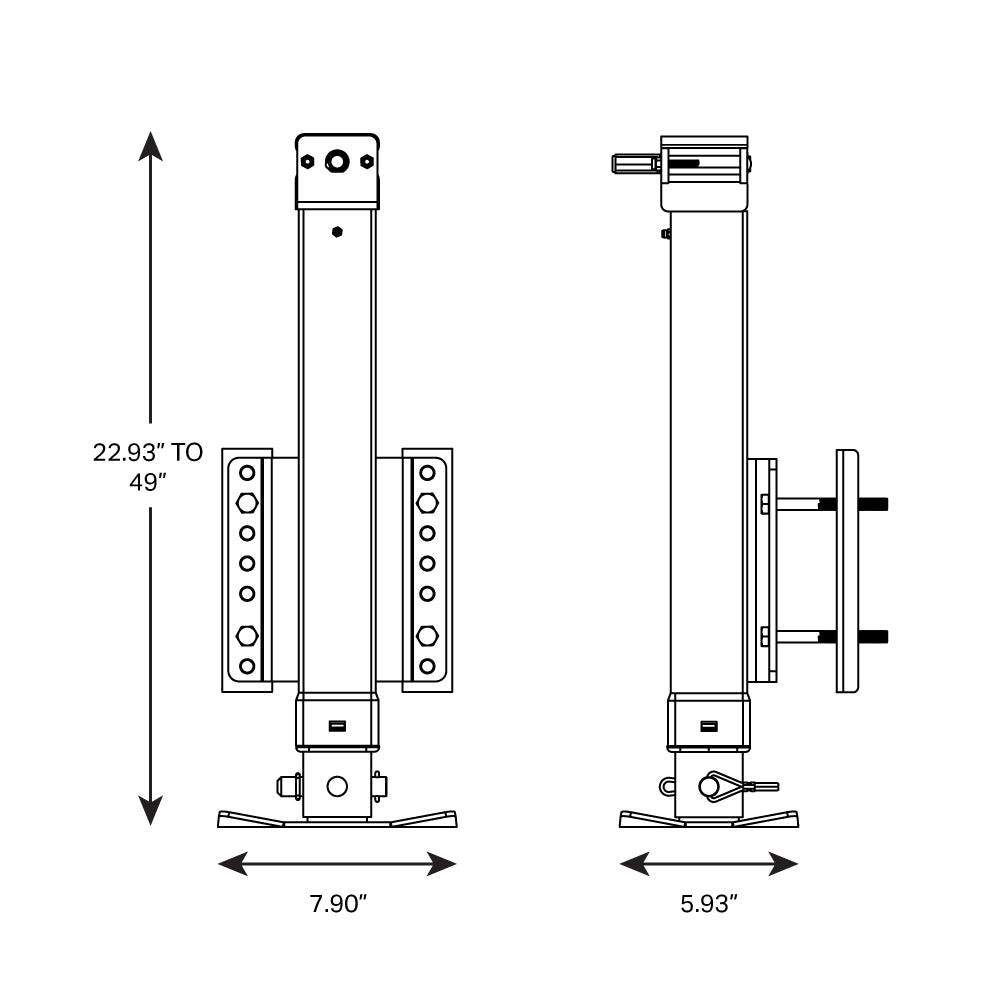

What are the unit dimensions and total extension?

Width: 8 inches Depth: 8 inches Height (retracted): 23 inches Lift extension: 13 inches Drop leg extension: 13 inches Total extension: 26 inches Final height with full extension: 49 inches

How do you recommend propping up the trailer for installation?

We suggest using your existing jack, stabilizer blocks, jack stands, or wood blocks. Make sure you have at least 16–18 inches of clearance to properly install the JX.

Do I need to grease the gears before use?

No. The JX comes pre-lubricated and ready to use. We recommend greasing the internal acme rod every 90 days via the grease fitting. You can also apply general-purpose grease to the miter gears by removing the gearbox cap as needed.

What is the load capacity of the 7KJX?

7,000 lbs static load 1,800 lbs lift (manual crank) 900 lbs lift (with power drill adapter)

Can I use a drill with the JX? What type and torque setting are recommended?

Yes. Any 20V–24V compact non-impact drill can be used with the Trailer Valet Drill Attachment. Keep torque as low as possible while still lifting, and always engage the drill slowly—never pull the trigger abruptly.

Can I use a standard socket as a drill attachment?

No. We do not recommend using standard sockets. The Trailer Valet Drill Attachment is specifically designed for a secure fit—using other attachments may damage the driveshaft or shatter the socket.

Does the JX come with a caster wheel?

No. We currently do not offer a compatible caster wheel for the JX 7K.

Does the JX include mounting hardware?

Yes. Mounting bracket bolts are included for trailer tongues up to 3.75 inches thick. Longer bolts can be used if needed.

How much does the JX weigh?

The unit weighs 27.5 lbs..

What is the capacity of the MV Pro if using a mount bracket?

When using the mounting bracket, the rated capacity is reduced to 8,000 pounds. This is to account for any issues posed by potential side-loading of weight on your trailer.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Great addition to my tool

"Great addition to my tool trailer, now I can actually open my trucks tailgate! And the build quality is second to none. The convenience of the drill option definitely saves time."

— Seth A. (5/5)

This is a very nice

"This is a very nice trailer Jack. It have a good gear ratio so raising the front of my 4 place snowmobile trailer even when loaded is easy. My drill motor did not have enough torque to lift the trailer so I have to use it manually"

— David C. (5/5)

Using the JX7K on my

"Using the JX7K on my 6,000 lb food trailer. It's moves fast and smooth in either direction ."

— George N. (5/5)

J7 side mount trailer jack

"I cannot believe I did not get this trailer jack earlier! Besides buying ice cranky my boat up and down up and down by hand is the thing I hate the most I was skeptical but just installed it and it works fantastic!"

— Andy (5/5)

Love it!

"This thing is awesome! Great job shipping, communication during, and follow up. I am extremely impressed with the quality of the JX7! Really love the idea and ease of installation and use of a great product!"

— Monty (5/5)

Q&A

Any plans to offer a version with a spud so that it can be rotated while driving and removed/secured while left at the boat harbor?: Hello! Thank you for reaching out. In regards to your question, not at the moment but we can forward this to our engineering team and they can certainly look into this. As a alternative jack that can do what you are looking for is our JX3-SS! This jack is perfect for boats and also can be turned and stowed like you requesting, along with the body of the jack being fully removed. Also, our JX7-P (pipe mount) jack can be removed from the trailer and stowed, you would just need to be able to weld it. It's the exact same jack as the JX7-S in terms of function. I can provide links to both jacks here for you! JX7-P - https://trailervalet.com/products/trailer-valet-jx-7k-welded-pipe-mount-jack JX3-SS - https://trailervalet.com/products/tvjx3-ss
What size is the Zerk fitting? My broke and I am not sure what size to order for a replacement: Hello! Thank you for reaching out, we can certainly assist you. The size for the Zerk fitting is Metric M6 x 1.0 (hex design) please feel free to reach out to support@trailervalet.com if you have any further questions thank you!
