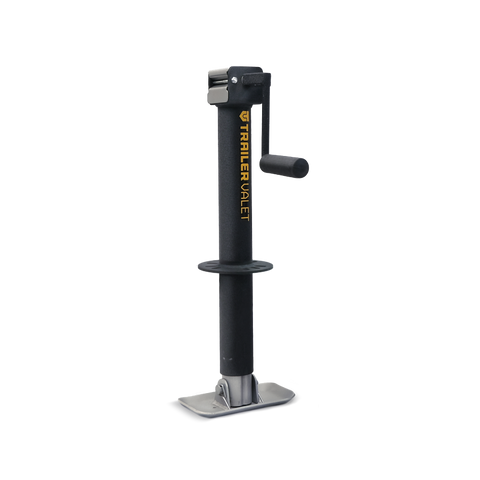

Certified Refurbished Trailer Valet JX 5K Center-Mount Drill Jack

$112.00
$112.00

The Trailer Valet JX 5K Center is a powerful, dual-operation jack designed for maximum efficiency. With a 5,000 lb static capacity and lift capabilities of 1,600 lbs (manual) or 800 lbs (with a 20-24V drill and included Drill Attachment), it saves you time and effort. Its patented gear technology enhances performance while reducing heat, and the weather-resistant shield with black powder coating ensures durability. Upgrade your trailer jack—move forward with ease and power!


Please note that every certified refurbished unit is a final sale.

The Trailer Valet JX 5K Center is a manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment

It has a It has a static capacity of 5,000 lbs and a lift capacity of 1,600 lbs with the hand crank and 800 lbs lift capacity with the drill. Its patented gear material composition delivers maximum efficiency while reducing heat retention.

The JX 5K Center comes with weather-resistant shield protection, and is topped with our signature wrinkle black powder coating so that you can go further, longer.

It’s time to MOVE FORWARD and replace the standard manual jack on your trailer! Power it up and save time, effort, and hassle and get to what you love most. Comes standard with foot plate and a Trailer Valet Drill Attachment. JX Wheel attachment sold separately. (JX5-C - 12:16 Gear Ratio, 5,000 lbs Static capacity) (JX2-C - 1:1 Gear Ratio, 2,000 lbs Static capacity.)

If you have any inquiries about if this product will work for your specific trailer or environment, please reach out to our Support Team at support@trailervalet.com


All our units are certified refurbished by trained Trailer Valet technicians, ensuring each product meets high standards for performance and reliability. Each unit undergoes thorough testing and reconditioning to ensure it is functionally identical to a new model. Plus, you'll receive a 1-year limited warranty with your purchase.

Please note that every certified refurbished unit is a final sale. By choosing refurbished, you are supporting our environmental commitment to extend the life of quality components and minimize waste. Thank you for helping us maximize the use of our materials.

If you have any questions, please contact us at support@trailervalet.com or call 844-846-9344. We’re always happy to help!

Features

  • Includes Trailer Valet Drill Attachment (TVDA), footplate, and hand crank
  • Zinc-rich coating, nickel plating and finished with our signature wrinkle black powder coating
  • Patented Trailer Valet Gear System (12:16 Ratio)
  • Patented gear material composition delivers maximum efficiency while reducing heat retention
  • Weather resistant shield protection
  • Manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment
  • Center mount system
  • Compatible with JX Jack Wheel Attachment (TVJXMW), sold separately

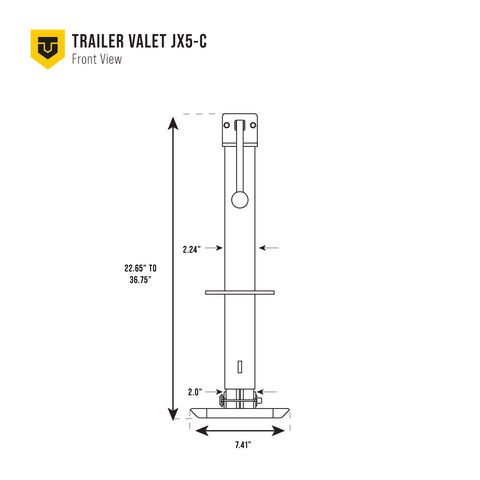

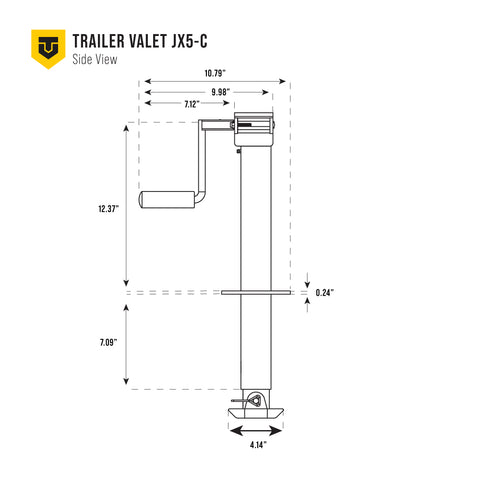

  • Retracted height: 23in, Extended height: 37in, Total travel: 14in
  • Static Capacity (with footplate): 5,000 lbs Static Capacity (with wheel): 1,200 lbs Lift Capacity: 1,600 lbs Lift Capacity w/ Drill: 800 lbs
  • Outer tube diameter: 57mm, Inner tube diameter: 51mm
  • Clearance (from bottom of bracket to top of jack): 13.5in

Specifications

  • Dynamic Lift Capacity Lbs: 1600
  • Static Tongue Weight lbs: 5000
  • Static Weight Capacity with Footplate Lbs: 5000
  • Mounting Type: Center
  • Item Height Inches: 23
  • Item Width Inches: 5
  • Item Depth Inches: 6
  • Item Net Weight lbs: 15
  • Warranty: 1 Year Manufacturers Limited Warranty
  • Includes: Includes Jack, Drill attachment, footplate, and hand crank

How do you recommend propping up the trailer for installation?

A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16-18” of height to properly install the JX.

Can the center jack (JXC) be welded rather than bolted?

Yes, at your discretion. But note it will void any warranty and return.

Do I need to grease the gears before use?

No, the JX will come already lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual.

What is the load capacity of the JX?

JX2-C & JX2-S: 1,200 lb standard lift, 600 lb lift with power drill, and 2,000 lb static capacity. JX5-C & JX5-S: 1,600 lb standard lift, 800 lb lift with power drill, and 5,000 lb static capacity.

What is the recommended drill torque setting?

We recommend keeping the torque setting as low as possible while still lifting the trailer. A heavier load will require a higher torque setting.

Does the JX come with a caster wheel?

Each JX comes standard with a foot plate. Jack Wheels are available as an option (TVJXMW)

Does the JX Center Mount come with bolts for installation?

Yes. All JX Center jacks come with three bolts and lock washers for installation to your trailer frame.

What type of Mount Bracket comes with the JX2-S and JX5-S?

The JX2-S comes with a spring loaded pull pin swivel bracket for a Max Frame Size Fit: 4.75 in high, 3.75 in deep . The JX5-S comes with a same size pipe mount swivel bracket and stow pin. (Only the JX5-S can also use the TVJLMB (Sold Seperately) for frames from 4.75 inches to 5.75 inches) Note: both jacks need at least 8” of clearance to install.

What is the best position for the JX5-S Mount Bracket to be installed?

The connection point should be in the low position (recommended). However, it can be flipped to the high position if needed.

How much does the JX weigh?

JX2-S: 23 lbs JX5-S: 25 lbs JX2-C: 14 lbs JX5-C: 14 lbs

Can the JX be submerged in water?

The JX can be submerged in water for brief periods. However, we highly recommend rinsing the JX with fresh water after heavy salt water exposure.

Can the JX be stored outdoors?

Yes, the JX has three layers of weather protection and can be stored outdoors with your trailer.

What kind of drill should I use with the JX?

Any 20V-24V compact non-impact drill can be used with the Trailer Valet Drill Attachment.

JX Series Circular Mount | Difference Between Static Weight and Dynamic Weight Capacity

How to Grease the JX Series and Repair the Nozzle

How to Replace / Repair the JX Series Gears and Avoid Overextending It

How To Replace The Trailer Valet JX Inner Tube

Deep Dive on the NEW Trailer Valet JX Series - Drill Powered Jacks

How to Install the JX Drill Powered Jack Series

How the JX Series Jacks are different from other trailer jacks on the market

JX SERIES UNBOXING | Unboxing all 4 NEW Trailer Valet JX Drill Powered Jacks

First Look at the NEW Trailer Valet JX Series, Drill-Powered Tongue Jacks

TVJX5-C Operating Manual
Download

TVJX5-C Quickstart Guide
Download

Related Products

Overall rating: 4.352941 / 5 from 17 reviews.

AI Generated Review Summary

Summary topics

Review topics: [quality, jack, drill, trailer].

Review highlights

Reviews

My center stand

"I had a battery 12 volt 3500 lb. center mount jack stand. The switch was problematic, sometimes it worked up and down, sometimes just one way, so I would have to use the crank handle. I always have a cordless drill in the truck and shop The JX 5K lets me use the drill or crank handle, and it is rated 5000 lb. It works good!"

Rt S. (5/5)

The trailer jack is better

"The trailer jack is better than the last jack that I purchased"

Montyle P. (4/5)

I have officially leveled up my trailer jack game

"This refurbished unit looks to be in brand-new condition. The trailer jack works excellent with the hand crank smooth and with minimal effort. Attaching the included drill adapter is a true game-changer. Using the drill adapter with an 18v Milwaukee makes raising and lowering the trailer with the jack a cakewalk."

Nick B. (5/5)

I would rate the overall

"I would rate the overall quality of materials, workmanship and design as very good. The only flaw I can see is that the detent ball system for keeping the crank handle attached is weak to the point that it may come off during travel."

John L. (4/5)

Much better than a electric jack

"Trailer Valet’s jack has been great. When my electric tongue jack shut down on me after 2 years, and they always do at the most inconvenient times, luckily I found these guys. It’s just as easy as an electric jack without the need for RV batteries and the worry of electrical problems."

Jeffrey V. (5/5)

Great jack which can be used at other places than the tongue.

"I love this jack. It works great with the jack handle or with a battery powered drill. The mounting is easy and I love the fact that there is a grease fitting so you can lube it to add to it longevity."

Stan M. (5/5)

A great upgrade

"I replaced a damaged jack with this. Being able to use a drill to power it is fantastic. A nice compromise between a conventional and powered jack. The factory refurbished unit looked brand new."

Robert J. (5/5)

Refurbished one that was not fixed

"I took a chance on a refurbished jack and it clearly was not fixed. The push button that holds the handle in place does not work. Oh well."

Tim C. (3/5)

Haven't used much yet

"Seems to be real good"

James G. (4/5)

Great product!

"So far has been great for my travel trailer. Super easy installation and new hardware included. Had to upgrade my drill to a Milwaukee as these demand a little more torque than my old Hitachi was able to produce."

Brian (5/5)

Q&A

I had talk to Ronald yesterday about the measurement from the mounting plate to the top of the unit. I have not rectangular answer yet can someone help me with this. Thanks
Hello Joe! Yes we can certainly assist you with this question. The measurement from the center mount plate to the top of the unit is 13 3/8".
