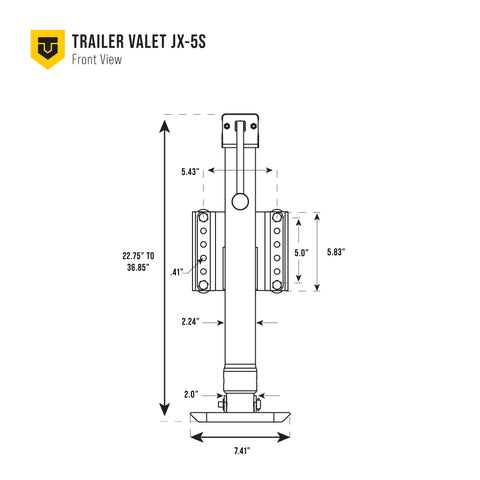

JX5-S-Dimensional-Drawings-Front_1000x1000

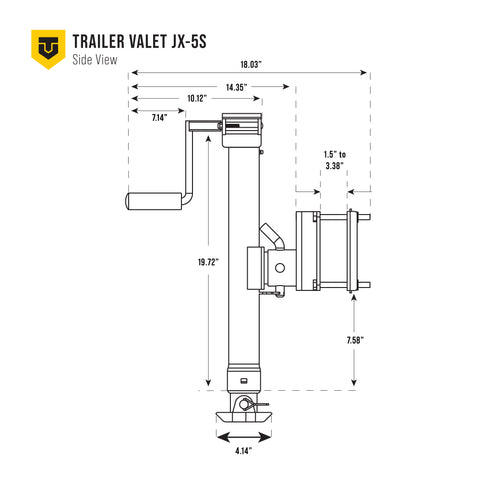

JX5-S-Dimensional-Drawings-Side_1000x1000

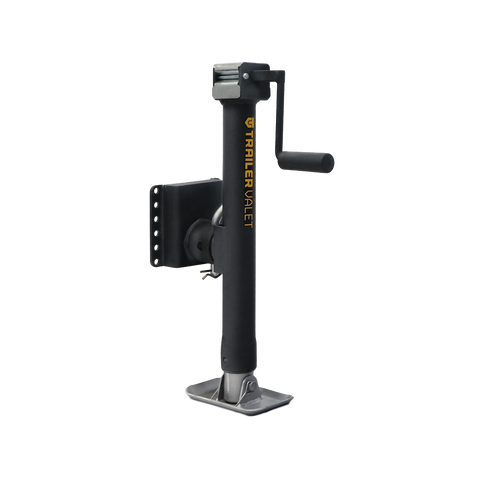

Refurbished Trailer Valet JX 5K Side-Mount Jack

$100.00; $100.00
Unit price: per

A Certified Refurbished Trailer Valet JX 5K Side-Mount Jack with a capacity of 5,000 lbs. For more information about this product, visit the main product page here. All units are refurbished personally by the Trailer Valet team to ensure optimal performance and are functionally identical to a brand new manufactured unit. FREE SHIPPING and a 1-year limited warranty are included with your purchase. All refurbished purchases are FINAL SALE. Buying used aids in our commitment to the environment by making the most of our materials – thank you for considering purchasing a refurbished unit! Feel free reach out to us at support@trailervalet.com or call us at 844-846-9344 with any questions.

Manual hand-crank jack, compatible with 18-24V drills

Lift Capacity

1,600 lbs (Manual), 800 lbs (with Drill)

Gear Material

Patented for efficiency and reduced heat retention

Protection

Sleeve fitting, weather-resistant shield, wrinkle black powder coating

Attachment

Pipe mount bracket

Additional Features

Standard footplate, optional wheel attachment

Static Capacity

5,000 lbs

Installation

Requires 8 inches of clearance

Retracted Height

23 inches

Extended Height

37 inches

Total Extension

14 inches

Trailer Lift

11.5 in to 25.5 in

Tube Dimensions

Outer Tube 57 mm, Inner Tube 51 mm

Clearance

Bottom of bracket to top 14 inches, mount point to top 11.5 inches

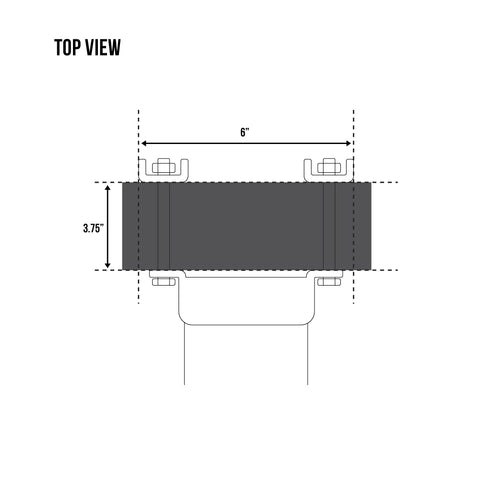

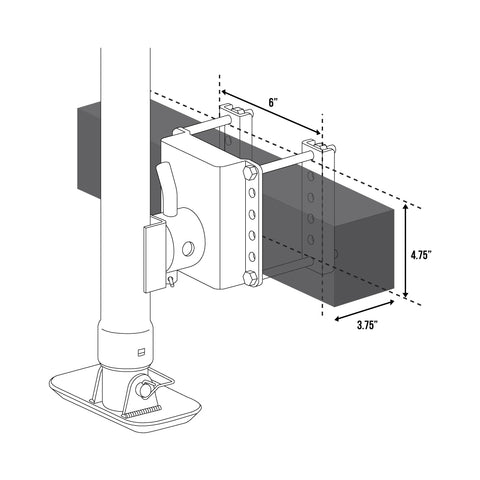

Max Frame Size Fit

4.75 in high, 3.75 in deep

How do you recommend propping up the trailer for installation?

A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16-18” of height to properly install the JX.

Can the center jack (JXC) be welded rather than bolted?

Yes, at your discretion.

Do I need to grease the gears before use?

No, the JX will come already lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual.

What is the load capacity of the JX?

JX2-C & JX2-S:
1.2K lb standard lift, 600 lb lift with power drill, and 2K lb static capacity.
JX5-C & JX5-S:
1.6K lb standard lift, 800 lb lift with power drill, and 5K lb static capacity.

What is the recommended drill torque setting?

We recommend keeping the torque setting as low as possible while still lifting the trailer. A heavier load will require a higher torque setting.

Does the JX come with a caster wheel?

Each JX comes standard with a foot plate. Caster wheels will be released mid-December and will be sold separately.

Does the JX Center Mount come with bolts for installation?

Yes. All JX Center jacks come with three bolts and lock washers for installation to your trailer frame.

What type of Mount Bracket comes with the JX2-S and JX5-S?

The JX2-S comes with a smaller bracket that can be mounted on a 4” frame and needs 6” of clearance to install. The JX5-S comes with a larger bracket that can be mounted on a 5” frame and needs at least 8” of clearance to install.

What is the best position for the JX5-S Mount Bracket to be installed?

The connection point should be in the low position (recommended). However, it can be flipped to the high position if needed.

How much does the JX weigh?

JX2-S: 23 lbs JX5-S: 25 lbs JX2-C: 14 lbs JX5-C: 14 lbs

Can the JX be submerged in water?

The JX can be submerged in water for brief periods. However, we highly recommend rinsing the JX with fresh water after heavy salt water exposure.

Can the JX be stored outdoors?

Yes, the JX has three layers of weather protection and can be stored outdoors with your trailer.

What kind of drill should I use with the JX?

Any 18-24V compact non-impact drill can be used with the Trailer Valet Drill Attachment. We recommend the DeWalt brand.
