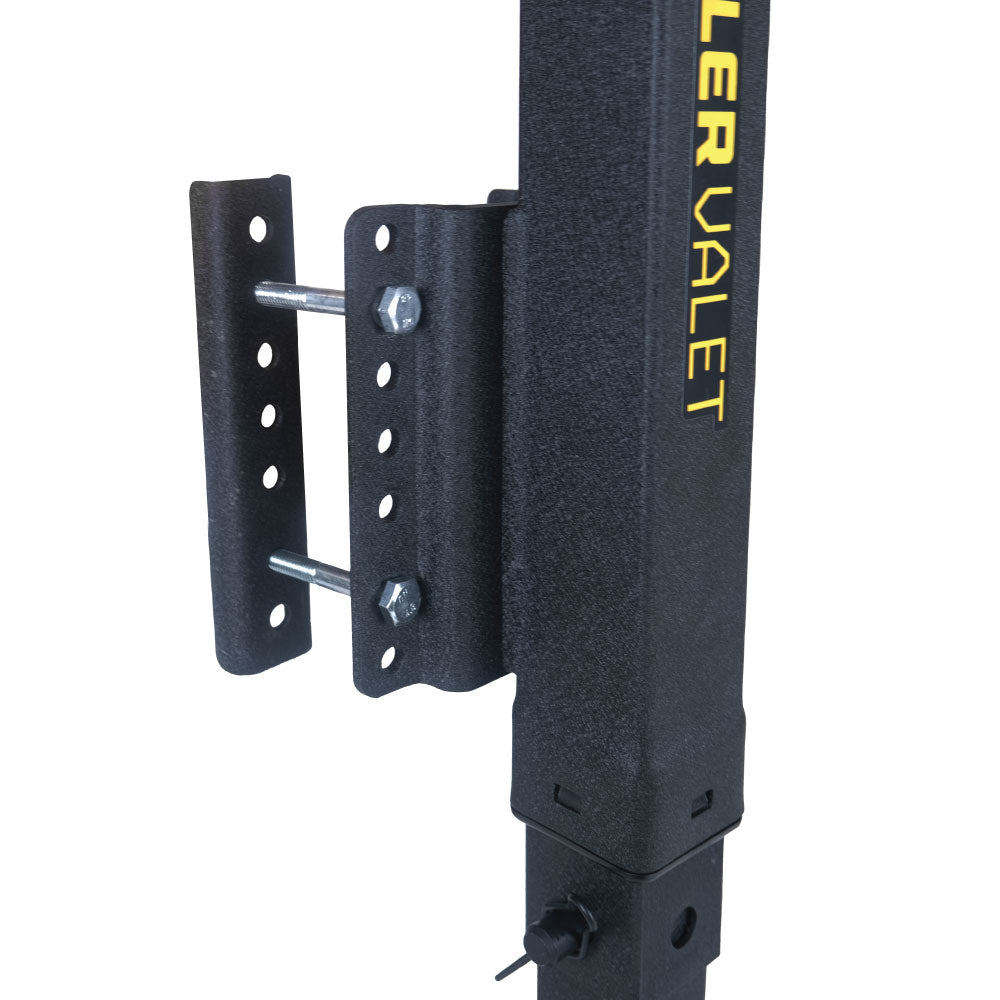

Close-Up of Mount Bracket – Reinforced Side-Mount for JX 7K Jack - TVJX7-S

Clevis Pin Highlight – Secure Mounting Component of JX 7K Trailer Jack - TVJX7-S

Lifestyle Image of Refurbished JX 7K Jack – Field Ready for Heavy Trailer Loads - REFTVJX7-S

Parts List for Trailer Valet Refurbished JX 7K Jack – Full Assembly Overview - REFTVJX7-S

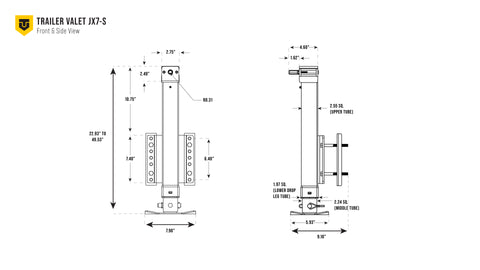

Dimensional Drawing of Refurbished JX 7K Side-Mount Jack – Full Technical Specs - REFTVJX7-S

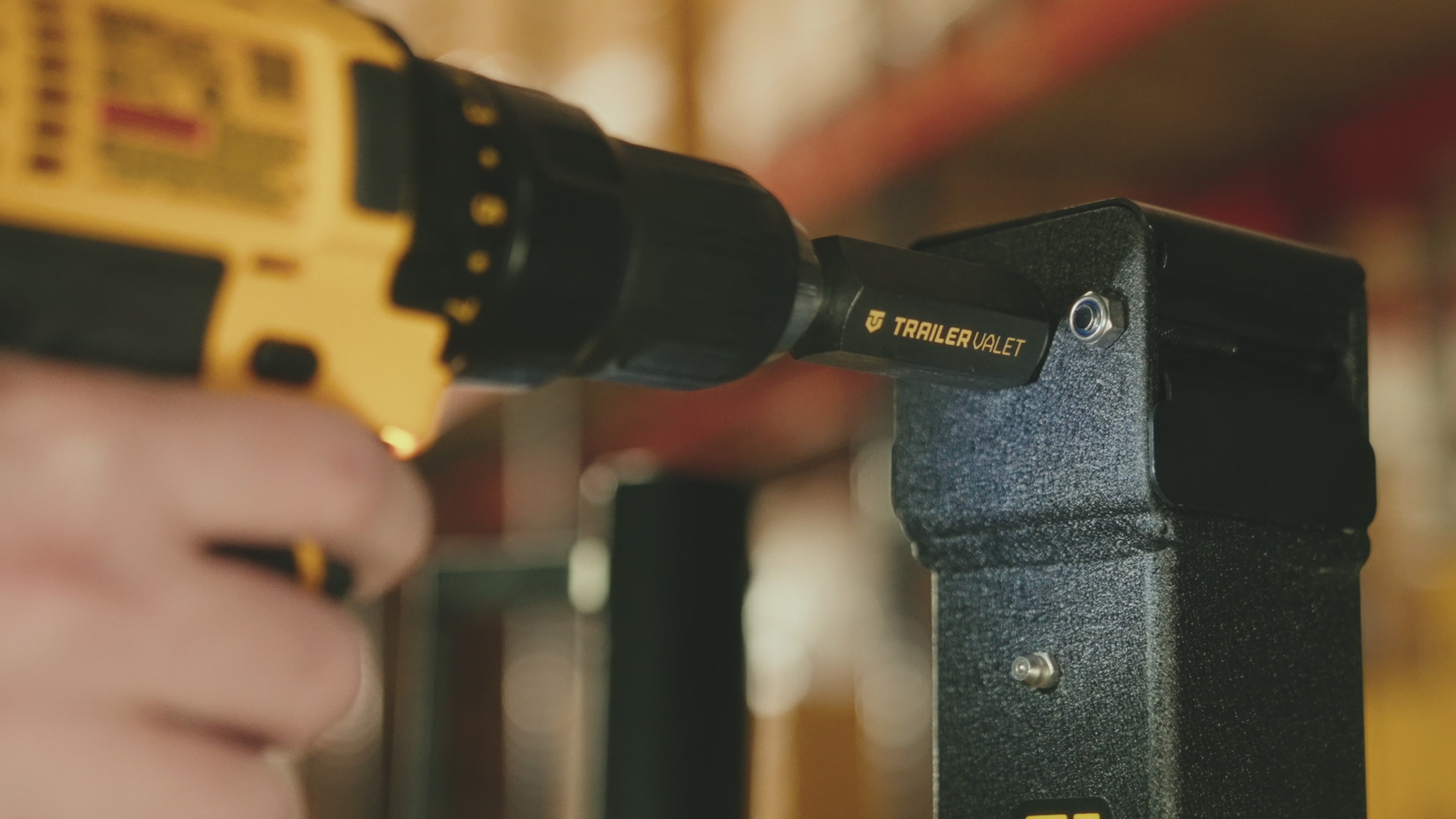

Slow Drill Compatibility – JX 7K Jack with Powered Crank Adapter Shown - TVJX7-S

Do Not Overextend Warning – Trailer Valet JX 7K Jack Usage Guide Image - TVJX7-S

Certified Refurbished Trailer Valet JX7K Side Mount Drill Jack

$150.00; $150.00
Unit price: per

The TVJX7-S is a heavy-duty side crank trailer jack built for speed, comfort, and durability. With a 7,000 lbs static capacity, it lifts up to 1,800 lbs manually or 900 lbs with any 20-24V cordless drill using the included drill attachment. It offers 27.3 inches of total height adjustment, a welded footplate for stability, and a weather sleeve for smooth operation and protection. Built tough with a welded square tube and corrosion-resistant black powder coating for long-lasting performance.

Please note that every certified refurbished unit is a final sale.

Description
Features & Specs
FAQ
Videos
Manuals

The TVJX7-S was designed to meet the needs of those who demand speed, comfort, and longevity when it comes to heavy trailers. Whether you need a strong dump trailer jack Monday through Friday or you're heading out with the boat on Saturdays, you can lift or lower your trailer in a matter of seconds with a 20-24V cordless drill. The TVJX7-S comes with a detachable hand crank, drill attachment, mount bracket hardware, and footplate.

The TVJX7-S is an elbow saver that was built for speed. Forget waiting on slow electric trailer jacks or wearing out your arm with only a hand crank. The TVJX7-S comes with both a manual crank and drill chuck for use with any standard 20-24V cordless drill, so raising or lowering your jack has never been easier. Bringing the jack up or down is as simple as connecting the drill attachment and squeezing the trigger on your cordless drill.

Static capacity of 7,000 lbs and a lift capacity of 1,800 lbs with the hand crank and 900 lbs lift capacity with the drill. No details were overlooked in designing the TVJX7-S to be the best heavy-duty, side crank trailer jack available. The TVJX7-S bolts onto your trailer frame with a fixed bracket for an easy mount. Each bracket has 6.4 inches of space between the top and bottom holes so you're able to get the perfect fit jack with no welding.

The TVJX7-S is perfect for trailer leveling - using either the drill attachment or the optional hand crank gives you nearly 13.6 inches of vertical travel. The adjustable drop leg provides another 13.7 inches, giving 27.3 inches of total adjustment. When you've got the jack adjusted to the height you need, the welded-on footplate ensures a solid foundation for safe loading and unloading.

Built tough with a one-piece welded square tube and fixed bracket, the TVJX7-S also features an innovative weather sleeve that not only reduces metal-to-metal friction for smooth operation, but it protects the components from the elements. Inside the jack, our patented gear system was designed to reduce heat retention for smooth, long-lasting operation. Fully clad in our signature wrinkle black powder coating, the TVJX7-S stays protected against rust and corrosion so it’ll keep working long after other jacks fail.

Built-In Safety Features: Our JX series includes clearly implemented Warning and Stop indicators located at both the top and bottom of the inner tube. These markers are designed to prevent jack over-extension and protect against reaching the end of the gear travel, keeping your equipment safer and extending product life.

If you have any inquiries about if this product will work for your specific trailer or environment, please reach out to our Support Team at support@trailervalet.com

All our units are certified refurbished by trained Trailer Valet technicians, ensuring each product meets high standards for performance and reliability. Each unit undergoes thorough testing and reconditioning to ensure it is functionally identical to a new model. Plus, you'll receive a 1-year limited warranty with your purchase.

Please note that every certified refurbished unit is a final sale. By choosing refurbished, you are supporting our environmental commitment to extend the life of quality components and minimize waste. Thank you for helping us maximize the use of our materials.

If you have any questions, please contact us at support@trailervalet.com or call 844-846-9344. We’re always happy to help!

Features & Specs

Features

Includes Trailer Valet Drill Attachment (TVDA), footplate, and hand crank

Zinc-rich coating, nickel plating, and finished with our signature wrinkle black powder coating

Weather sleeve protects components and reduces friction

Patented gear system with 3:4 gear ratio

Larger, bolt-on mounting bracket for easy installation

One-piece welded square tube for maximum strength

Manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment

Heavy duty drop leg with welded-on footplate

Static Capacity: 7,000 lbs Lift Capacity (Manual): 1,800 lbs Lift Capacity (w/ Drill): 900 lbs

Item Weight 27.5 lbs

Retracted Height: 23 in Extended Height: 49.5 in Total Extension (Lift + Drop Leg Extension): 26.5 in Lift: 13.6 in Drop Leg Extension: 13.7 in

Outer Tube Dimension: 65 mm Square Inner Tube Dimension: 57 mm Square Drop Leg Tube Dimension: 50 mm Square

Clearance (bottom of bracket to top): 18.5 in Clearance (mount point to top of jack): 14.4 in Max Frame Size Fit: 6.00 in high, 3.75 in deep

Specifications

Dynamic Lift Capacity Lbs: 1800

Static Tongue Weight lbs: 7000

Static Weight Capacity with Footplate Lbs: 7000

Mounting Type: Side

Item Height Inches: 23

Item Width Inches: 8

Item Depth Inches: 8

Item Net Weight lbs: 27.5

Warranty: 1 Year Manufacturers Limited Warranty

Includes: Includes Jack, Drill attachment, footplate, and hand crank

FAQ

What are the unit dimensions?

Width: 8 inches
Depth: 8 inches
Height: 23 inches retracted
13 inches lift extension and 13 inches drop leg extension for a total extension of 26 inches
49 inches final height with total extension

How do you recommend propping up the trailer for installation?

A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16–18 inches of height to properly install the JX.

Do I need to grease the gears before use?

No, the JX will come already lubricated. We recommend greasing the internal acme rod every 90 days via the grease zerk/fitting near the drive shaft. General purpose grease can also be applied periodically directly to the miter gears of the unit by removing the gearbox cap as needed.

What is the load capacity of the 7KJX?

Static Load: 7,000 lbs
Lift (manual crank): 1,800 lbs
Lift (using power drill with adapter): 900 lbs

What is the recommended drill torque setting?

We recommend keeping the torque setting as low as possible while still lifting the trailer. A heavier load will require a higher torque setting. Regardless of drill setting, the drill must be slowly engaged as opposed to suddenly pulling the drill trigger.

Does the JX come with a caster wheel?

We do not currently sell a caster wheel that is compatible with the JX 7K.

Does the JX come with bolts for installation?

Mounting bracket bolts are provided for installation on trailer tongues up to 3.75 inches thickness. The bolts can be replaced with longer versions if necessary.

How much does the JX weigh?

The unit weighs 27.5 lbs.

Can the JX be submerged in water?

It is recommended to avoid submerging the unit as this may erode lubricants on the internal mechanisms. If the unit is exposed to salt water, it is advised to rinse the unit in fresh water.

Can the JX be stored outdoors?

Yes, the JX has three layers of weather protection and can be stored outdoors with your trailer.

What kind of drill should I use with the JX?

Any 20–24V compact non-impact drill can be used with the Trailer Valet Drill Attachment. We recommend higher voltage drills as they can handle heavier loads with ease.

Is there a standard socket that can be used as an electric drill attachment?

We do not recommend using electric drill attachments other than the one designed specifically for the Trailer Valet; our attachment employs a unique design to ensure a snug fit onto the driveshaft. Use of a standard socket may cause it to shatter the socket and damage the driveshaft.

How do I know when the jack is at the end of the extension or retraction?

Our JX series includes clearly implemented Warning and Stop indicators located at both the top and bottom of the inner tube. These markers are designed to prevent jack over-extension and protect against reaching the end of the gear travel, keeping your equipment safer and extending product life.
