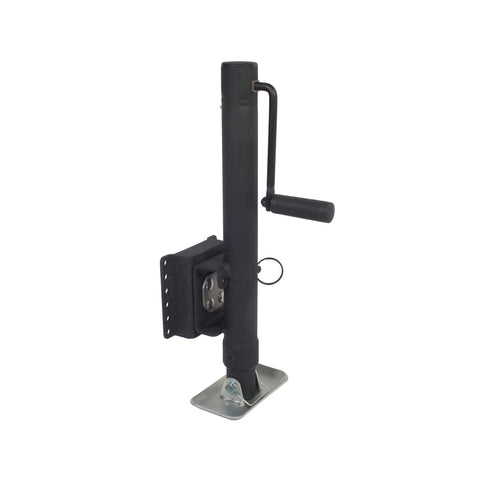

Angled product view of 2,000 lbs swivel mount trailer jack with crank handle and footplate - BSJSSW11

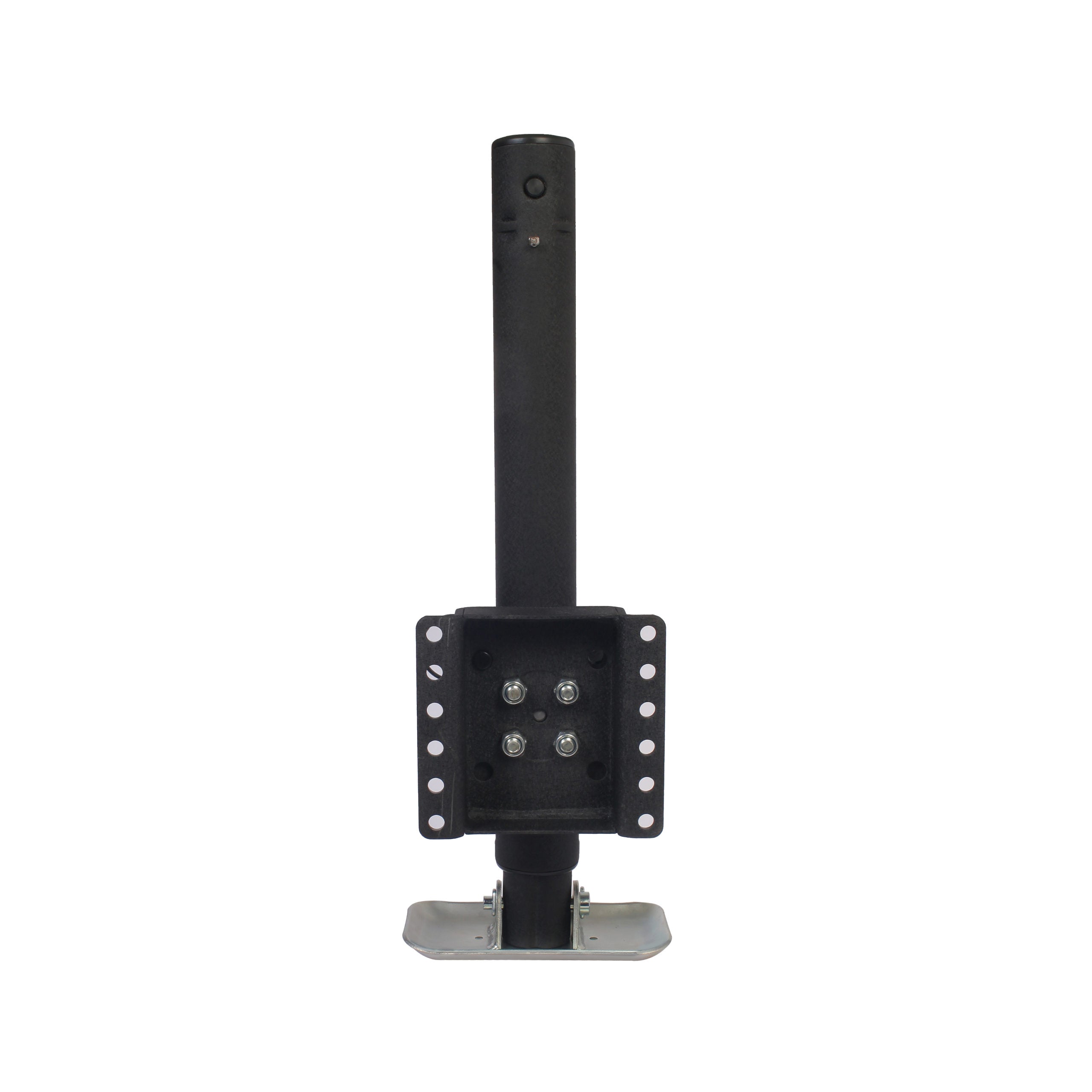

Backside image showing swivel mount bracket and adjustment mechanism - BSJSSW11

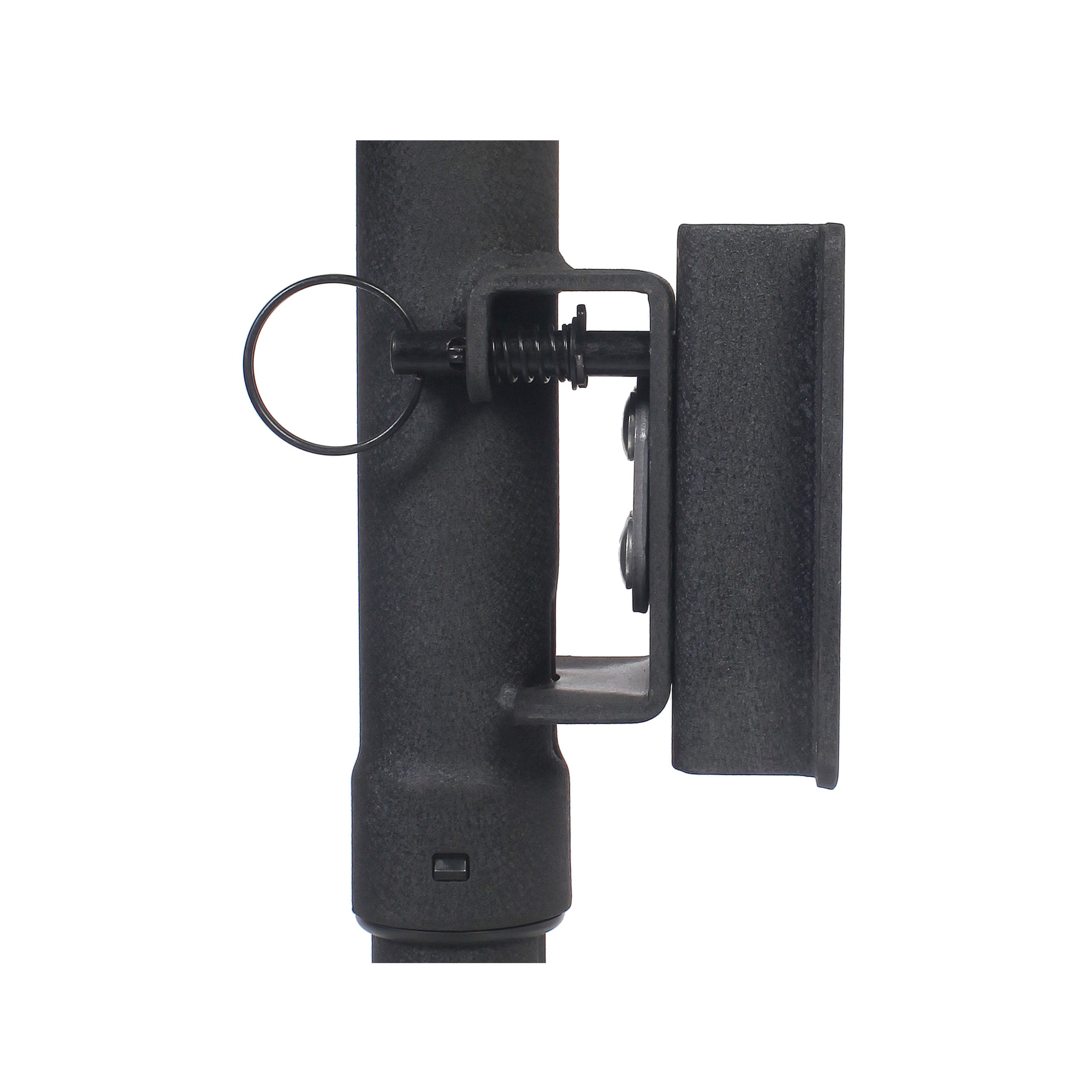

Close-up detail of side wind crank mechanism and swivel joint - BSJSSW11

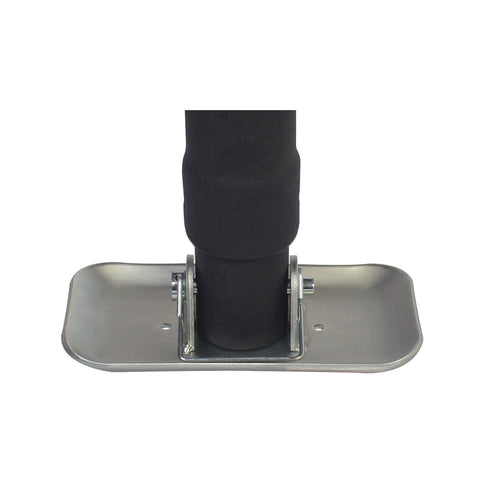

Footplate close-up with rugged tread for ground support - BSJSSW11

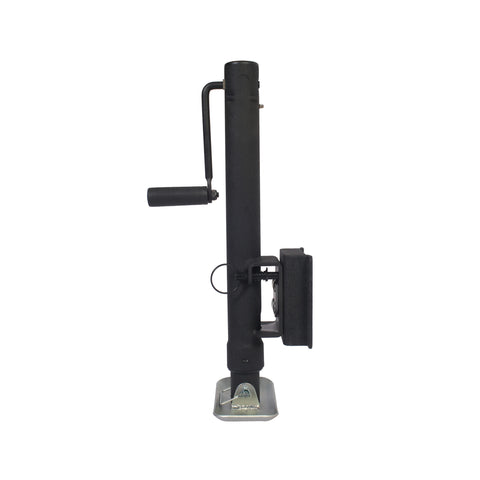

Left side view of jack with crank and swivel mounting plate - BSJSSW11

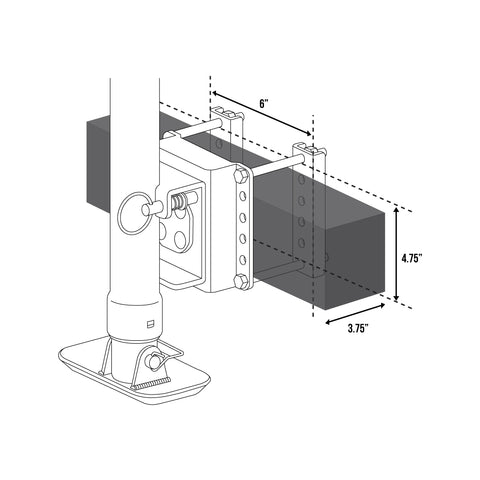

Dimension diagram showing swivel bracket measurements and mounting angles - BSJSSW11

2,000 lbs Side Wind Swivel Mount Jack - 15 inch Travel

$87.99; ~~$109.00~~; $87.99
Unit price: per

The Trailer Valet Blackout Side Wind Swivel Mount Jack offers a 2,000 lb static capacity a 1,200 lb lift capacity, making it ideal for utility and boat trailers. Its 15-inch travel range provides ample clearance for hitching and leveling, while the internal sleeve reduces wear and stabilizes the jack during use. Designed to fit frames up to 4.75 inches high and 3.75 inches deep, it requires 6 inches of clearance for installation. Coated with Trailer Valet’s Signature Wrinkle Black Powder Coating, it delivers 700-hour corrosion resistance. A rubber handle and included foot plate ensure comfort and stability.

NOTE: The Blackout line of jacks are manual and not compatible with the Trailer Valet Drill Attachment.

Description
Features & Specs
FAQ
Videos
Manuals

The Trailer Valet Blackout Side Wind Swivel Mount Jack is a durable and versatile solution designed to provide smooth lifting and reliable support for your trailer. With a 1,200 lb dynamic lift capacity and a 2,000 lb static tongue weight, this jack is ideal for utility trailers, boat trailers, and heavy-duty towing needs. Its swivel mount design allows for easy positioning and quick retraction, making it convenient to use in various towing situations.

This jack features a 15-inch travel range, giving you ample clearance for hitching and leveling your trailer. An internal sleeve reduces wear and tear on the inner tube walls and helps stabilize the jack during raising and lowering, enhancing its durability and extending its lifespan. Designed to fit frame sizes up to 4.75 inches high and 3.75 inches deep, it requires 6 inches of clearance for installation. For deeper frames, you can use your own M10 1.5 bolt to customize the fit, ensuring a secure and stable connection.

Built to withstand harsh environments, the jack is topped with Trailer Valet’s Signature Wrinkle Black Powder Coating, which delivers an impressive 700-hour corrosion resistance rating. The inner tube is also powder-coated for added protection against rust and wear, ensuring long-lasting performance even under tough conditions. A rubber handle provides a soft, comfortable grip, making operation smoother and easier, even in wet or cold weather.

Weighing 19 lbs and measuring 23 inches in height, this jack is compact yet strong enough for heavy-duty use. It includes a foot plate for added stability on uneven surfaces, improving overall weight distribution and support. Backed by a one-year manufacturer’s limited warranty, the Trailer Valet Blackout Side Wind Swivel Mount Jack offers strength, reliability, and ease of use, making it an essential tool for secure and efficient trailer management.

If you have any inquiries about if this product will work for your specific trailer or environment, please reach out to our Support Team at support@trailervalet.com

NOTE: The Blackout line of jacks are manual and not compatible with the Trailer Valet Drill Attachment.

Features & Specs

Features

Weight Capacity: 2,000 lbs

Side Wind

Swivel Mount

15 inch Travel

Internal Sleeve alleviates wear and tear

Signature Wrinkle Black Powder Coating with a corrosion resistance rating of 700 hours

Inner Tube Powder Coating Rated at 700 hours of corrosion resistance

Rubber handle for a soft, comfortable grip

Max Frame Size Fit: 4.75 in high, 3.75 in deep

Installation: Requires 6 in of clearance

Use your own bolt for deeper frames - Uses M10 1.5

Specifications

Dynamic Lift Capacity Lbs: 1200

Static Tongue Weight lbs: 2000

Static Weight Capacity with Footplate Lbs: 2000

Mounting Type: Bracket

Item Height Inches: 23

Item Width Inches: 8

Item Depth Inches: 11

Item Net Weight lbs: 19

Warranty: 1 Year Manufacturers Limited Warranty

Includes: Blackout 2K Side Wind, Swivel Mount Jack, 15 inch

FAQ

What is the weight capacity of the Blackout Side Wind Swivel Mount Jack?

This jack supports up to 2,000 lbs of static tongue weight, providing reliable lifting and stabilization for smaller trailers like utility haulers, boat trailers, and RVs.

What is the travel distance for lifting and lowering?

The jack offers 15 inches of vertical travel, giving you ample adjustment for leveling or hitch alignment in a variety of trailer setups.

What is the mounting type for this jack?

This jack uses a swivel mount bracket, allowing you to pivot the jack out of the way when towing, and swivel it back down when in use. It improves clearance and convenience during transport.

What trailer frame sizes does the bracket fit?

The included mounting bracket fits frames up to 4.75 inches high and 3.75 inches deep. For deeper frames, you can use M10 1.5 bolts for secure installation.

Does the jack resist corrosion for long-term use?

Yes, it features Trailer Valet’s signature wrinkle black powder coating with a 700-hour corrosion resistance rating. The internal sleeve fitting also minimizes metal-to-metal contact to reduce wear over time.

Does the Blackout jack come with a footplate?

Yes, the jack comes with a standard footplate included, providing a stable base when deployed for lifting or stabilizing.

What type of handle does the jack use?

It features a side wind handle with a soft rubber grip for comfortable cranking. The handle length is 7.25 inches with a 7-inch crank radius.

How much clearance is required for installation?

You will need at least 6 inches of clearance to properly install this jack on your trailer frame.

Can I use this jack in marine environments?

Yes, but for best results after exposure to saltwater, rinse the jack with fresh water to maintain its finish and internal components.

Can the jack be welded instead of bolted?

While welding is possible at your discretion, welding the jack will void the manufacturer's warranty.

Videos

No instructional videos available. Please see the Product manual

Manuals

Blackout Jacks BSJ Operating Manual

Download

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Good quality and easy to

"Good quality and easy to install."

— Phillip G. (4/5)

Thumbs up

"Thumbs up"

— Cheever F. (5/5)

Q&A

Why isn't the Blackout available with a wheel? Your website shows it only fits the JX. Does the Blackout 2,000 fit a 5" tongue or a 4.75" tongue? Is this jack suitable for use on a boat trailer used in saltwater and sitting outside in Florida heat and humidity?: Hello! We would like to apologize about that and thank you for bringing this to our attention. The Blackout Jacks are in fact compatible with our JX wheel, it will fit just fine. Our team has fixed this language on the website so now customers will see the change moving forward. Thank you again for letting us know and please let us know if you have any questions.
Is there a wheel available to replace the sand foot?: Hello! Thank you for reaching out to Trailer Valet! Unfortunately the wheel is only compatible with our JX drill powered jacks. Please feel free to reach out to support@trailervalet.com if you have any further questions, thank you!
Hard to tell from the pictures, does this come with a second plate to bolt on to the trailer frame?: Hello! The jack comes with the bracket, clamps, and bolts to bolt on to your trailer frame. Please feel free to reach out to support@trailervalet.com if you have any questions, thank you!
Will this fit a 4" x 4" tongue?: Hello! Thank you for reaching out to Trailer Valet. Our Blackout jack should fit on your trailer just fine, you may need to get longer bolts for your frame. These bolts are standard and can be found at a local hardware store. Please feel free to reach out to support@trailervalet.com if you have any questions. Thank you!
Will this jack fit a trailer frame of 3" x 5" tall?: Hello Rick! Thank you for reaching out today. In regards to your question, yes our Blackout 2K swivel jack should have no issues fitting onto your trailer.
