$399.00
$399.00

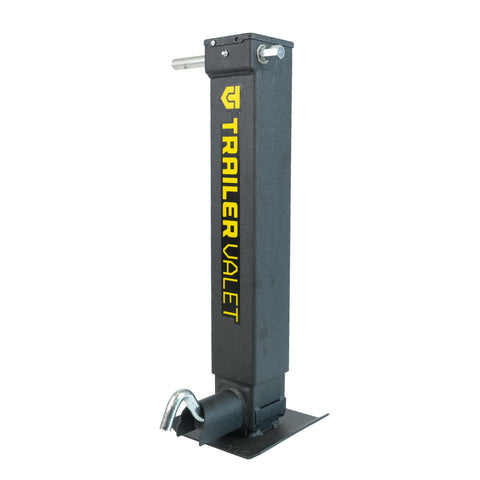

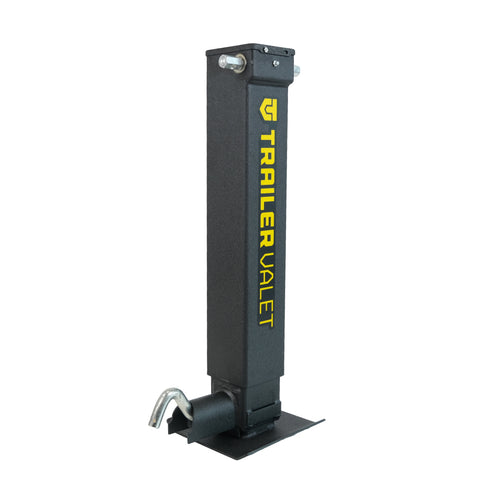

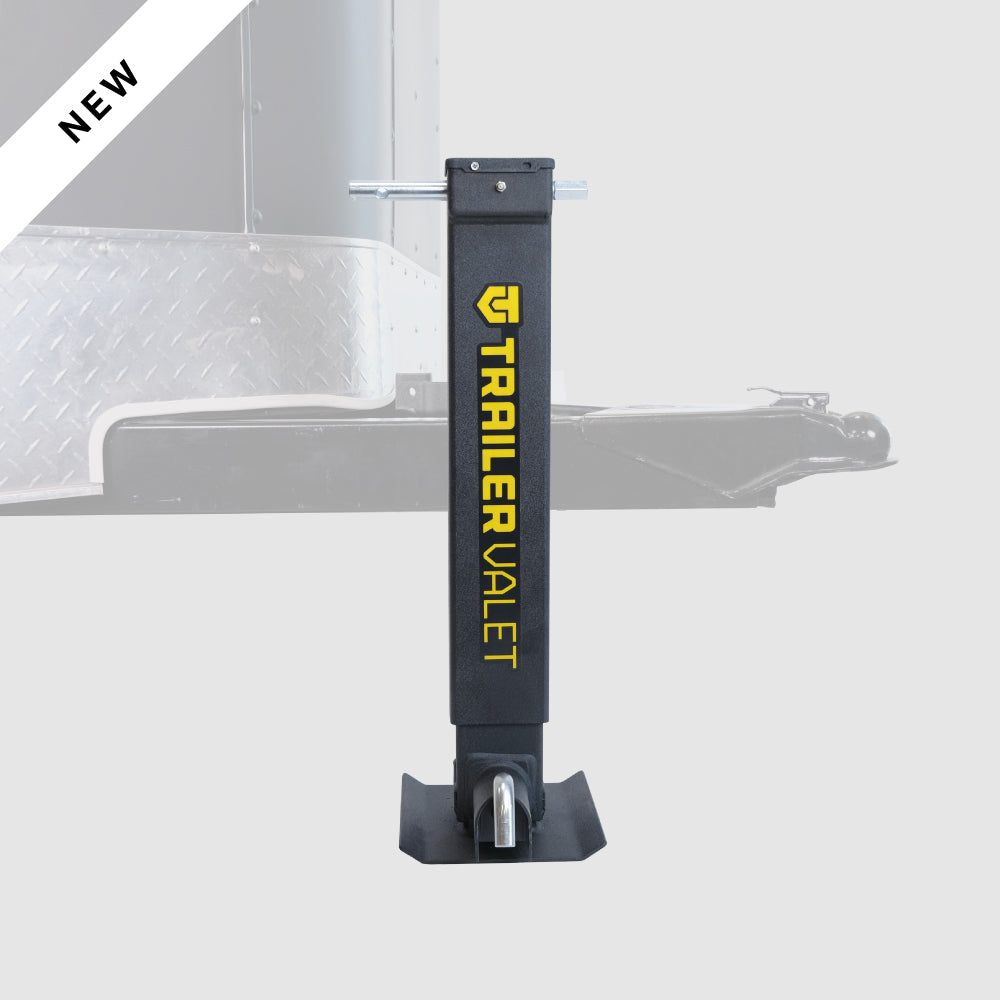

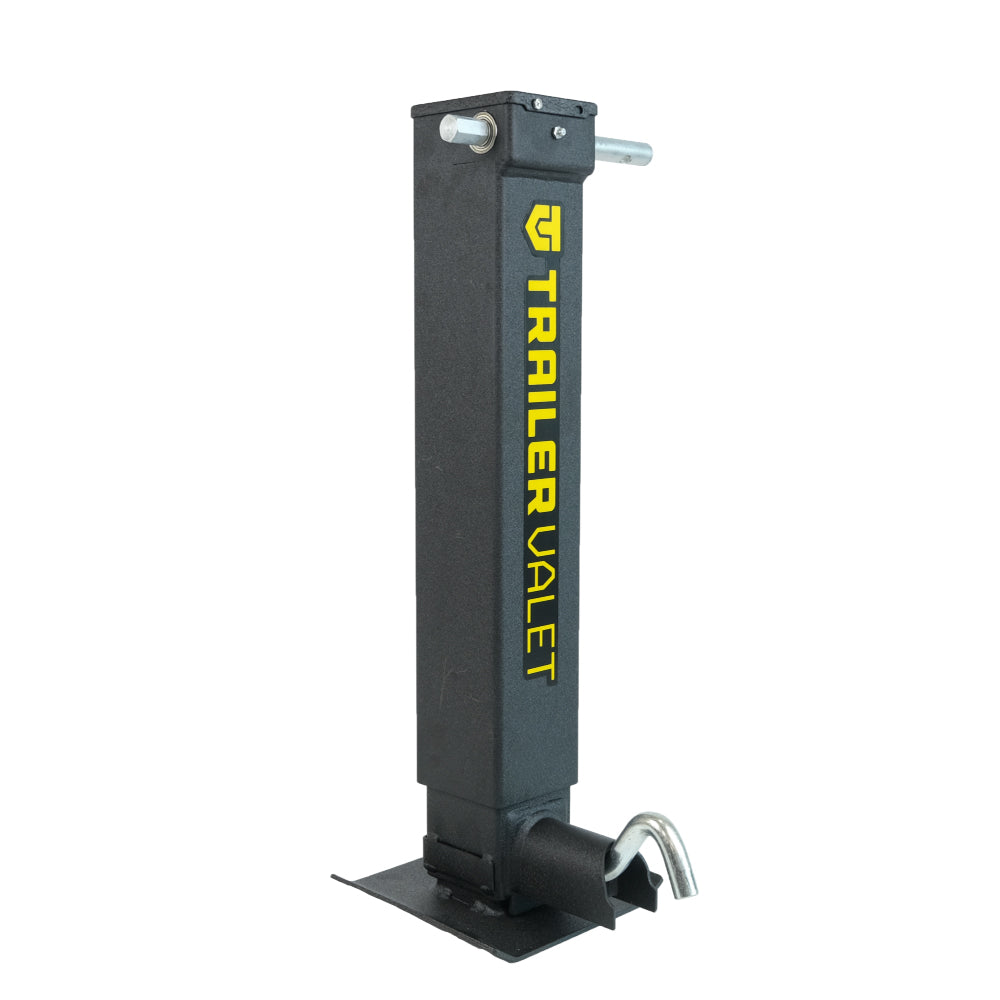

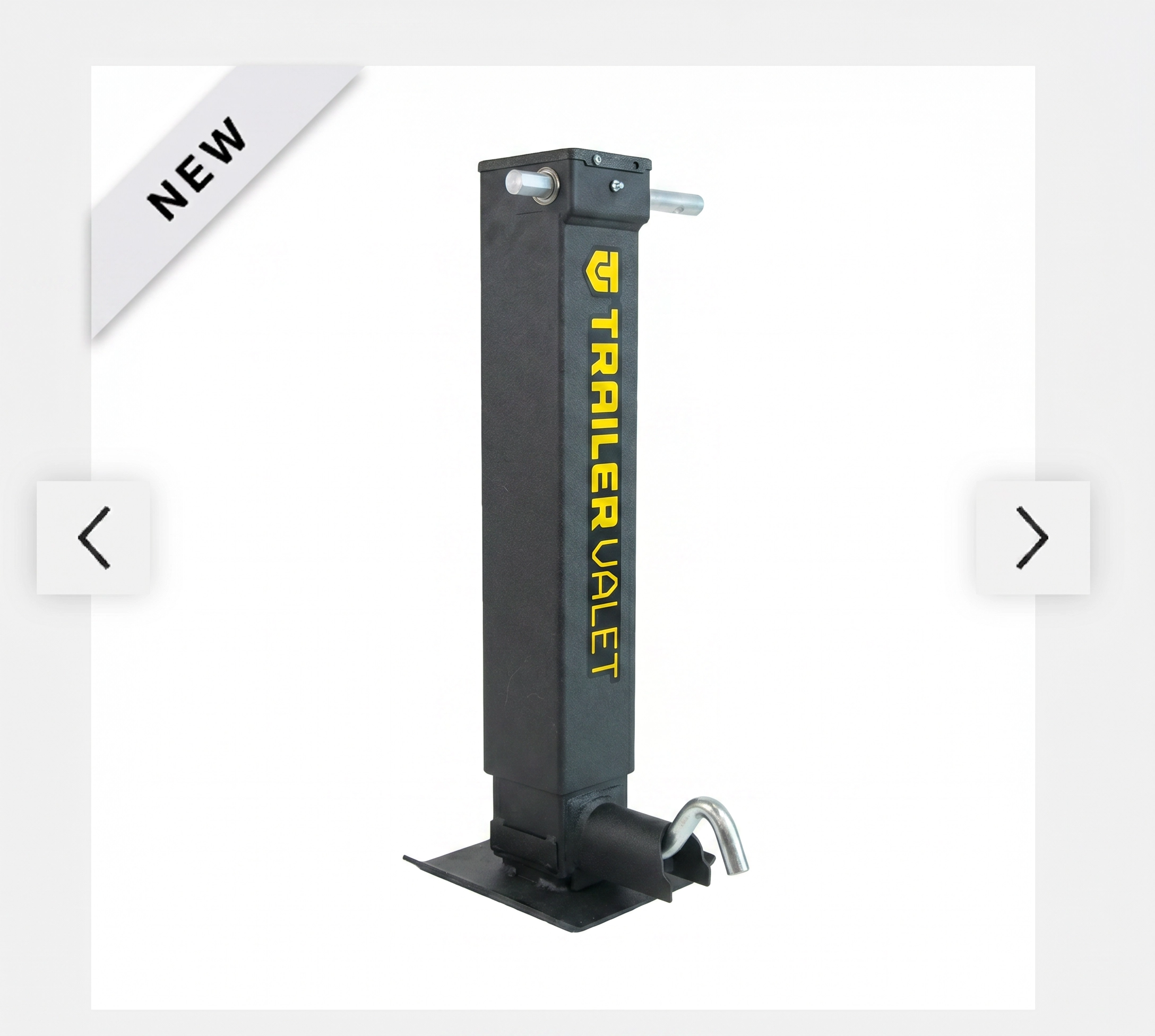

The Trailer Valet JX 14K Drill-Powered Weld-On Jack combines heavy-duty strength with drill-powered convenience. Lift up to 5,000 lbs with a drill or 14,000 lbs by hand crank, featuring a standard 3/4" hex drive, worm gear system, and spring-loaded drop leg.

BUY AT etrailer
Description

Heavy-duty trailers demand serious lifting power, but traditional hand-crank jacks weren’t designed for the way professionals work today.

The Trailer Valet JX 14K Drill-Powered Weld-On Jack is part of Trailer Valet’s JX line of drill-powered jacks, engineered for industrial and commercial trailer applications where durability, efficiency, and lifting strength are critical.

Unlike conventional jacks that rely on bevel gears optimized for manual cranking, the JX jack utilizes a worm gear drive system specifically designed for controlled drill-powered operation. This gear configuration delivers the gear reduction necessary to safely operate the jack with a cordless drill, allowing operators to raise or lower trailers significantly faster than manual cranking.

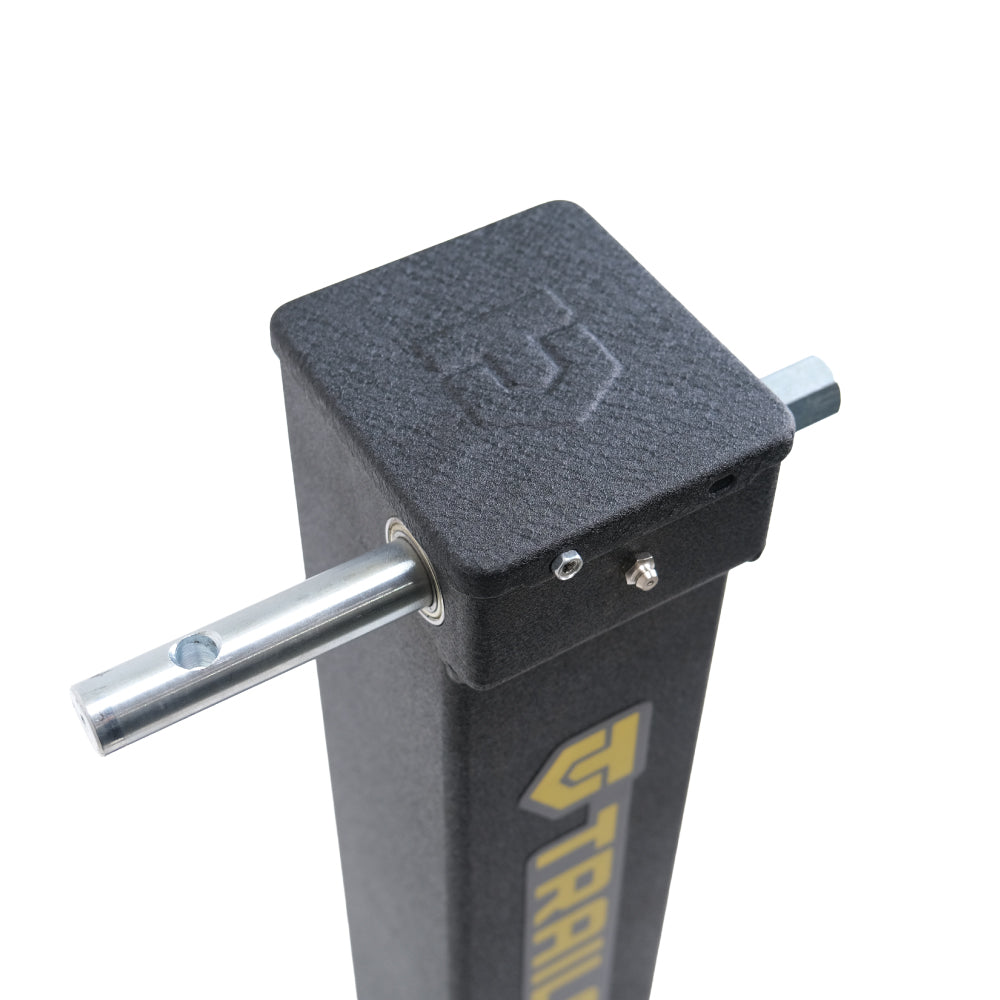

For maximum compatibility, the jack features a standard 3/4" hex drill drive shaft, allowing it to be operated directly with common drill sockets and tools—no proprietary drill attachment required.

The jack supports up to 5,000 lbs lift capacity when operated with a drill, providing fast and efficient lifting for most daily operations. For maximum lifting capability, the manual crank handle supports up to 14,000 lbs, matching the jack’s 14,000 lb static capacity for heavy-duty applications.

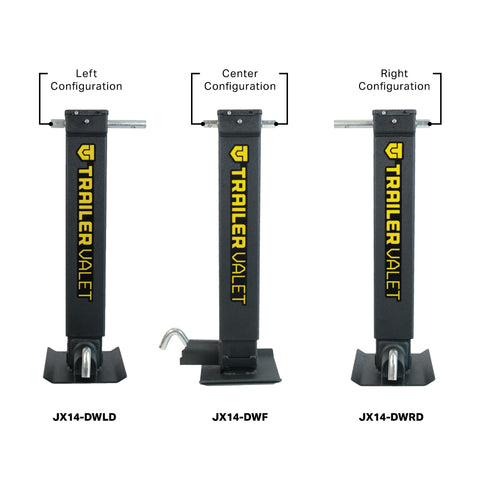

Designed as a direct-weld jack, the JX 14K is intended to be welded directly onto trailers for a secure, permanent installation. To accommodate different trailer frame layouts, the jack is available in three positioning options: Left, Center, and Right.

The jack also features a spring-loaded return system with automatic drop leg, allowing for quick leg deployment and retraction. Because the drop leg retracts rapidly when released, operators should keep hands and feet clear during operation to avoid injury.

Finished with Trailer Valet’s signature wrinkle black powder coating, the JX 14K is built to withstand demanding worksites, harsh weather, and heavy commercial use.

For trailer manufacturers, fleet operators, and heavy-duty users seeking modern lifting efficiency without the cost of hydraulic systems, the Trailer Valet JX 14K Drill-Powered Jack delivers powerful performance and practical convenience.

For large orders, OEM inquiries, or customization needs, please contact our team at sales@trailervalet.com.

Caractéristiques et spécifications

Features

  • Part of the JX Drill-Powered Jack Line: Engineered as part of Trailer Valet’s JX family of drill-powered jacks built for modern trailer operation.
  • Drill-Powered Operation: Use a standard cordless drill to quickly raise or lower heavy trailers, reducing time and physical effort compared to manual cranking.
  • Heavy-Duty 14,000 lb Capacity: Exceeds the capacity of many conventional jacks, built to support demanding industrial and commercial trailers.
  • Purpose-Built Worm Gear Drive: Provides the gear reduction required for controlled drill-powered lifting while maintaining reliable torque and durability.
  • Direct-Weld Installation: Designed to be welded directly onto trailers for a secure, permanent mounting solution.
  • Multiple Positioning Options: Available in Left, Center, and Right configurations to accommodate various trailer frame designs and mounting requirements.
  • Commercial-Grade Construction: Ideal for dump trailers, equipment trailers, construction trailers, and other heavy-duty applications.
  • Signature Trailer Valet Finish: Durable wrinkle black powder coating protects against corrosion and wear.
  • OEM & Custom Solutions Available: For large orders or customized configurations, contact sales@trailervalet.com.

Specifications

  • Lift Capacity: 14,000 lbs
  • Lift Capacity w/ Drill: 5,000 lbs
  • Static Load Capacity: 14,000 lbs
  • Power Source: 20-24V Drill (not included)
  • Mount Type: Weld-on
  • Drive System: Worm Gear
  • Operation: Drill-Powered or Manual Crank
  • Drill Drive Shaft: 3/4" Hex
  • Installation: Direct-Weld
  • Position Options: Left / Center / Right
  • Drop Leg: Spring-Loaded Automatic Return
  • Finish: Wrinkle Black Powder Coat
  • Material: Heavy-Duty Steel Construction
  • Application: Industrial / Commercial Trailers
  • Corrosion Protection: Powder-Coated Finish
  • Lift Travel: 15in +9in drop leg, total 24in
  • Total Height Adjustment: 24 inches
  • Total Retracted Height: 28 inches
  • Total Extended Height: 52 inches
  • Outer Tube Dimensions: 3.9 inches
  • Inner Tube Dimensions: 3.5 inches
  • Item Dimensions: 12.8 inches wide, 8.3 inches deep, 28.0 inches tall
  • Item Weight: 59 lbs
  • Shipping Weight: 61
  • Backup Operation: Manual hand crank
  • Included Components: Jack, Hand Crank Handle
  • Warranty: 1-Year Manufacturer’s Limited Warranty
FAQ

What is the weight capacity of the JX 14K jack?

The JX 14K Drill-Powered Weld-On Jack supports up to 5,000 lbs when operated with a cordless drill and up to 14,000 lbs when using the manual crank handle, matching its full static load capacity.

Can I use a cordless drill to operate this jack?

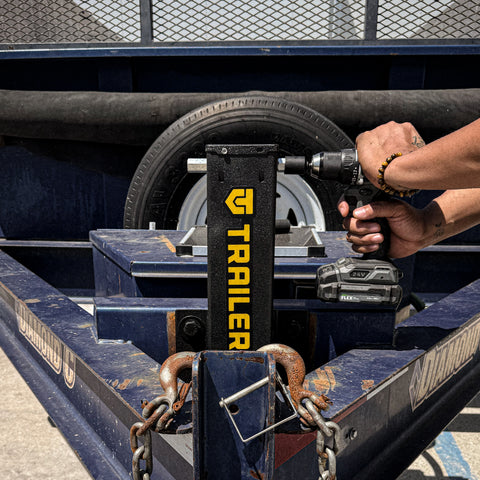

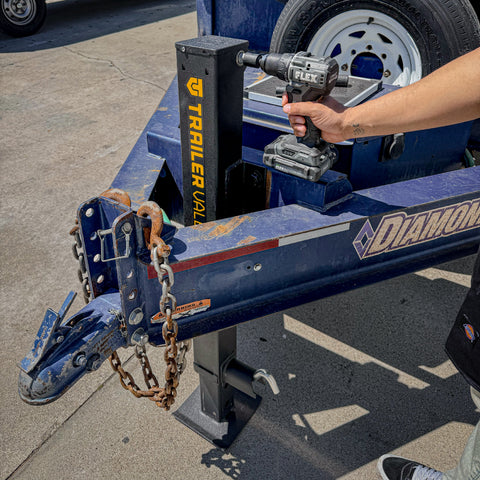

Yes. The jack is designed for drill-powered operation using a standard 3/4 inch hex drive, allowing you to raise and lower your trailer quickly with most common cordless drills.

Does this jack require a special drill attachment?

No. The JX 14K uses a standard 3/4 inch hex drive, so it works with common drill sockets and tools. No proprietary adapter is required.

Is a drill included with the jack?

No. A drill is not included. The jack is designed to be used with a drill you already own.

What type of installation does this jack require?

This is a weld-on trailer jack, meaning it is designed to be permanently welded directly onto your trailer frame for a secure and durable installation.

What types of trailers is this jack best for?

The JX 14K is ideal for heavy-duty and commercial applications, including dump trailers, equipment trailers, construction trailers, and other industrial-use trailers.

What is the benefit of the worm gear system?

The worm gear drive provides controlled lifting and proper gear reduction for safe drill-powered operation, while also delivering strong holding power and durability under heavy loads.

Can I still use the jack manually?

Yes. The jack includes a manual crank handle that allows operation without a drill and provides full lifting capability up to 14,000 lbs.

Does the jack have a drop leg feature?

Yes. The jack includes a spring-loaded drop leg that allows for faster positioning and adjustment when setting trailer height.

Is the drop leg safe to use?

Yes, but it retracts quickly when released. Always keep hands and feet clear during operation to avoid injury.

What positioning options are available?

The JX 14K is available in Left, Center, and Right configurations to accommodate different trailer frame layouts and mounting needs.

Is this jack suitable for commercial or fleet use?

Yes. The JX 14K is built for industrial and commercial applications, making it a great solution for contractors, trailer manufacturers, and fleet operators.

Is the jack weather resistant?

Yes. It features a durable wrinkle black powder coating that helps protect against corrosion, wear, and harsh outdoor conditions.

How do I maintain the jack?

For best performance, keep the unit clean and dry. If exposed to saltwater, rinse with fresh water and dry thoroughly. Apply grease periodically to the gears and moving parts to maintain smooth operation.

What warranty does this product include?

The JX 14K Drill-Powered Weld-On Jack includes a 1-year manufacturer’s limited warranty covering defects in materials and workmanship.

Can this jack replace a hydraulic trailer jack?

Yes. The JX 14K provides a cost-effective alternative to hydraulic jacks for many applications, offering strong lifting power and faster operation without the complexity or maintenance of hydraulic systems.
