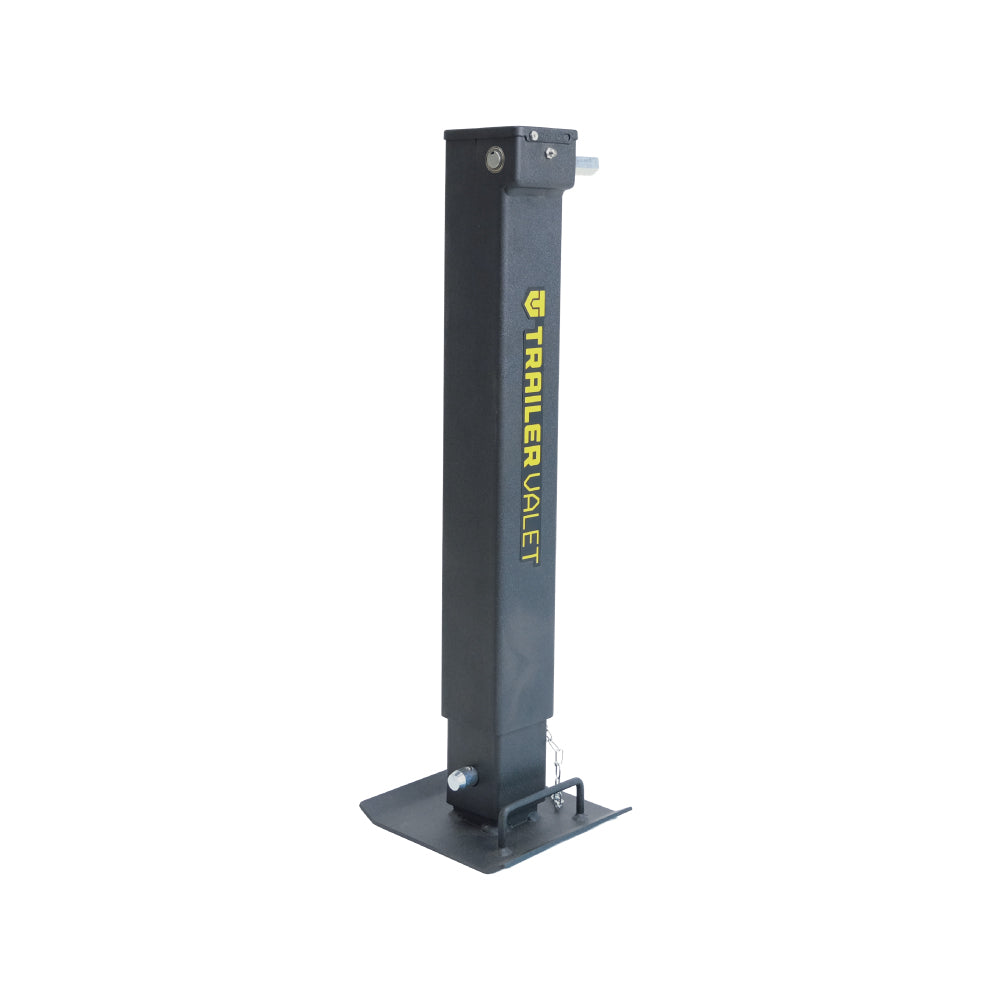

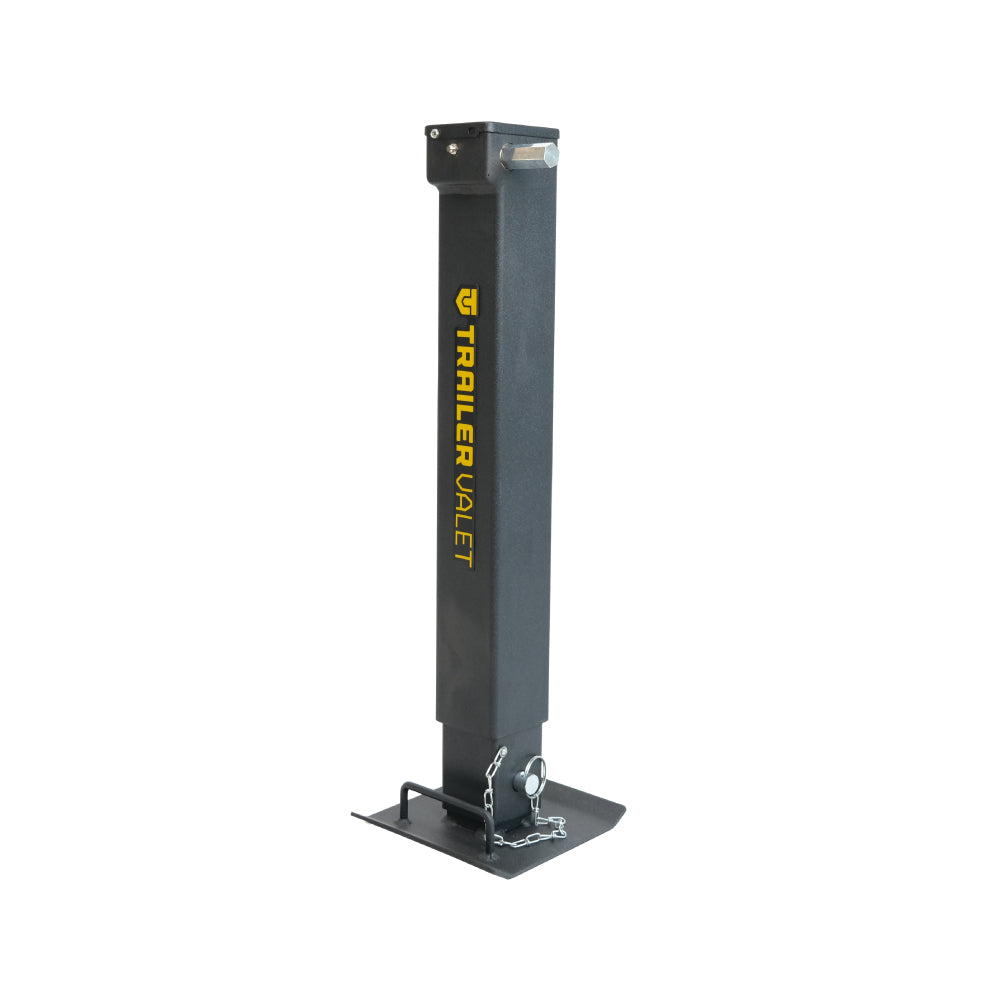

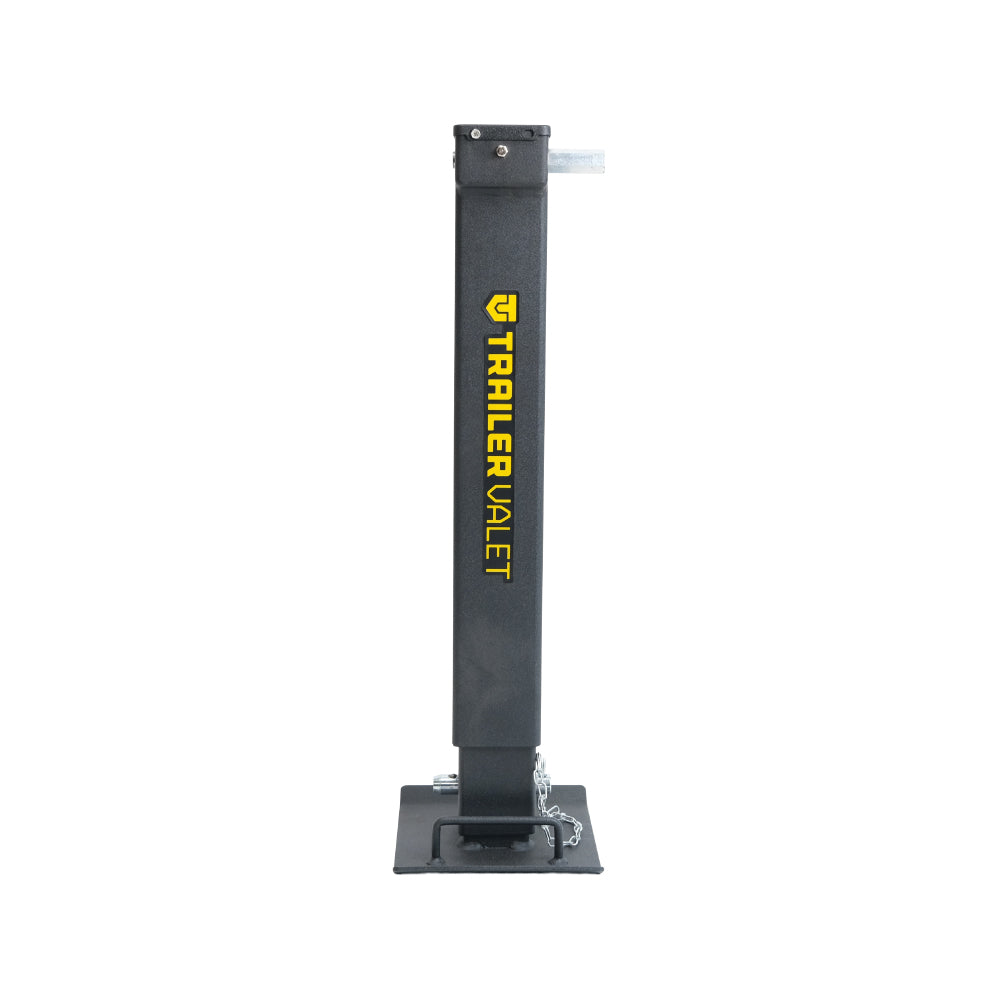

Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack
Trailer Valet JX 10K Direct Weld Jack

Trailer Valet JX 10K Direct Weld Jack

$328.90
$328.90

The Trailer Valet JX 10K Drill-Powered Weld-On Jack delivers efficient lifting with drill compatibility. Lift up to 10,000 lbs, featuring a 3/4 inch hex drive, worm gear system, and pull-pin drop leg
Description

Heavy-duty trailers require reliable lifting power, but traditional hand-crank jacks haven’t kept up with the tools professionals use today.

The Trailer Valet JX 10K Drill-Powered Weld-On Jack is part of Trailer Valet’s JX line of drill-powered jacks, engineered for commercial and industrial trailer applications where efficiency, durability, and ease of use matter.

Unlike conventional jacks that rely on bevel gears optimized for manual cranking, the JX 10K utilizes a worm gear drive system designed specifically for controlled drill-powered operation. This design provides the gear reduction necessary to safely operate the jack with a cordless drill, allowing users to lift and lower trailers faster than traditional hand cranking.

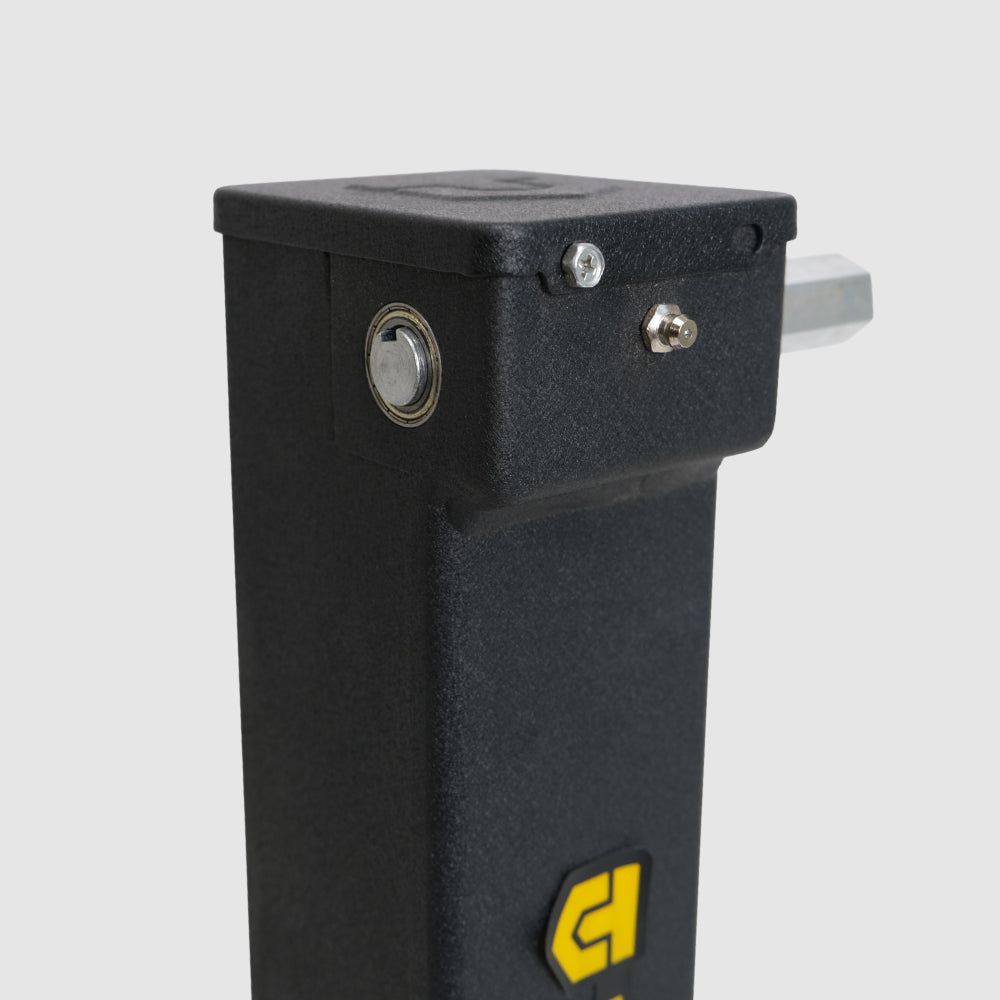

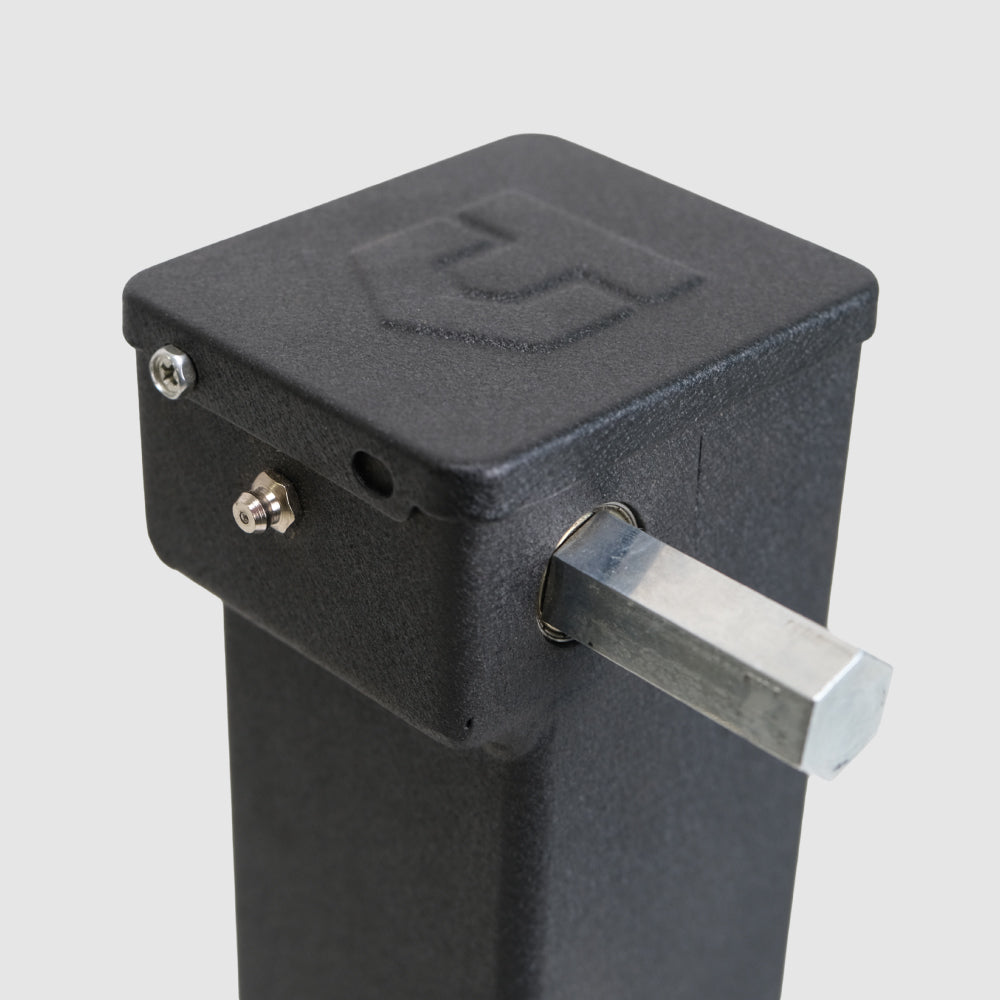

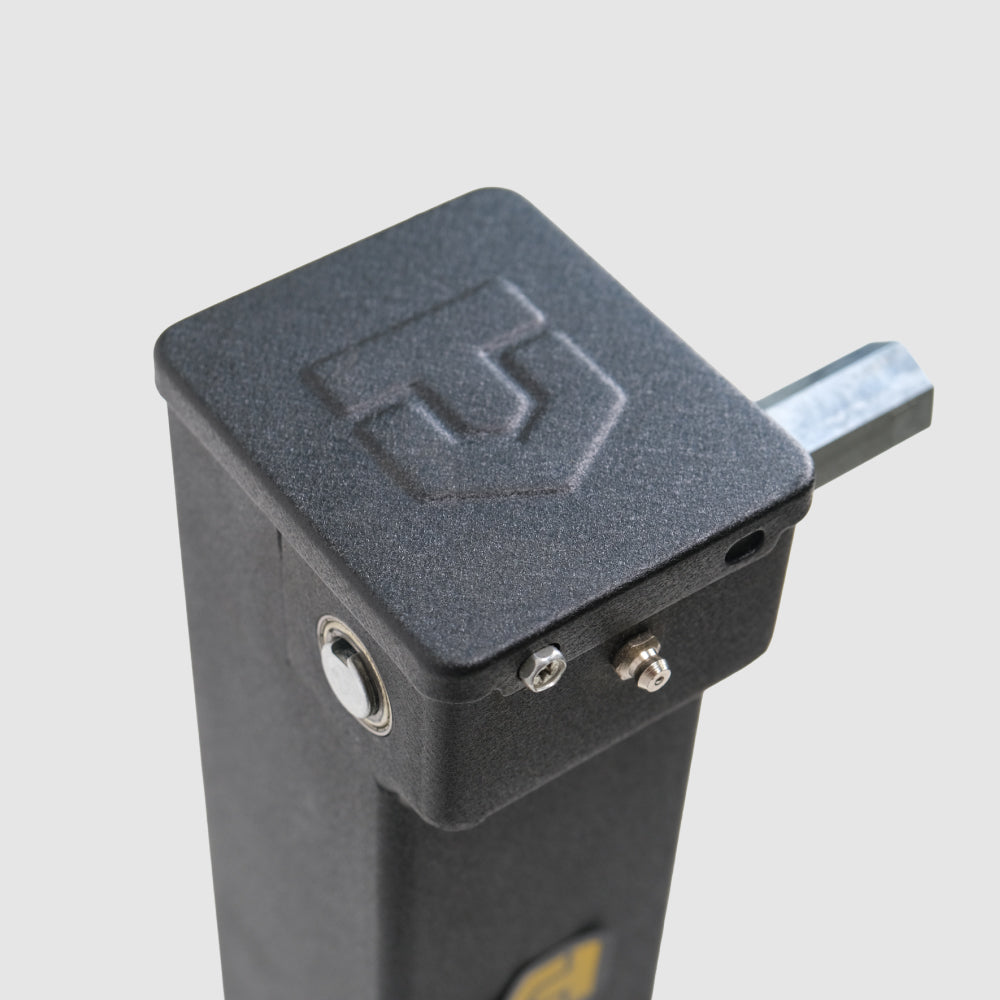

For added convenience, the jack features a standard 3/4"" hex drill drive shaft, making it compatible with common drill sockets—no proprietary attachment required. Simply use the tools you already have.

The jack supports up to 5,000 lbs lift capacity when operated with a drill, delivering fast, efficient lifting for everyday use. For heavier lifting needs, the manual crank handle supports up to 10,000 lbs, matching the jack’s 10,000 lb static capacity.

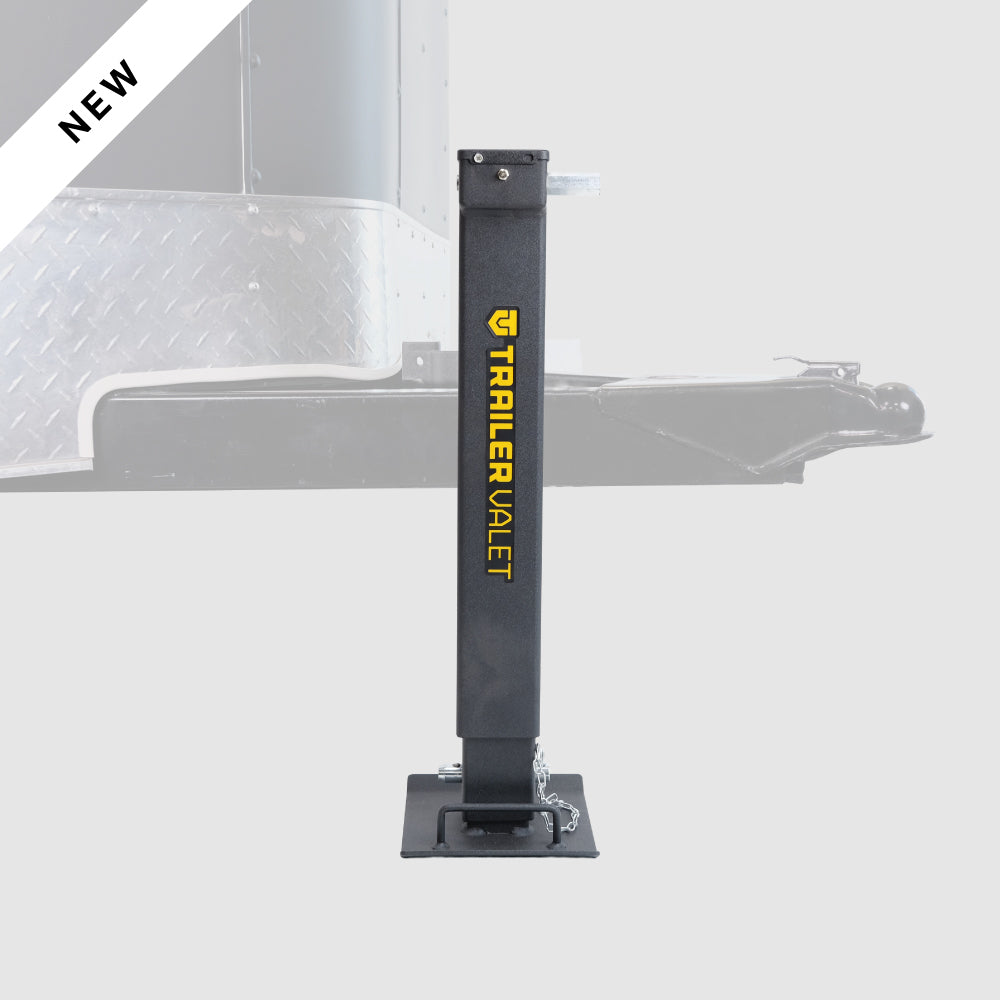

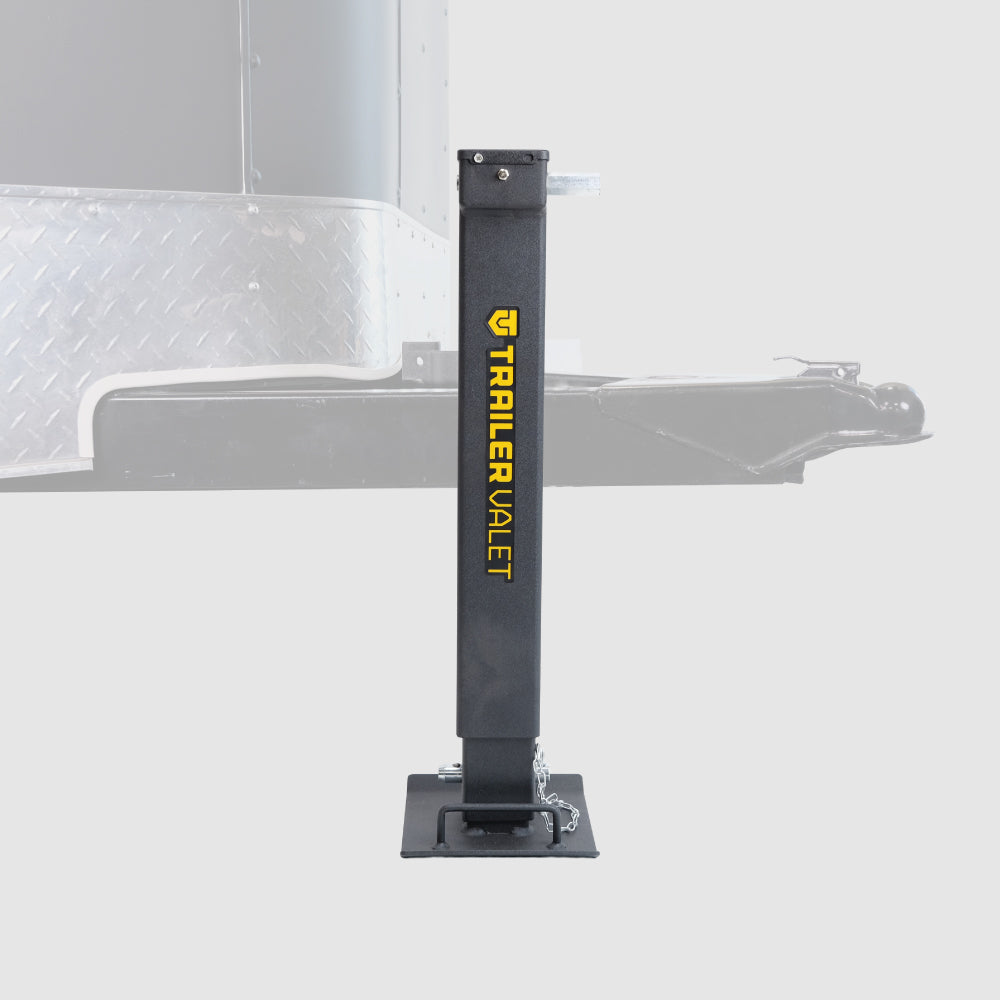

Designed as a direct-weld jack, the JX 10K is intended to be welded directly onto trailers for a secure, permanent installation. Its streamlined configuration makes it a reliable solution for a wide range of trailers without the need to select between multiple mounting positions.

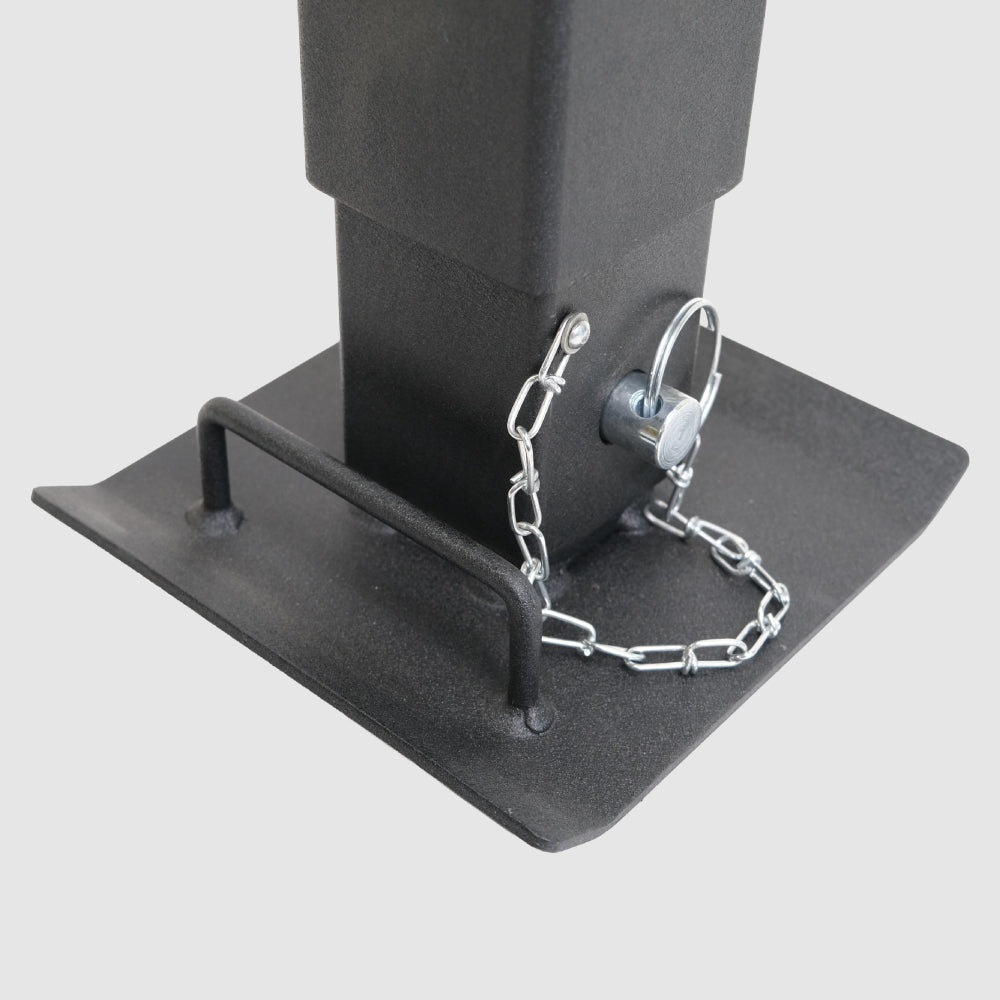

The jack includes a pull-pin drop leg, allowing for quick height adjustment and easy setup during trailer hookup and positioning.

Finished with Trailer Valet’s signature wrinkle black powder coating, the JX 10K is built to withstand demanding jobsite conditions and long-term commercial use.

For trailer manufacturers, fleet operators, and contractors seeking modern lifting efficiency without the cost of hydraulic systems, the Trailer Valet JX 10K Drill-Powered Jack delivers dependable performance and everyday convenience.

For large orders, OEM partnerships, or customization needs, contact our team at sales@trailervalet.com

Caractéristiques et spécifications

Features

  • Part of the JX Drill-Powered Jack Line: Engineered within Trailer Valet’s JX family of drill-powered jacks for modern trailer operation.

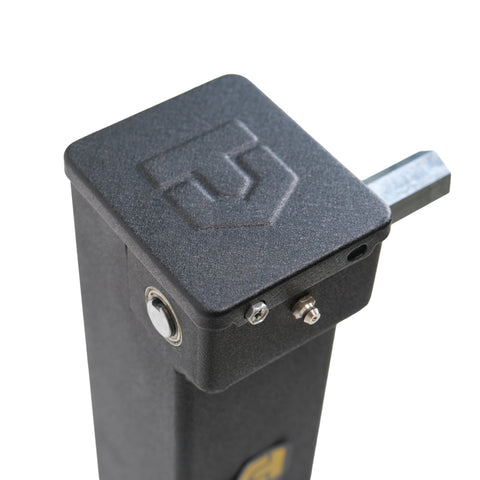

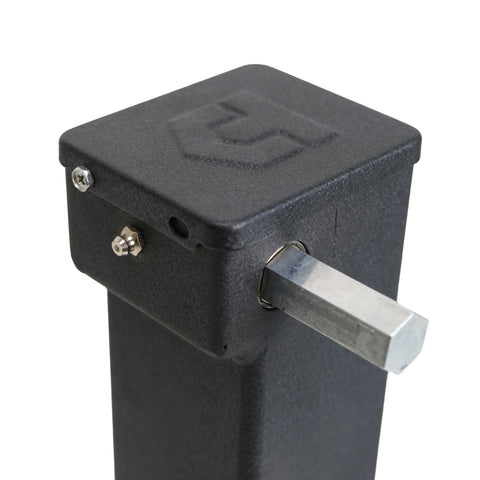

  • Standard 3/4 inch Hex Drill Drive: Works with common drill sockets—no proprietary attachment required.
  • Drill-Powered Efficiency: Lift trailers quickly with a cordless drill, supporting up to 5,000 lbs drill lift capacity.
  • Manual Lift Capacity: 10,000 lbs; Use the crank handle for full lifting capacity when needed.
  • 10,000 lb Static Capacity: Built for heavy-duty trailer applications and consistent performance.
  • Worm Gear Drive System: Provides controlled, torque-efficient operation optimized for drill use.
  • Direct-Weld Installation: Designed to be welded directly onto trailers for a permanent, secure fit.

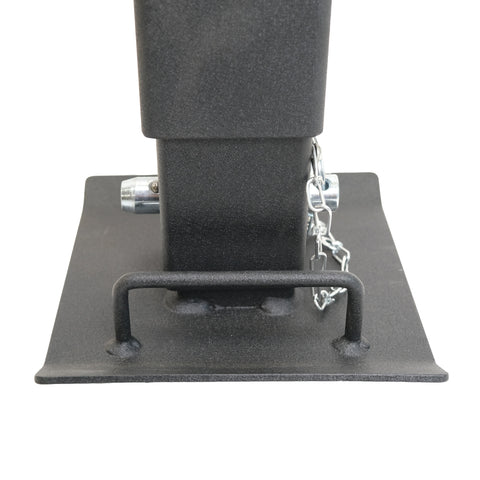

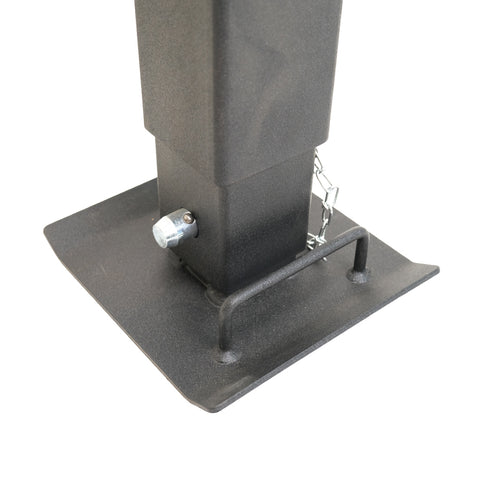

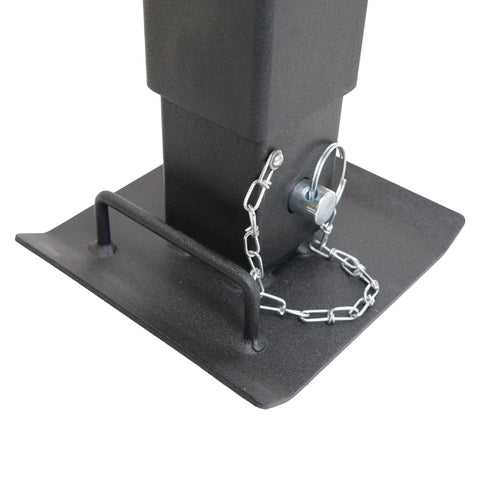

  • Pull-Pin Drop Leg: Allows for quick and simple height adjustment during trailer hookup.
  • Commercial-Grade Construction: Ideal for dump trailers, equipment trailers, and general heavy-duty hauling.
  • Trailer Valet Signature Finish: Wrinkle black powder coating resists corrosion and wear.
  • OEM & Custom Orders Available: For bulk orders or customization, contact sales@trailervalet.com.

Specifications

  • Static Capacity: 10,000 lbs
  • Lift Capacity (Manual Crank) 10,000 lbs
  • Lift Capacity (Drill) 5,000 lbs
  • Power Source 18-24V Drill (not included)
  • Mount Type Weld-on
  • Drive System 15:1 Worm Gear
  • Operation Drill-Powered or Manual Crank
  • Drill Drive Shaft 3/4" Hex
  • Installation Direct-Weld
  • Configuration Single Standard Position
  • Drop Leg Pull-Pin Adjustable
  • Finish Wrinkle Black Powder Coat
  • Material Heavy-Duty Steel Construction
  • Application Commercial / Industrial Trailers
  • Corrosion Protection Zinc nickel plated, Powder-Coated Finish
  • Lift Travel 14.5 in
  • Total Height Adjustment 27.9 in
  • Total Retracted Height 25.6 in
  • Total Extended Height 53.5 in
  • Outer Tube Dimensions 3.15 in OD
  • Inner Tube Dimensions 2.76 in OD
  • Item Dimensions 25.6 H x 7.6 W x 7.3 D
  • Item Weight 39 lbs
  • Shipping Weight 43 lbs
  • Backup Operation Manual hand crank
  • Included Components Jack, Hand Crank Handle
  • Warranty 1-Year Manufacturer’s Limited Warranty
FAQ

What is the lifting capacity of the Trailer Valet JX 10K Drill-Powered Weld-On Jack when using a drill

The jack supports up to 5,000 lbs of lift capacity when operated with a cordless drill for fast and efficient lifting

What is the maximum lifting capacity when using the manual crank handle

The manual crank handle supports up to 10,000 lbs, allowing you to reach the jack’s full lifting capacity when needed

Is this trailer jack compatible with standard drills

Yes, it features a standard 3/4 inch hex drive shaft that works with common drill sockets, so no proprietary attachments are required

What type of installation does this jack require

This jack is designed for direct-weld installation, meaning it is welded directly onto the trailer for a secure and permanent fit

What kind of gear system does the JX 10K jack use

It uses a worm gear drive system, which is optimized for controlled and efficient drill-powered operation

Can this jack be used without a drill

Yes, it includes a manual crank handle so you can operate it without a drill when needed

What types of trailers is this jack suitable for

It is ideal for heavy-duty applications such as dump trailers, equipment trailers, and other commercial or industrial trailers

Does the jack include any features for easier height adjustment

Yes, it includes a pull-pin drop leg that allows for quick and simple height adjustment during trailer hookup

Is the jack built to withstand harsh working conditions

Yes, it features a wrinkle black powder coating that helps resist corrosion and wear in demanding jobsite environments

What comes included with the Trailer Valet JX 10K jack

The package includes the weld-on jack and a manual hand crank handle
Vidéos
Manuels et documentation
TVJX10-DW Operating Manual
Download

TVJX10-DW Quickstart Guide
Download
