What Size Trailer Jack Do You Need For Your Boat

Most boaters spend real money on their rigs and very little thought on the jack that holds the tongue up every time the boat isn't on the water. It's easy to underestimate. It's also one of the more common ways people end up with equipment that technically works but creates problems, a jack that's undersized for the load, too short to clear the ball mount, or incompatible with the trailer frame.

Getting it right comes down to three measurements. Here's how to find them.

1. Know Your Actual Boat Weight

Not the dry weight listed in the brochure. The wet weight, your boat fully loaded with fuel, gear, and anything else that goes in when you head out on the water.

This distinction matters more than most people realize. Marine fuel weighs about 6.3 lbs per gallon. A boat with a 80-gallon tank is carrying over 500 lbs of fuel alone when full. Add rods, tackle boxes, coolers, life vests, electronics, and whatever else lives in the boat, and the wet weight can run meaningfully higher than the factory spec.

Why does this matter for the jack? Because a tongue jack only needs to lift the front of the trailer, not the full weight, but it still needs to be rated for the load. The standard guideline is that tongue weight runs 10 to 15 percent of total trailer weight. So on a 5,000 lb loaded setup, the tongue is putting somewhere between 500 and 750 lbs of downward force on the jack. Your jack needs to be rated to handle that, and then some. Buying to the minimum rating means you're running at the edge of capacity every time.

Use wet weight when sizing the jack. Be generous with your estimate if you're uncertain.

2. Know Your Trailer Frame Dimensions

This is the step people skip, and it's the one that sends them back to the store.

Most standard trailer jacks are designed to mount on frames up to 3 inches wide and 5 inches tall. A lot of boat trailers fall within those dimensions. But trailers on the larger end, heavier boats, dual-axle setups, wider frames, sometimes don't. If your frame is outside standard dimensions and you buy a fixed-bracket jack, it won't fit.

Before purchasing, take a tape measure to your trailer frame at the point where the jack bracket will mount, typically near the tongue. Write down both the width and height of the frame at that location. Then confirm that the jack you're considering accommodates those measurements, either with a standard bracket or an adjustable one.

It takes two minutes. It eliminates the most avoidable purchase mistake in this category.

3. Know Your Required Lift Height

A jack that can't lift the tongue high enough to clear your ball mount is useless for hitching and unhitching. Measuring for the right lift height is straightforward.

Start by measuring how high your tow vehicle's hitch ball sits off the ground. For most trucks, this falls somewhere between 14 and 20 inches depending on the ball mount drop or rise. Then add 4 to 5 inches on top of that to give yourself clearance when hitching and unhitching on uneven ground.

That total is your minimum lift height. Make sure the jack you choose can reach it,  accounting for the combination of drop leg extension and inner tube travel that most jacks use to achieve their full range.

If you have a lifted truck, a tall ball mount, or you frequently launch at ramps with uneven terrain, measure conservatively on the high side. Running out of lift height when you're trying to hitch at the ramp is a frustrating problem that a larger jack solves permanently.

Manual Cranking vs. Drill-Powered

Once you have your three numbers, tongue weight capacity, bracket size, and lift height,  the other decision is how you want to operate the jack.

Manual tongue jacks work. They've been the standard for decades. But if you're launching and retrieving your boat more than a handful of times per season, the time spent cranking adds up, and the effort on heavier trailers is real.

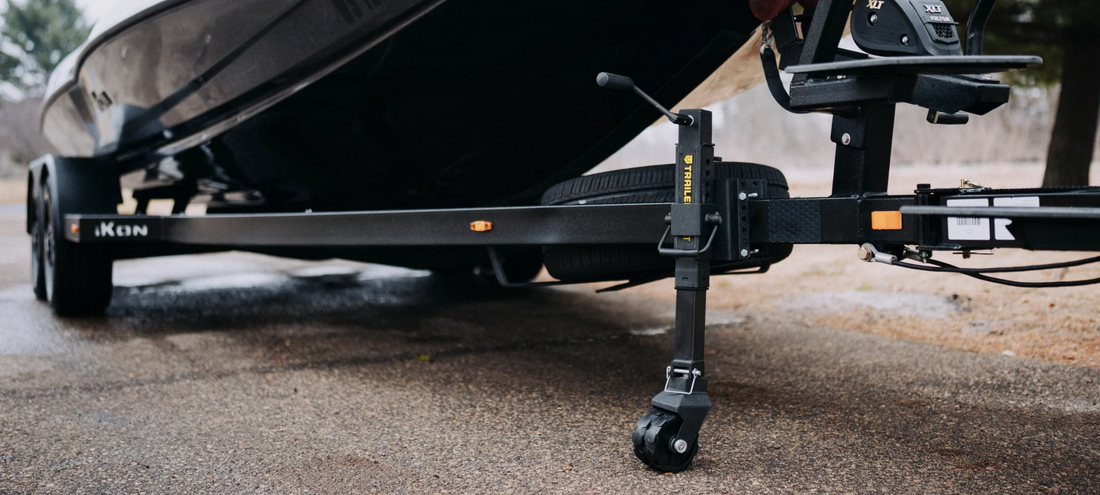

Drill-powered jacks like the Trailer Valet JX Series replace the hand crank with a standard 18-24V drill. Attach the drill, pull the trigger, and the jack moves. What takes two minutes of cranking by hand takes about fifteen seconds with a drill. On a boat trailer that gets used regularly, that difference compounds into a meaningful time and effort saving across a season.

The JX2 handles tongue weights up to 2,000 lbs, covering most smaller fishing boats, aluminum boats, and personal watercraft trailers. The JX5 steps up to 5,000 lbs for heavier bass boats, mid-size fiberglass, and larger recreational vessels. Both are finished with a powder-coated wrinkle black coating for corrosion resistance, relevant for anything that spends regular time around water.

The Short Version

Three numbers determine which boat trailer jack you need:

Tongue weight capacity — calculate 10 to 15 percent of your wet trailer weight, then buy a jack rated above that number.

Bracket size — measure your trailer frame width and height where the jack mounts, and confirm compatibility before purchasing.

Lift height — measure your hitch ball height, add 4 to 5 inches, and make sure the jack reaches that total.

Get those three right and you'll have a jack that fits the trailer, handles the load, and clears the ball mount every time. Everything else is secondary.
