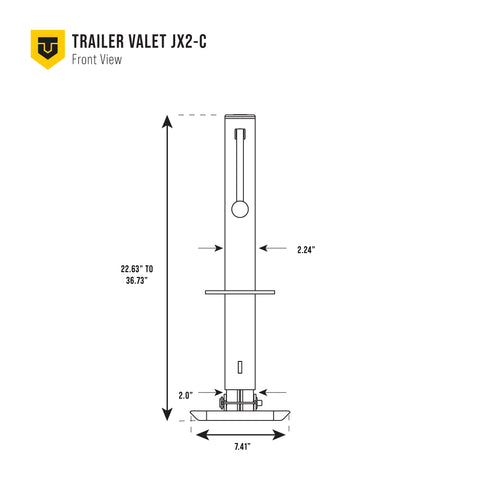

JX2-C-Dimensional-Drawings-Front_1000x1000

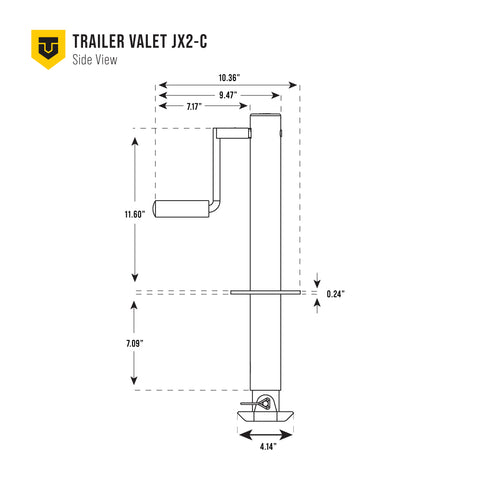

JX2-C-Dimensional-Drawings-Side_1000x1000

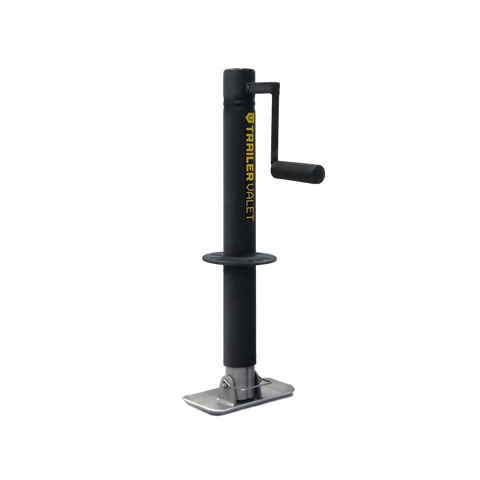

Refurbished Trailer Valet JX 2K Center-Mount Jack

$75.00; $75.00
Unit price: per

The Trailer Valet JX 2K Center is a versatile manual jack with a 2,000 lbs static capacity and lift capabilities of 1,200 lbs by hand or 600 lbs with a 20-24V drill using the included Drill Attachment. Its patented gear design maximizes efficiency while minimizing heat, and the weather-resistant shield with a durable black powder coating ensures long-lasting performance. Upgrade your trailer jack, save time and effort, and get moving with ease. JX Wheel attachment sold separately.

The Trailer Valet JX 2K Center is a manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment.

It has a static capacity of 2,000 lbs and a lift capacity of 1,200 lbs with the hand crank and 600 lbs lift capacity with the drill. Its patented gear material composition delivers maximum efficiency while reducing heat retention. The JX 2K Center comes with weather-resistant shield protection, and is topped with our signature wrinkle black powder coating so that you can go further, longer.

It’s time to MOVE FORWARD and replace the standard manual jack on your trailer! Power it up and save time, effort, and hassle and get to what you love most. Comes standard with foot plate and a Trailer Valet Drill Attachment. JX Wheel attachment sold separately. (JX2-C - 1:1 Gear Ratio, 2,000 lbs. static capacity) (JX5-C - 12:16 Gear Ratio, static 5,000 lbs. capacity.)

If you have any inquiries about if this product will work for your specific trailer or environment, please reach out to our Support Team at support@trailervalet.com

All units are refurbished personally by the Trailer Valet team to ensure optimal performance and are functionally identical to a brand new manufactured unit. FREE SHIPPING and a 1-year limited warranty are included with your purchase. All refurbished purchases are FINAL SALE. Buying used aids in our commitment to the environment by making the most of our materials – thank you for considering purchasing a refurbished unit! Feel free reach out to us at support@trailervalet.com or call us at 844-846-9344 with any questions.

Features & Specs

Features

Includes Trailer Valet Drill Attachment (TVDA), footplate, and hand crank

Zinc-rich coating, nickel plating, and finished with our signature wrinkle black powder coating

Patented Trailer Valet Gear System (1:1 Ratio)

Patented gear material composition delivers maximum efficiency while reducing heat retention

Weather resistant shield protection

Manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment

Center mount system

Compatible with JX Jack Wheel Attachment (TVJXMW), sold separately

Retracted height: 23in, Extended height: 37in, Total travel: 14in

Static Capacity (with footplate): 2,000 lbs Static Capacity (with wheel): 1,200 lbs Lift Capacity: 1,200 lbs Lift Capacity w/ Drill: 600 lbs

Outer tube diameter: 57mm, Inner tube diameter: 51mm

Clearance (from bottom of bracket to top of jack): 13.5in

Total Trailer Lift: 9.5in to 23.5in

Specifications

Dynamic Lift Capacity Lbs: 1200

Static Tongue Weight lbs: 2000

Static Weight Capacity with Footplate Lbs: 2000

Mounting Type: Center

Item Height Inches: 22.5

Item Width Inches: 5

Item Depth Inches: 5

Item Net Weight lbs: 13

Warranty: 1 Year Manufacturers Limited Warranty

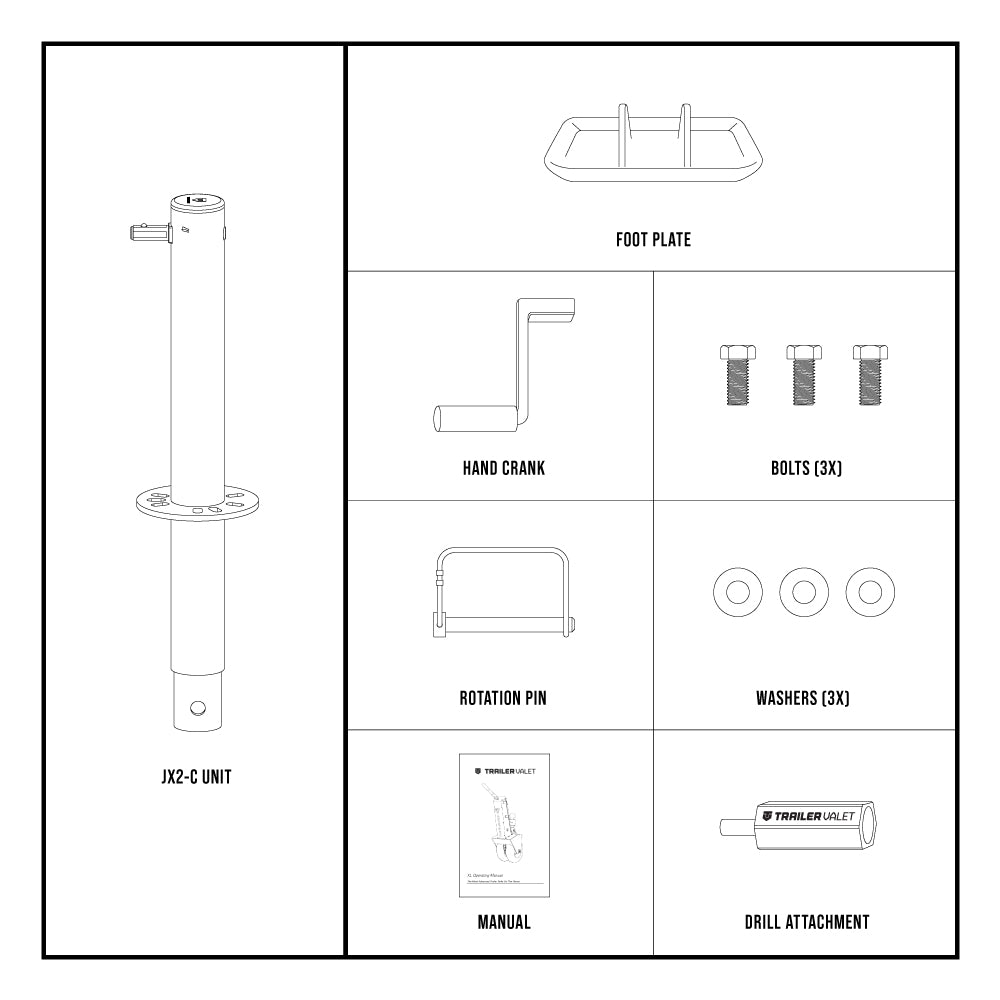

Includes: Includes Jack, Drill attachment, footplate, and hand crank

FAQ

How do you recommend propping up the trailer for installation?

A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16-18” of height to properly install the JX.

Can the center jack (JXC) be welded rather than bolted?

Yes, at your discretion. But note it will void any warranty and return.

Do I need to grease the gears before use?

No, the JX will come already lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual.

What is the load capacity of the JX?

JX2-C & JX2-S: 1,200 lb standard lift, 600 lb lift with power drill, and 2,000 lb static capacity. JX5-C & JX5-S: 1,600 lb standard lift, 800 lb lift with power drill, and 5,000 lb static capacity.

What is the recommended drill torque setting?

We recommend keeping the torque setting as low as possible while still lifting the trailer. A heavier load will require a higher torque setting.

Does the JX come with a caster wheel?

Each JX comes standard with a foot plate. Jack Wheels are available as an option (TVJXMW)

Does the JX Center Mount come with bolts for installation?

Yes. All JX Center jacks come with three bolts and lock washers for installation to your trailer frame.

What type of Mount Bracket comes with the JX2-S and JX5-S?

The JX2-S comes with a spring loaded pull pin swivel bracket for a Max Frame Size Fit: 4.75 in high, 3.75 in deep . The JX5-S comes with a same size pipe mount swivel bracket and stow pin. (Only the JX5-S can also use the TVJLMB (Sold Seperately) for frames from 4.75 inches to 5.75 inches) Note: both jacks need at least 8” of clearance to install.
