How do you recommend propping up the trailer for installation?
A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16-18” of height to properly install the JX.
Can the center jack (JXC) be welded rather than bolted?
Yes, at your discretion. But note it will void any warranty and return.
Do I need to grease the gears before use?
No, the JX will come already lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual.
What is the load capacity of the JX?
JX2-C & JX2-S: 1,200 lb standard lift, 600 lb lift with power drill, and 2,000 lb static capacity. JX5-C & JX5-S: 1,600 lb standard lift, 800 lb lift with power drill, and 5,000 lb static capacity.

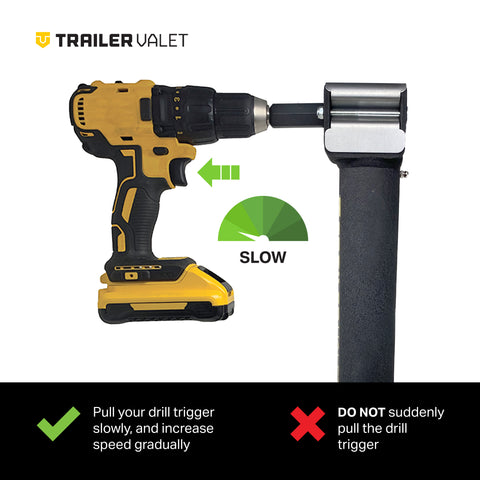

What is the recommended drill torque setting?
We recommend keeping the torque setting as low as possible while still lifting the trailer. A heavier load will require a higher torque setting.

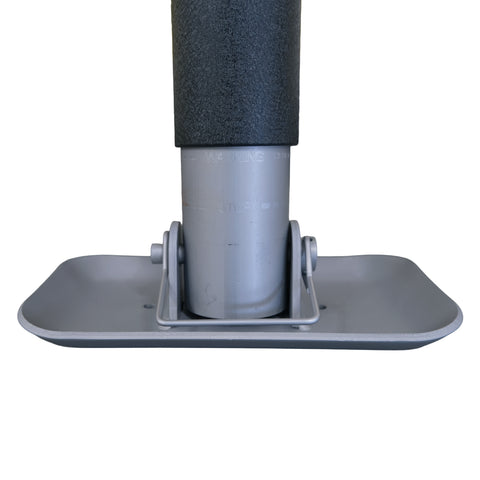

Does the JX come with a caster wheel?
Each JX comes standard with a foot plate. Jack Wheels are available as an option (TVJXMW)

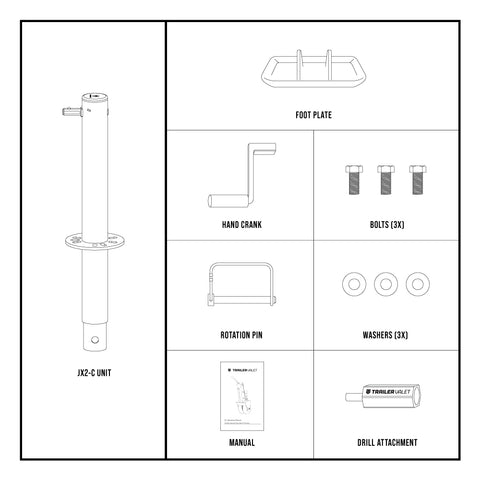

Does the JX Center Mount come with bolts for installation?
Yes. All JX Center jacks come with three bolts and lock washers for installation to your trailer frame.
What type of Mount Bracket comes with the JX2-S and JX5-S?
The JX2-S comes with a spring loaded pull pin swivel bracket for a Max Frame Size Fit: 4.75 in high, 3.75 in deep . The JX5-S comes with a same size pipe mount swivel bracket and stow pin. (Only the JX5-S can also use the TVJLMB (Sold Seperately) for frames from 4.75 inches to 5.75 inches) Note: both jacks need at least 8” of clearance to install.
What is the best position for the JX5-S Mount Bracket to be installed?
The connection point should be in the low position (recommended). However, it can be flipped to the high position if needed.
How much does the JX weigh?
JX2-S: 23 lbs JX5-S: 25 lbs JX2-C: 14 lbs JX5-C: 14 lbs
Can the JX be submerged in water?
The JX can be submerged in water for brief periods. However, we highly recommend rinsing the JX with fresh water after heavy salt water exposure.
Can the JX be stored outdoors?
Yes, the JX has three layers of weather protection and can be stored outdoors with your trailer.

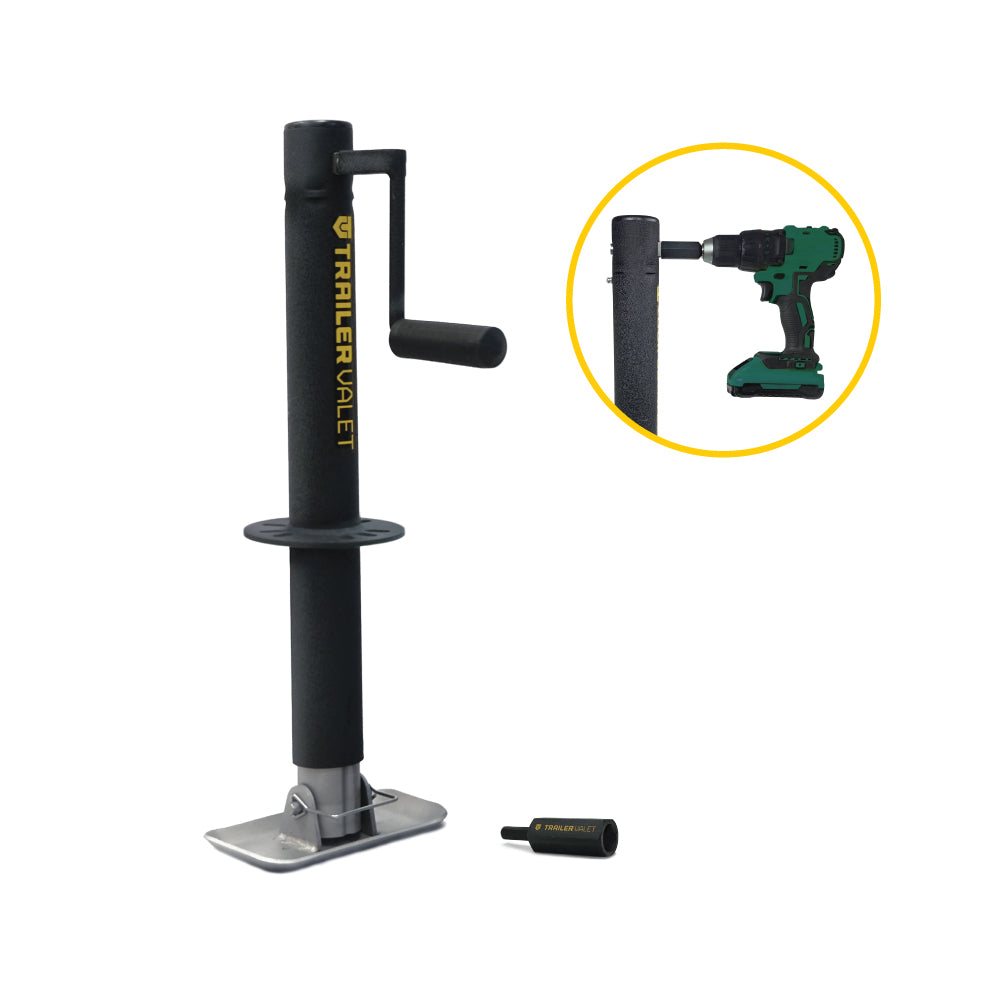

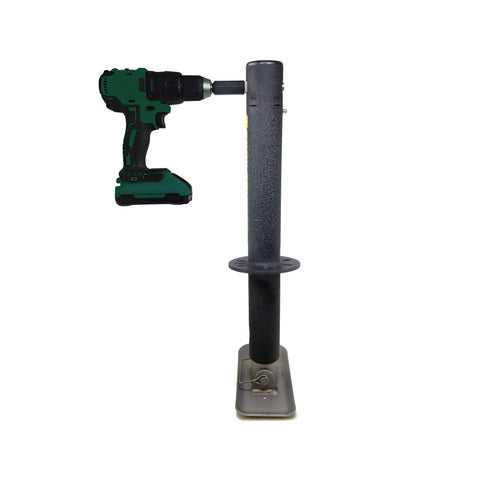

What kind of drill should I use with the JX?
Any 20V-24V compact non-impact drill can be used with the Trailer Valet Drill Attachment.
