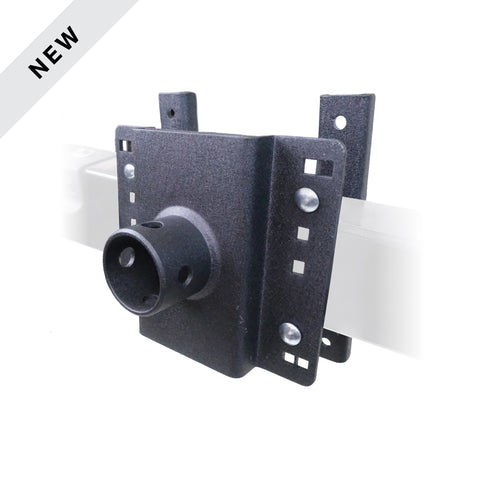

Trailer Valet Full Range Mounting Bracket – durable bracket system for trailer jacks - TVFRMB
Angled view of Trailer Valet mounting bracket with bolts and clamps for secure install - TVFRMB2

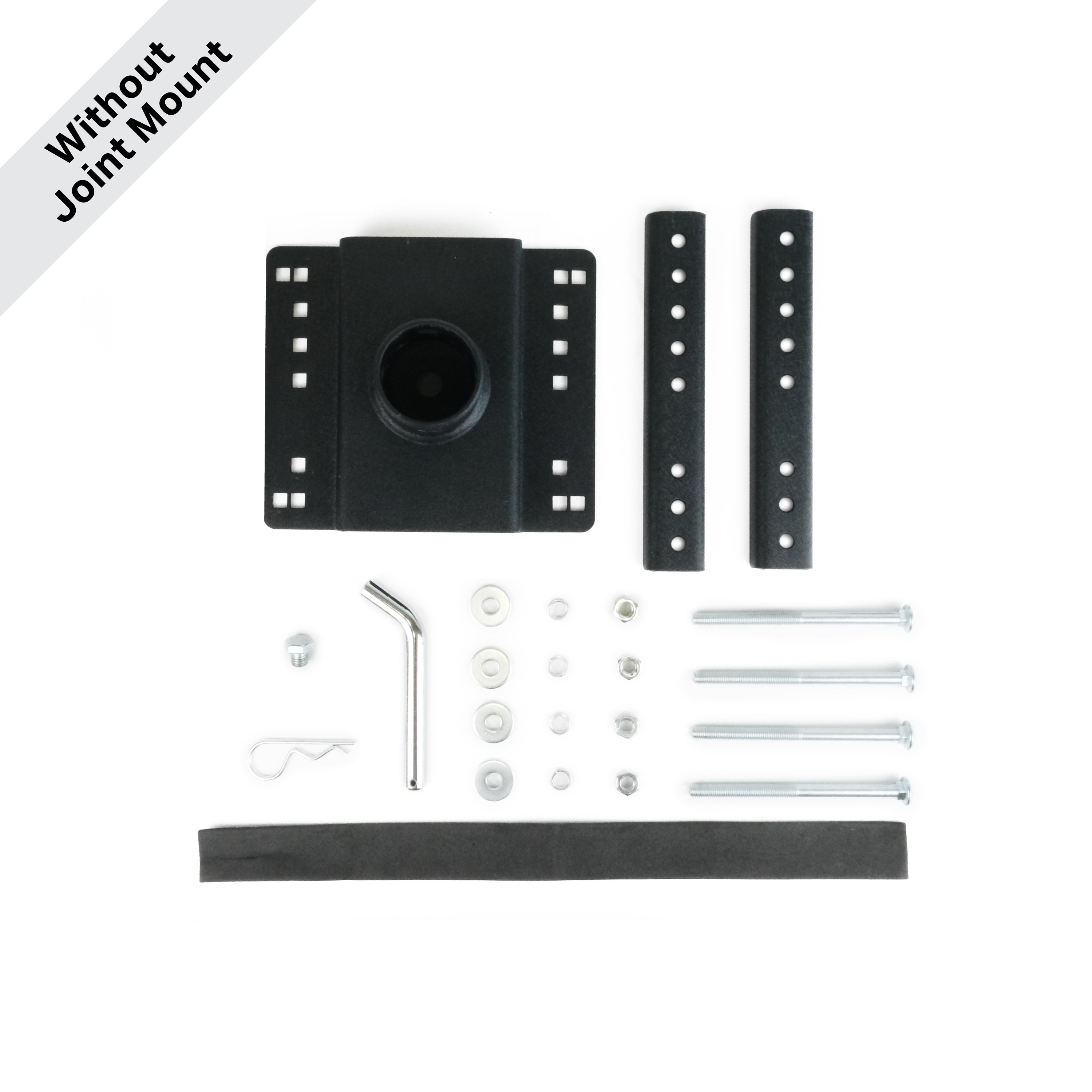

Trailer Valet mount bracket shown without joint – adjustable hitch accessory component - TVFRMB

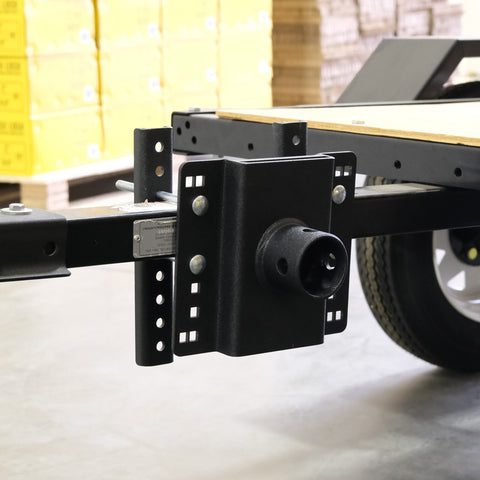

Lifestyle image showing Full Range Mount Bracket installed on utility trailer - TVFRMB
Trailer Valet mount bracket with joint – enhanced articulation for varied mounting needs - TVFRMB

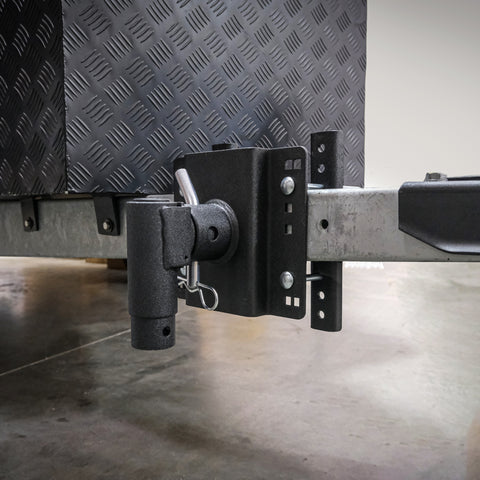

Lifestyle view of Full Range Bracket in use – showing rugged trailer mount adaptability - TVFRMB

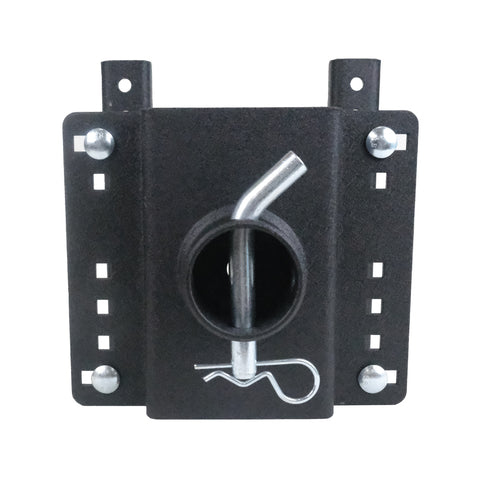

Front angle of Trailer Valet bracket with bolts and clamps for solid attachment - TVFRMB

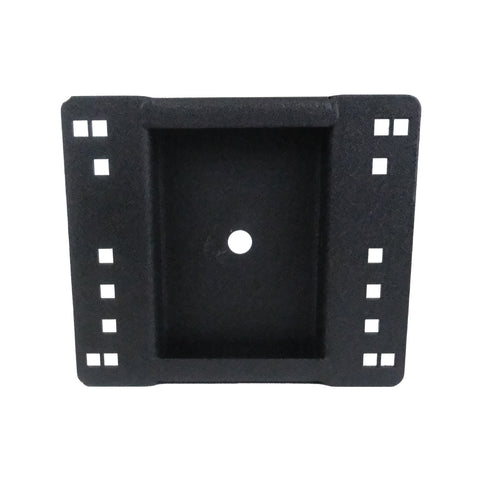

Rear view of Full Range Mounting Bracket – compact form and strong support structure - TVFRMB
Trailer Valet mounting bracket comparison chart – XL, 5X, and RVR styles - TV5XMB

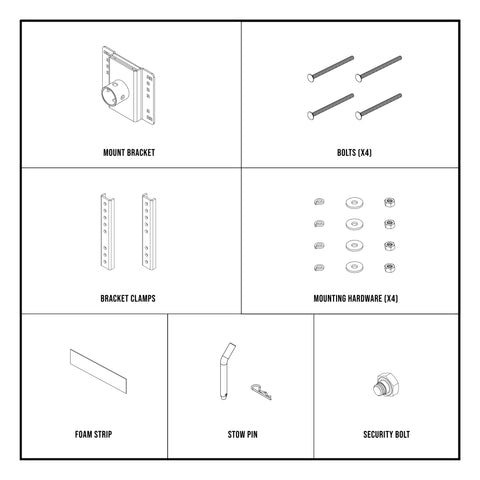

What’s in the box – Trailer Valet Full Range Bracket with clamps and hardware - TVFRMB

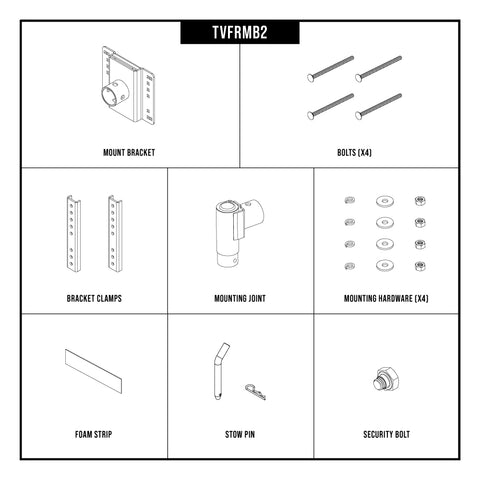

What’s included with Trailer Valet FRMB2 – jointed mount bracket and all accessories - TVFRMB

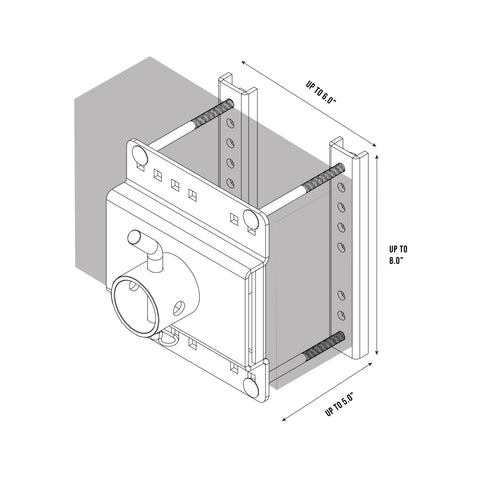

Horizontal diagram of Trailer Valet Full Range Mount – bracket orientation explained - TVFRMB

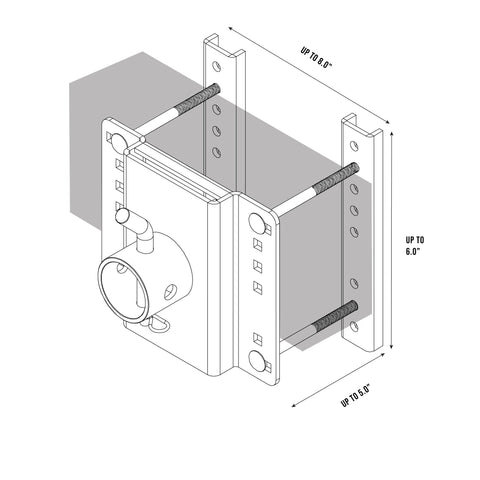

Vertical configuration diagram – Trailer Valet bracket installation options - TVFRMB

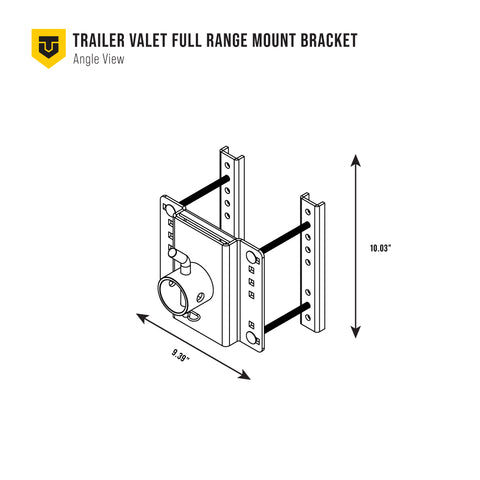

Angled dimensional drawing – Trailer Valet mount bracket engineering details - TVFRMB
Top-down view diagram – Trailer Valet bracket bolt pattern and structure overview - TVFRMB

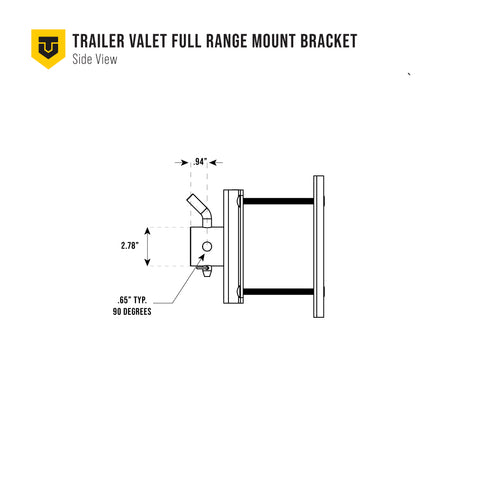

Side profile tech drawing – Trailer Valet full range mount bracket measurements - TVFRMB
Trailer Valet Full Range Mounting Bracket – durable bracket system for trailer jacks - TVFRMB
Angled view of Trailer Valet mounting bracket with bolts and clamps for secure install - TVFRMB2
Trailer Valet mount bracket shown without joint – adjustable hitch accessory component - TVFRMB
Lifestyle image showing Full Range Mount Bracket installed on utility trailer - TVFRMB
Trailer Valet mount bracket with joint – enhanced articulation for varied mounting needs - TVFRMB
Lifestyle view of Full Range Bracket in use – showing rugged trailer mount adaptability - TVFRMB
Front angle of Trailer Valet bracket with bolts and clamps for solid attachment - TVFRMB
Rear view of Full Range Mounting Bracket – compact form and strong support structure - TVFRMB
Trailer Valet mounting bracket comparison chart – XL, 5X, and RVR styles - TV5XMB
What’s in the box – Trailer Valet Full Range Bracket with clamps and hardware - TVFRMB
What’s included with Trailer Valet FRMB2 – jointed mount bracket and all accessories - TVFRMB
Horizontal diagram of Trailer Valet Full Range Mount – bracket orientation explained - TVFRMB
Vertical configuration diagram – Trailer Valet bracket installation options - TVFRMB
Angled dimensional drawing – Trailer Valet mount bracket engineering details - TVFRMB
Top-down view diagram – Trailer Valet bracket bolt pattern and structure overview - TVFRMB
Side profile tech drawing – Trailer Valet full range mount bracket measurements - TVFRMB

Full Range Mounting Bracket

$82.50
$82.50

The Full Range Mount Bracket is designed for larger trailers, fitting frames up to 5 inches wide and 8 inches tall while maintaining a sleek, low-profile design. Built for strength and convenience, it features square zinc-plated bolts for quick installation and is coated with Trailer Valet’s signature wrinkle black powder coating for rugged dependability. Compatible with various Trailer Valet products, including trailer movers and the RVR Series, it provides an independent connection point for faster coupling. The bracket includes all necessary mounting hardware and can easily transfer between trailers, making it a versatile and long-lasting solution for heavy-duty towing.
BUY AT etrailer
Description

Finally, a bracket for wider and taller trailer frames - the Full Range Mount Bracket gives large trailer owners better access to our innovative, game-changing products. It fits trailer frames up to 5” deep and 8” tall while maintaining a thin, sleek profile. From the square, zinc plated bolts providing quick installation to our signature wrinkle black powder coating - no details were overlooked in ensuring its rugged dependability.

We designed the Full Range Mount Bracket to be an investment for those wanting to take full advantage of our lineup. You get a bracket that works with various Trailer Valet products including our renowned trailer movers and RVR Series. The Full Range Mount Bracket provides an independent connection point to our trailer movers, so attaching your coupler to the hitch ball is faster. The Full Range Mount Bracket comes with all mounting hardware and easily transfers to other trailers as needed.

Requires elbow piece (Mounting Joint) to connect XL, MV Pro, and RVR units

The Full Range Mount Bracket is compatible with the Trailer Valet XL, MV Pro, RVR Series with an with utilization of a Mounting Joint

The 5X and the JX5-S connects directly to the Jack



If you have any inquiries about if this product will work for your specific trailer or environment, please reach out to our Support Team at support@trailervalet.com

Features & Specs

Features

  • Easily transfers to other trailers
  • Square, zinc-plated steel bolts for easy installation
  • Signature wrinkle black powder coating
  • Thinner, sleek profile
  • Works with 5X, XL, MV Pro, RVR Series, and JX5-S
  • Fits trailer frames up to 5”x8”
  • Front Bracket - 8.03” tall X 9.39” wide
  • Rear Brackets - 10.03” tall X 9.39” wide
  • (4) M10 x 150 mm carriage bolts
  • Requires elbow to connect XL, MV Pro, and RVR units

Specifications

  • Mounting Type: Side
  • Item Height Inches: 10
  • Item Width Inches: 9.4
  • Item Depth Inches: 9
  • Item Net Weight lbs: 13
  • Warranty: 1 Year Manufacturers Limited Warranty
  • Includes: Mount Bracket, 4 X Bolts, 2 x Bracket Clamps, 4 X Mounting Hardware, Foam Strip, Stow Pin, Locking Bolt
FAQ

What is the Trailer Valet Full Range Mount Bracket used for?

The Full Range Mount Bracket is designed to fit wider and taller trailer frames, providing a secure connection for various Trailer Valet products, including trailer movers and the RVR Series. It ensures a quick, reliable, and rugged setup for heavy-duty towing.

What type of trailers is this bracket compatible with?

It fits trailer frames up to 5 inches wide and 8 inches tall, making it ideal for larger trailers and heavy-duty towing setups.

What Trailer Valet models are compatible with the Full Range Mount Bracket?

The Full Range Mount Bracket works with the Trailer Valet XL, MV Pro, RVR Series, and 5X models. However, the XL, MV Pro, and RVR Series require a mounting joint for compatibility. The 5X and JX5-S models can connect directly to the bracket.

What makes the Full Range Mount Bracket different from other brackets?

It’s specifically designed for larger frames while maintaining a sleek and thin profile. The use of square zinc-plated steel bolts ensures quick installation and a secure fit.

What are the dimensions of the Full Range Mount Bracket?

Front Bracket: 8.03 inches tall x 9.39 inches wide, Rear Bracket: 10.03 inches tall x 9.39 inches wide, Item Height: 10 inches, Item Width: 9.4 inches, Item Depth: 9 inches, Weight: 13 lbs

Is the bracket easy to install?

Yes, the bracket includes square zinc-plated steel bolts for quick and easy installation. Basic hand tools are sufficient for setup.

Can the bracket be easily transferred to other trailers?

Yes, the bracket is designed to be easily removed and reinstalled on different trailers for added convenience.

What type of mounting does the bracket use?

The bracket features a side-mounting design for a secure fit and easy access.

Is the Full Range Mount Bracket resistant to rust and corrosion?

Yes, it is coated with Trailer Valet’s signature wrinkle black powder coating, providing enhanced protection against rust, wear, and harsh weather conditions.

How does the mounting joint improve performance?

The mounting joint allows the XL, MV Pro, and RVR Series models to connect securely to the bracket, ensuring a stable and secure connection during use.

Will the bracket stay secure during towing and maneuvering?

Yes, the bracket is designed for rugged dependability and ensures a tight fit even under heavy towing conditions.

What is included with the Full Range Mount Bracket?

The package includes: 1 Mounting Bracket, 4 M10 x 150 mm carriage bolts, 2 Bracket Clamps, 4 Mounting Hardware Pieces, Foam Strip, Stow Pin, Locking Bolt

Do I need any additional parts to install the bracket?

If you are attaching an XL, MV Pro, or RVR Series unit, you will need a mounting joint (sold separately with the TVFRMB2).

How long does installation take?

Installation typically takes 10–15 minutes, depending on your trailer type and experience level.

Can the bracket be used for road towing?

Yes, the bracket is designed to provide a secure and stable connection for both maneuvering and towing applications.

Does the Full Range Mount Bracket come with a warranty?

Yes, it includes a one-year manufacturer’s limited warranty for peace of mind and product reliability.

Can I purchase additional mounting brackets separately?

Yes, additional brackets are available for purchase if you need to equip multiple trailers for quick transfer of your Trailer Valet.
